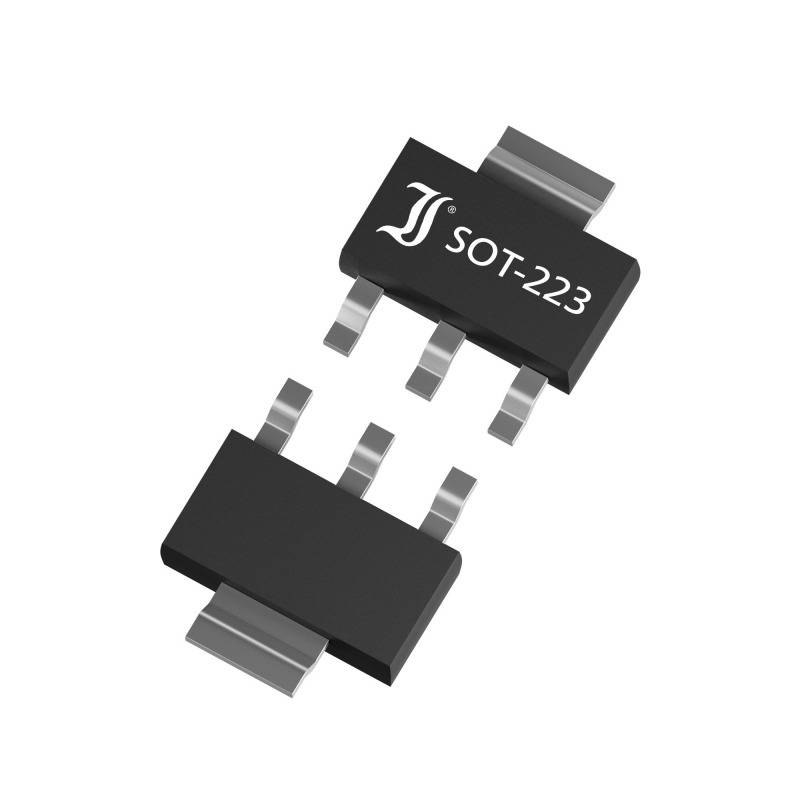

A black SOT-223 semiconductor chip with silver contacts, a typical package for mounting transistors on printed circuit boards.

A black SOT-223 semiconductor chip with silver contacts, a typical package for mounting transistors on printed circuit boards.

Image similar

Diotec

Product type

Transistor (BJT) - Discrete

Enclosure

SOT 223

Type

PNP

Collector current

500 mA

Collector emitter voltage U(CEO)

-400 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon, 8 Feb 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 40

Total (€ 0.62326 / piece)

€ 24.93

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Transistor (BJT) - Discrete

Our service for you

Technical specifications

Type SMDSOT-223 housingCollector emitter voltage - VCEO -400 VDC collector current - IC: 500 mAPolarity - pin PNPJunction temperature - Tjmax 150 °CPower loss - Ptot 1,500 W.Collector base current ratio - hfe: 160VCE 10 VIC 10 mACollector saturation voltage - VCEsat 500 mVIC 50 mAIB 5 mATransit frequency - ft:50 MHzIC 10 mAVCE 20 VF 100 MHz

Type: PZTA94

Product type: Transistor (BJT) - Discrete

Enclosure: SOT 223

Manufacturer: Diotec

Type: PNP

Collector current: 500 mA

Collector emitter voltage U(CEO): -400 V

Collector-emitter saturation voltage (max.): 500 mV

Power (max) P(TOT): 1.5 W

DC current gain (hFE): 160

Transit frequency f(T): 100 MHz

Mounting type: Surface-mount

RoHS-compliant: Yes

Content: 1 pc(s)

Operating temperature (max.): 150 °C
