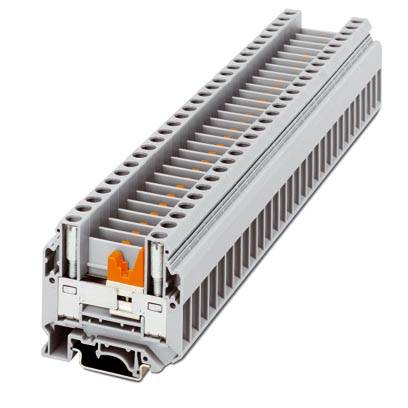

Disconnect terminal block URTK-BEN 0309112 Phoenix Contact
EAN:
Part number:
Item no:
Product type
N terminal
Connection
Screws
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
16 mm²
Nominal current - rounded value
70 A
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number (Package size 50 pc(s))
Total (€ 9.73 / piece)
€
Highlights & Details
Disconnect terminal block URTK-BEN
- URTK-BEN
Technical specifications
- Product type
N terminal
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
16 mm²
- AWG (min.)
20
- AWG max.
6
- Clamp width
10.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
70 A
- Nominal current - rounded value
70 A
- Nominal voltage
500 V
- Manufacturer part #
0309112
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
URTK-BEN
- Dim
(L x W x H) 61 x 10.2 x 58.5 mm
- Width
10.2 mm
- Height
58.5 mm
- Length
61 mm
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
Documents & Downloads
Datasheet
Datasheet 718632 Disconnect terminal block URTK-BEN 0309112 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 718632 Disconnect terminal block URTK-BEN 0309112 Phoenix Contact
Description
Disconnect terminal block, Connection method: Screw connection, Cross section: 0.5 mm² -16 mm² , AWG: 20 - 8, Width: 10.2 mm, Mounting type: NS 35/7,5, NS 35/15, NS 32, Color: gray
