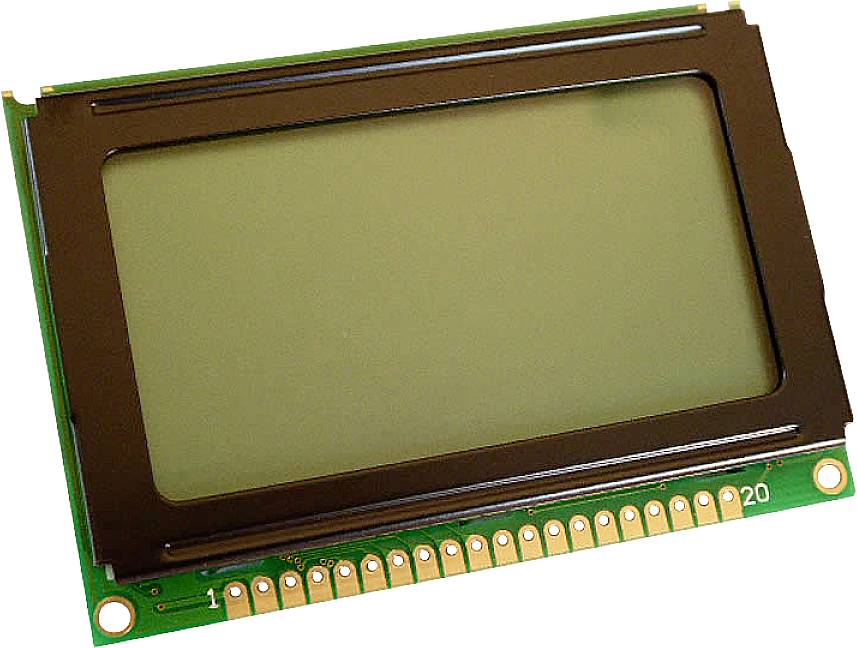

Display Elektronik LCD Black White 128 x 64 Pixel (W x H x D) 75 x 52.7 x 7 mm DEM128064BFGH-PW
EAN:
Part number:
Item no:
Product type
LCD
Display resolution
128 x 64 Pixel
Font colour
Black
Background colour
White
Lighting type
LED
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 1.06
€ 23.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
Highlights & Details
DISPLAY ELECTRONIC LCD graphics module FSTN monochrome with backlight
- High-contrast LCD FSTN display
- White LED/CCFL lighting
- Connection directly to 8-bit data bus or SPI
- Supply voltage, type. +5.0V
- Operating temperature range -20...+70°C.
Technical specifications
- Product type
LCD
- Type
DEM128064BFGH-PW
- Controller type
SBN6400G + SBN0064G
- Display resolution
128 x 64 Pixel
- Screen size diagonal (cm)
6.1 cm
- Screen size diagonal (inches)
2.4 inch
- Light area (width)
60 mm
- Light area (height)
32.6 mm
- Font colour
Black
- Background colour
White
- Lighting type
LED
- Type (display)
FSTN
- Operating voltage
5 V DC
- Dim
(W x H x D) 75 x 52.7 x 7 mm
- Depth
7 mm
- Height
52.7 mm
- Width
75 mm
- RoHS-compliant
Yes
- Max. temperature
+70 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 2238793 Display Elektronik LCD Black White 128 x 64 Pixel (W x H x D) 75 x 52.7 x 7 mm DEM128064BFGH-PW
User & Safety Instructions
User & Safety Instructions 2238793 Display Elektronik LCD Black White 128 x 64 Pixel (W x H x D) 75 x 52.7 x 7 mm DEM128064BFGH-PW
Description
Display Elektronik is a well-known German manufacturer of liquid crystal displays (LCD).
Display Elektronik GmbH was founded in 1984. The company quickly gained a first-class reputation as a producer of high-quality standard and customer-specific displays. The products of the manufacturer are used in telecommunications, medical electronics, measurement and control technology, household, automotive technology and much more.
The production has Class 1000 and Class 100 clean room conditions and a fully automated LCD production.
Since 1996, Display Elektronik has been certified according to DIN EN ISO 9001:2015.
This text is machine translated.
Display Elektronik GmbH was founded in 1984. The company quickly gained a first-class reputation as a producer of high-quality standard and customer-specific displays. The products of the manufacturer are used in telecommunications, medical electronics, measurement and control technology, household, automotive technology and much more.
The production has Class 1000 and Class 100 clean room conditions and a fully automated LCD production.
Since 1996, Display Elektronik has been certified according to DIN EN ISO 9001:2015.
This text is machine translated.
Features
- High-contrast LCD FSTN display
- White LED/CCFL illumination
- Direct connection to 8-bit data bus or SPI
- Supply voltage, type. +5.0V
- Operating temperature range -20...+70°C.
