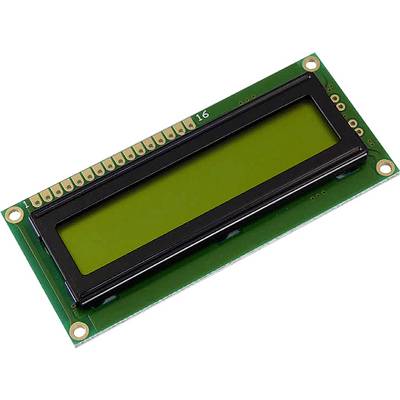

Display Elektronik LCD (W x H x D) 80 x 36 x 6.6 mm
EAN:
Part number:
Item no:
Product type
LCD
Lighting type
None
Digit height
5.95 mm
Operating voltage
5 V DC
Height
36 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 8.39
3
6% = € 0.47
€ 7.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 8.39 / piece)
€ 8.39
plus VAT.
Highlights & Details
Electronic display STN 16x1 black/yellow refl.
- High-contrast LCD STN display
- Connects to 4- or 8-bit data bus
- Supply voltage, type. +5.0V
- Operating temperature range -20...+70°C.
Technical specifications
- Product type
LCD
- Controller type
HD44780 Compatible
- Light area (width)
63.5 mm
- Light area (height)
13.8 mm
- Lighting type
None
- Type (display)
STN
Dot-matrix
- Character style
16 x 1
- Digit height
5.95 mm
- Operating voltage
5 V DC
- Dim
(W x H x D) 80 x 36 x 6.6 mm
- Depth
6.6 mm
- Height
36 mm
- Width
80 mm
- RoHS-compliant
Yes
- Max. temperature
+70 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 2238777 Display Elektronik LCD (W x H x D) 80 x 36 x 6.6 mm
User & Safety Instructions
User & Safety Instructions 2238777 Display Elektronik LCD (W x H x D) 80 x 36 x 6.6 mm
Description
Display Elektronik is a well-known German manufacturer of liquid crystal displays (LCD).
Display Elektronik GmbH was founded in 1984. The company quickly gained a first-class reputation as a producer of high-quality standard and customer-specific displays. The products of the manufacturer are used in telecommunications, medical electronics, measurement and control technology, household, automotive technology and much more.
The production has Class 1000 and Class 100 clean room conditions and a fully automated LCD production.
Since 1996, Display Elektronik has been certified according to DIN EN ISO 9001:2015.
This text is machine translated.
Display Elektronik GmbH was founded in 1984. The company quickly gained a first-class reputation as a producer of high-quality standard and customer-specific displays. The products of the manufacturer are used in telecommunications, medical electronics, measurement and control technology, household, automotive technology and much more.
The production has Class 1000 and Class 100 clean room conditions and a fully automated LCD production.
Since 1996, Display Elektronik has been certified according to DIN EN ISO 9001:2015.
This text is machine translated.
Features
- High-contrast LCD STN display
- Connection to 4- or 8-bit data bus
- Supply voltage, type. +5.0V
- Operating temperature range -20...+70°C.
