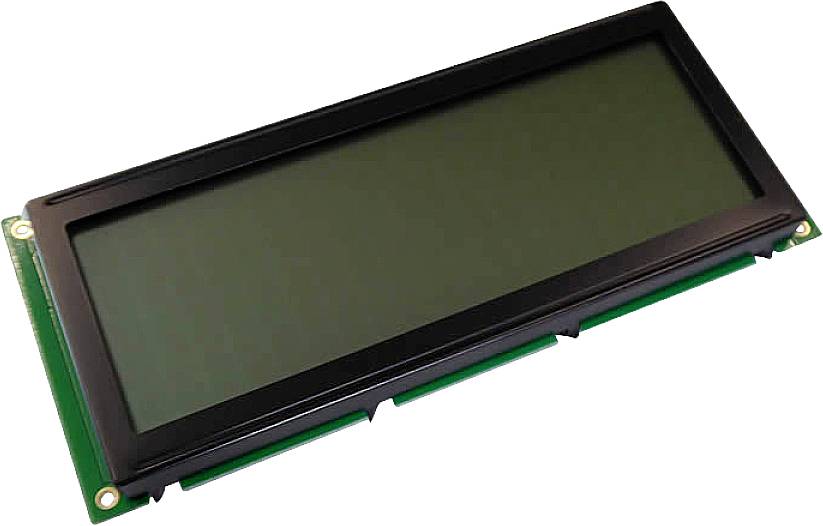

Display Elektronik LCD White 20 x 4 Pixel (W x H x D) 146 x 62.5 x 11.1 mm
EAN:
Part number:
Item no:
Product type
LCD
Display resolution
20 x 4 Pixel
Background colour
White
Lighting type
LED
Digit height
9.23 mm
Datasheet (PDF)
Number
Total (€ 47.05 / piece)
€ 47.05
plus VAT.
Highlights & Details
Display Electronic FSTN 20x4 black/white LED backl.
- High-contrast LCD FSTN display
- Connects to 4- or 8-bit data bus
- Supply voltage, type. +5.0V
- Operating temperature range -20...+70°C.
Technical specifications
- Product type
LCD
- Controller type
HD44780 Compatible
- Display resolution
20 x 4 Pixel
- Light area (width)
123 mm
- Light area (height)
42.5 mm
- Background colour
White
- Lighting type
LED
- Type (display)
FSTN
Dot-matrix
- Character style
20 x 4
- Digit height
9.23 mm
- Operating voltage
5 V DC
- Dim
(W x H x D) 146 x 62.5 x 11.1 mm
- Depth
11.1 mm
- Height
62.5 mm
- Width
146 mm
- RoHS-compliant
Yes
- Max. temperature
+70 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 2238797 Display Elektronik LCD White 20 x 4 Pixel (W x H x D) 146 x 62.5 x 11.1 mm
User & Safety Instructions
User & Safety Instructions 2238797 Display Elektronik LCD White 20 x 4 Pixel (W x H x D) 146 x 62.5 x 11.1 mm
Description
Display Elektronik is a well-known German manufacturer of liquid crystal displays (LCD).
Display Elektronik GmbH was founded in 1984. The company quickly gained a first-class reputation as a producer of high-quality standard and customer-specific displays. The products of the manufacturer are used in telecommunications, medical electronics, measurement and control technology, household, automotive technology and much more.
The production has Class 1000 and Class 100 clean room conditions and a fully automated LCD production.
Since 1996, Display Elektronik has been certified according to DIN EN ISO 9001:2015.
This text is machine translated.
Display Elektronik GmbH was founded in 1984. The company quickly gained a first-class reputation as a producer of high-quality standard and customer-specific displays. The products of the manufacturer are used in telecommunications, medical electronics, measurement and control technology, household, automotive technology and much more.
The production has Class 1000 and Class 100 clean room conditions and a fully automated LCD production.
Since 1996, Display Elektronik has been certified according to DIN EN ISO 9001:2015.
This text is machine translated.
Features
- High-contrast LCD FSTN display
- Connection to 4- or 8-bit data bus
- Supply voltage, type. +5.0V
- Operating temperature range -20...+70°C.
