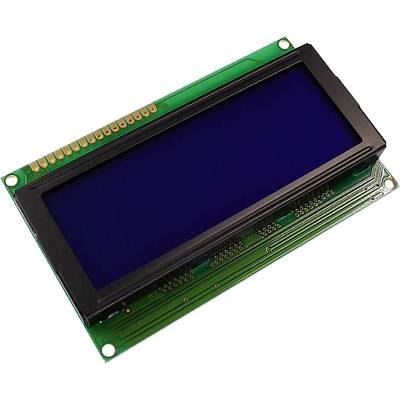

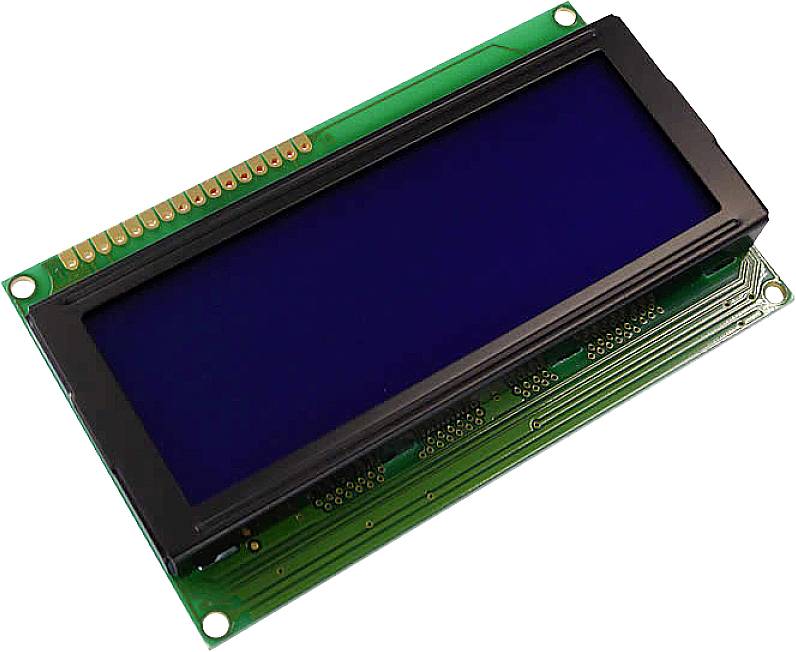

Display Elektronik LCD White 20 x 4 Pixel (W x H x D) 98 x 60 x 11.6 mm
EAN:
Part number:
Item no:
Product type
LCD
Display resolution
20 x 4 Pixel
Background colour
White
Lighting type
LED
Digit height
6.35 mm
Datasheet (PDF)
5 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 28.56
3
4% = € 1.24
€ 27.32
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 28.56 / piece)
€
Only 5 Piece(s) available
Highlights & Details
Display Electronic STN 20x4 white/blue LED backl.
- High-contrast LCD STN display
- Connects to 4- or 8-bit data bus
- Supply voltage, type. +5.0V
- Operating temperature range -20...+70°C.
Technical specifications
- Product type
LCD
- Controller type
HD44780 Compatible
- Display resolution
20 x 4 Pixel
- Light area (width)
85 mm
- Light area (height)
30.5 mm
- Background colour
White
- Lighting type
LED
- Type (display)
STN
Dot-matrix
- Character style
20 x 4
- Digit height
6.35 mm
- Operating voltage
5 V DC
- Dim
(W x H x D) 98 x 60 x 11.6 mm
- Depth
11.6 mm
- Height
60 mm
- Width
98 mm
- RoHS-compliant
Yes
- Max. temperature
+70 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 2238785 Display Elektronik LCD White 20 x 4 Pixel (W x H x D) 98 x 60 x 11.6 mm
User & Safety Instructions
User & Safety Instructions 2238785 Display Elektronik LCD White 20 x 4 Pixel (W x H x D) 98 x 60 x 11.6 mm
Description
Display Elektronik is a well-known German manufacturer of liquid crystal displays (LCD).
Display Elektronik GmbH was founded in 1984. The company quickly gained a first-class reputation as a producer of high-quality standard and customer-specific displays. The products of the manufacturer are used in telecommunications, medical electronics, measurement and control technology, household, automotive technology and much more.
The production has Class 1000 and Class 100 clean room conditions and a fully automated LCD production.
Since 1996, Display Elektronik has been certified according to DIN EN ISO 9001:2015.
This text is machine translated.
Display Elektronik GmbH was founded in 1984. The company quickly gained a first-class reputation as a producer of high-quality standard and customer-specific displays. The products of the manufacturer are used in telecommunications, medical electronics, measurement and control technology, household, automotive technology and much more.
The production has Class 1000 and Class 100 clean room conditions and a fully automated LCD production.
Since 1996, Display Elektronik has been certified according to DIN EN ISO 9001:2015.
This text is machine translated.
Features
- High-contrast LCD STN display
- Connection to 4- or 8-bit data bus
- Supply voltage, type. +5.0V
- Operating temperature range -20...+70°C.
