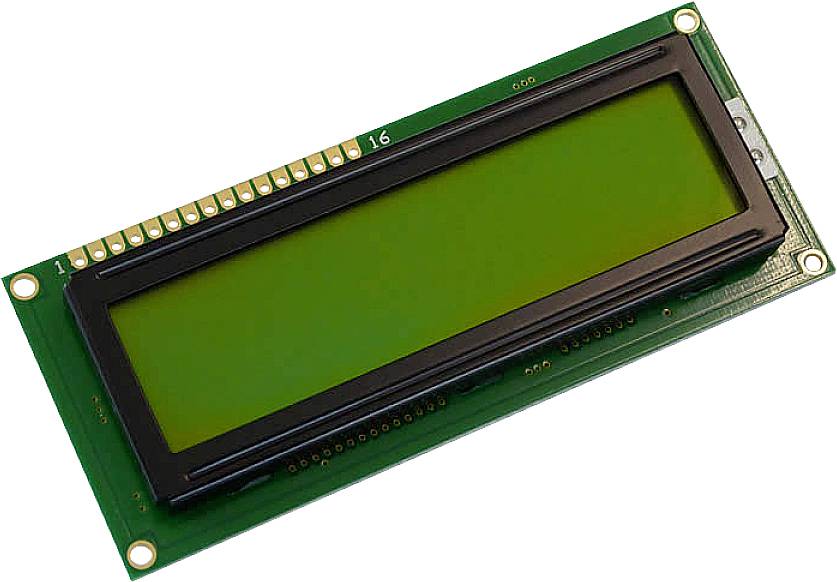

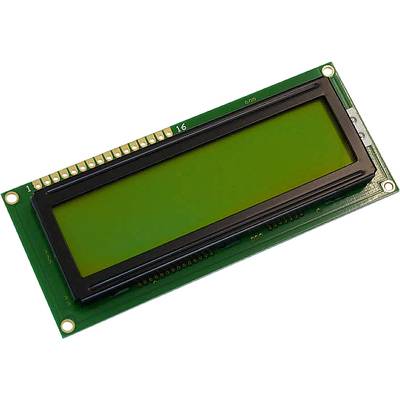

Display Elektronik LCD Yellow-green 16 x 2 Pixel (W x H x D) 100 x 42 x 10.1 mm
EAN:
Part number:
Item no:
Product type
LCD
Display resolution
16 x 2 Pixel
Background colour
Yellow-green
Lighting type
LED
Digit height
7.76 mm
Datasheet (PDF)
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Highlights & Details
Display Electronic STN 16x2 black/yellow LED backl.
- High-contrast LCD STN display
- Connects to 4- or 8-bit data bus
- Supply voltage, type. +5.0V
- Operating temperature range -20...+70°C.
Technical specifications
- Product type
LCD
- Controller type
HD44780 Compatible
- Display resolution
16 x 2 Pixel
- Light area (width)
80 mm
- Light area (height)
20.5 mm
- Background colour
Yellow-green
- Lighting type
LED
- Type (display)
STN
Dot-matrix
- Character style
16 x 2
- Digit height
7.76 mm
- Operating voltage
5 V DC
- Dim
(W x H x D) 100 x 42 x 10.1 mm
- Depth
10.1 mm
- Height
42 mm
- Width
100 mm
- RoHS-compliant
Yes
- Max. temperature
+70 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 2238809 Display Elektronik LCD Yellow-green 16 x 2 Pixel (W x H x D) 100 x 42 x 10.1 mm
User & Safety Instructions
User & Safety Instructions 2238809 Display Elektronik LCD Yellow-green 16 x 2 Pixel (W x H x D) 100 x 42 x 10.1 mm
Description
Display Elektronik is a well-known German manufacturer of liquid crystal displays (LCD).
Display Elektronik GmbH was founded in 1984. The company quickly gained a first-class reputation as a producer of high-quality standard and customer-specific displays. The products of the manufacturer are used in telecommunications, medical electronics, measurement and control technology, household, automotive technology and much more.
The production has Class 1000 and Class 100 clean room conditions and a fully automated LCD production.
Since 1996, Display Elektronik has been certified according to DIN EN ISO 9001:2015.
This text is machine translated.
Display Elektronik GmbH was founded in 1984. The company quickly gained a first-class reputation as a producer of high-quality standard and customer-specific displays. The products of the manufacturer are used in telecommunications, medical electronics, measurement and control technology, household, automotive technology and much more.
The production has Class 1000 and Class 100 clean room conditions and a fully automated LCD production.
Since 1996, Display Elektronik has been certified according to DIN EN ISO 9001:2015.
This text is machine translated.
Features
- High-contrast LCD STN display
- Connection to 4- or 8-bit data bus
- Supply voltage, type. +5.0V
- Operating temperature range -20...+70°C.
