Name: Display Elektronik LCD Yellow-green 20 x 4 Pixel (W x H x D) 98 x 60 x 11.6 mm
Brand: Display Elektronik
SKU: 2238814
Availability: InStock

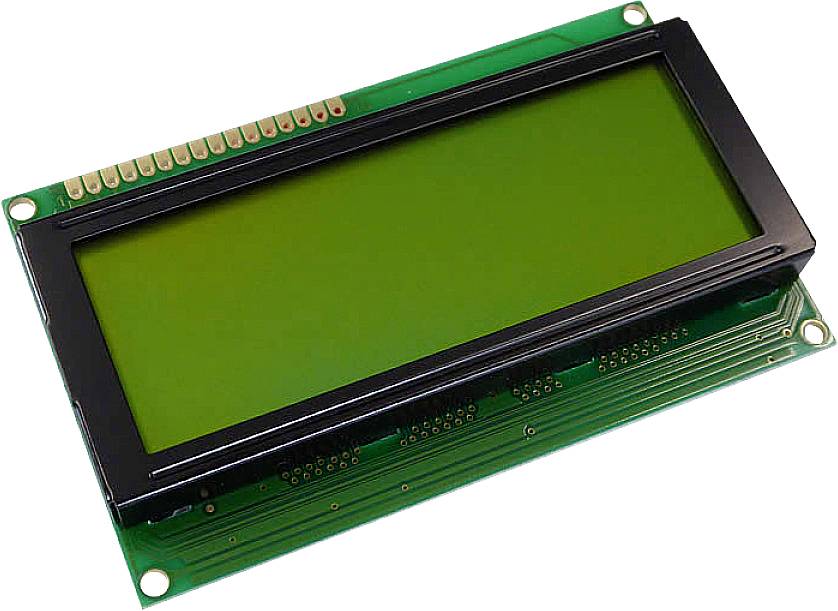

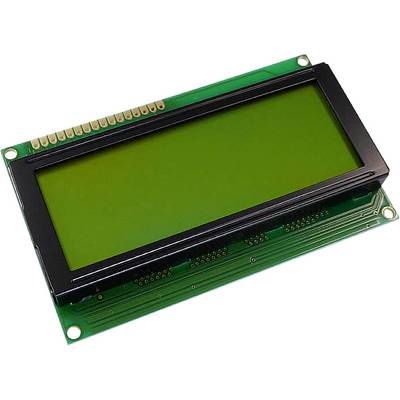

LCD display module with a green background and black frame, suitable for electronic applications to display simple information.

Product type

LCD

Display resolution

20 x 4 Pixel

Background colour

Yellow-green

Lighting type

LED

Digit height

6.35 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 30 Oct

700 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 22.99 / piece)

€ 22.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Display Electronic STN 20x4 black/yellow LED backl.

High-contrast LCD STN display
Connects to 4- or 8-bit data bus
Supply voltage, type. +5.0V
Operating temperature range -20...+70°C.

Technical specifications

Product type: LCD

Controller type: HD44780 Compatible

Display resolution: 20 x 4 Pixel

Light area (width): 85 mm

Light area (height): 30.5 mm

Background colour: Yellow-green

Lighting type: LED

Type (display): STN
Dot-matrix

Character style: 20 x 4

Digit height: 6.35 mm

Operating voltage: 5 V DC

Dim: (W x H x D) 98 x 60 x 11.6 mm

Depth: 11.6 mm

Height: 60 mm

Width: 98 mm

RoHS-compliant: Yes

Max. temperature: +70 °C

Min. temperature: -20 °C
