Name: Display Elektronik LCD Yellow-green (W x H x D) 116 x 37 x 8.6 mm
Brand: Display Elektronik
SKU: 2238783
Availability: InStock

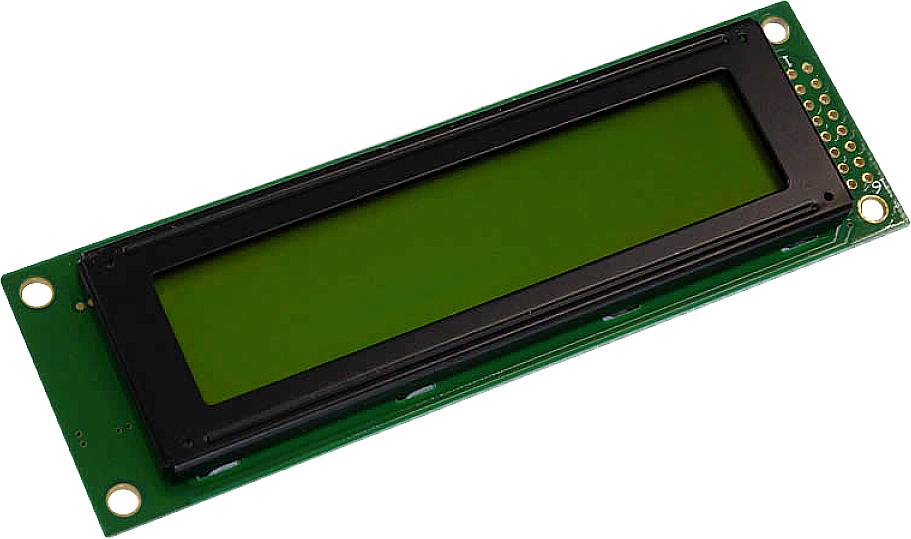

Green LCD display module with slim, rectangular screen and mounting holes at the corners.

Product type

LCD

Background colour

Yellow-green

Lighting type

LED

Digit height

5.55 mm

Operating voltage

5 V DC

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 30 Oct

123 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 20.99 / piece)

€ 20.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Display Electronic STN 20x2 black/yellow LED backl.

High-contrast LCD STN display
Connects to 4- or 8-bit data bus
Supply voltage, type. +5.0V
Operating temperature range -20...+70°C.

Technical specifications

Product type: LCD

Controller type: HD44780 Compatible

Light area (width): 83 mm

Light area (height): 18.6 mm

Background colour: Yellow-green

Lighting type: LED

Type (display): STN
Dot-matrix

Character style: 20 x 2

Digit height: 5.55 mm

Operating voltage: 5 V DC

Dim: (W x H x D) 116 x 37 x 8.6 mm

Depth: 8.6 mm

Height: 37 mm

Width: 116 mm

RoHS-compliant: Yes

Max. temperature: +70 °C

Min. temperature: -20 °C

Variants(All information include VAT, plus shipping costs)

Digit height

Dim

Height

Operating voltage

Width

Display Elektronik LCD (W x H x D) 80 x 36 x 6.6 mm

Item no:2238777

Dispatches on Fri 30 Oct

2044 Piece(s)Conrad Electronic

5.95 mm

(W x H x D) 80 x 36 x 6.6 mm

36 mm

5 V DC

80 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9.99^*

Display Elektronik LCD 16 x 2 Pixel (W x H x D) 80 x 36 x 6.6 mm

Item no:2238810

Dispatches on Fri 30 Oct

109 Piece(s)Conrad Electronic

4.35 mm

(W x H x D) 80 x 36 x 6.6 mm

36 mm

5 V DC

80 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 13.99^*

Display Elektronik LCD 16 x 2 Pixel (W x H x D) 80 x 36 x 7.1 mm

Item no:2238811

Fast track dispatch on Thu 29 Oct

7 Piece(s)Conrad Electronic

5.55 mm

(W x H x D) 80 x 36 x 7.1 mm

36 mm

5 V DC

80 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

Display Elektronik LCD 20 x 4 Pixel (W x H x D) 98 x 60 x 6.6 mm

Item no:2238817

Fast track dispatch on Thu 29 Oct

3 Piece(s)Conrad Electronic

4.75 mm

(W x H x D) 98 x 60 x 6.6 mm

60 mm

5 V DC

98 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 25.99^*

Display Elektronik LCD 16 x 2 Pixel (W x H x D) 47 x 18.5 x 2 mm

Item no:2238760

Unavailable

Conrad Electronic

3.8 mm

(W x H x D) 47 x 18.5 x 2 mm

18.5 mm

5 V DC

47 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 16.99^*

Display Elektronik LCD Black (W x H x D) 55 x 24.5 x 2.0 mm DEM16218SGH

Item no:3042979

Unavailable

Conrad Electronic

5.55 mm

(W x H x D) 55 x 24.5 x 2.0 mm

24.5 mm

55 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Display Elektronik LCD Black (W x H x D) 60 x 33 x 9.8 mm DEM08171SYH

Item no:3042887

Unavailable

Conrad Electronic

7.88 mm

(W x H x D) 60 x 33 x 9.8 mm

33 mm

60 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Display Elektronik LCD Black (W x H x D) 66.6 x 23.3 x 4.2 mm DEM16224SYH

Item no:3042984

Unavailable

Conrad Electronic

5.55 mm

(W x H x D) 66.6 x 23.3 x 4.2 mm

23.3 mm

66.6 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Display Elektronik LCD Black White (W x H x D) 182 x 33.5 x 14.5 mm DEM40271FGH-PW

Item no:3043062

Unavailable

Conrad Electronic

5.69 mm

(W x H x D) 182 x 33.5 x 14.5 mm

33.5 mm

3 V

182 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Display Elektronik LCD Black White (W x H x D) 60 x 33 x 12 mm DEM08171FGH-PW

Item no:3042885

Unavailable

Conrad Electronic

7.93 mm

(W x H x D) 60 x 33 x 12 mm

33 mm

3.2 V

60 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2238783 Display Elektronik LCD Yellow-green (W x H x D) 116 x 37 x 8.6 mm

User & Safety Instructions

User & Safety Instructions 2238783 Display Elektronik LCD Yellow-green (W x H x D) 116 x 37 x 8.6 mm

Description

Display Elektronik is a well-known German manufacturer of liquid crystal displays (LCD).
Display Elektronik GmbH was founded in 1984. The company quickly gained a first-class reputation as a producer of high-quality standard and customer-specific displays. The products of the manufacturer are used in telecommunications, medical electronics, measurement and control technology, household, automotive technology and much more.
The production has Class 1000 and Class 100 clean room conditions and a fully automated LCD production.
Since 1996, Display Elektronik has been certified according to DIN EN ISO 9001:2015.
