Display Elektronik LCD Yellow-green (W x H x D) 116 x 37 x 8.6 mm
EAN:
Part number:
Item no:
Product type
LCD
Background colour
Yellow-green
Lighting type
LED
Digit height
5.55 mm
Operating voltage
5 V DC
Datasheet (PDF)
Number
Total (€ 20.16 / piece)
€ 20.16
plus VAT.
Only 2 Piece(s) available
Highlights & Details

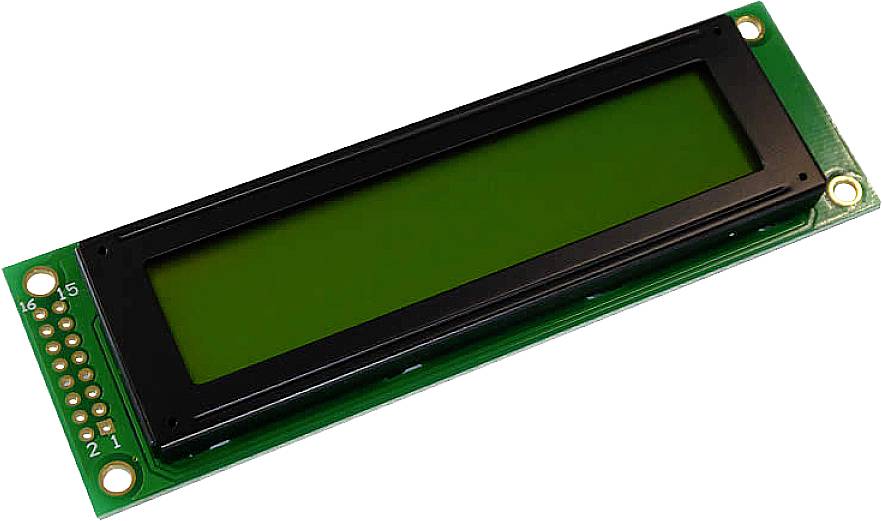

Display Electronic STN 24x2 black/yellow LED backl.
- High-contrast LCD STN display
- Connects to 4- or 8-bit data bus
- Supply voltage, type. +5.0V
- Operating temperature range -20...+70°C.
Technical specifications
- Product type
LCD
- Controller type
HD44780 Compatible
- Light area (width)
83 mm
- Light area (height)
18.6 mm
- Background colour
Yellow-green
- Lighting type
LED
- Type (display)
STN
Dot-matrix
- Character style
24 x 2
- Digit height
5.55 mm
- Operating voltage
5 V DC
- Dim
(W x H x D) 116 x 37 x 8.6 mm
- Depth
8.6 mm
- Height
37 mm
- Width
116 mm
- RoHS-compliant
Yes
- Max. temperature
+70 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 2238818 Display Elektronik LCD Yellow-green (W x H x D) 116 x 37 x 8.6 mm
User & Safety Instructions
User & Safety Instructions 2238818 Display Elektronik LCD Yellow-green (W x H x D) 116 x 37 x 8.6 mm
Description
Display Elektronik is a well-known German manufacturer of liquid crystal displays (LCD).
Display Elektronik GmbH was founded in 1984. The company quickly gained a first-class reputation as a producer of high-quality standard and customer-specific displays. The products of the manufacturer are used in telecommunications, medical electronics, measurement and control technology, household, automotive technology and much more.
The production has Class 1000 and Class 100 clean room conditions and a fully automated LCD production.
Since 1996, Display Elektronik has been certified according to DIN EN ISO 9001:2015.
This text is machine translated.
Display Elektronik GmbH was founded in 1984. The company quickly gained a first-class reputation as a producer of high-quality standard and customer-specific displays. The products of the manufacturer are used in telecommunications, medical electronics, measurement and control technology, household, automotive technology and much more.
The production has Class 1000 and Class 100 clean room conditions and a fully automated LCD production.
Since 1996, Display Elektronik has been certified according to DIN EN ISO 9001:2015.
This text is machine translated.
Features
- High-contrast LCD STN display
- Connection to 4- or 8-bit data bus
- Supply voltage, type. +5.0V
- Operating temperature range -20...+70°C.
