DISPLAY VISIONS LCD (W x H x D) 106.8 x 71 x 11.9 mm
EAN:
Part number:
Item no:
Product type
LCD
Height
71 mm
Width
106.8 mm
Operating voltage
5 V DC (max)
Max. current consumption
80 mA
Number
Total (€ 331.93 / piece)
€ 331.93
plus VAT.
Highlights & Details
Our service for you
Technical specifications
- Product type
LCD
- Operating voltage
5 V DC (max)
- Max. current consumption
80 mA
- Dim
(W x H x D) 106.8 x 71 x 11.9 mm
- Depth
11.9 mm
- Height
71 mm
- Width
106.8 mm
- Max. operating voltage
5 V DC
- RoHS-compliant
Yes
- Max. temperature
70 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2291033 DISPLAY VISIONS LCD (W x H x D) 106.8 x 71 x 11.9 mm
Description

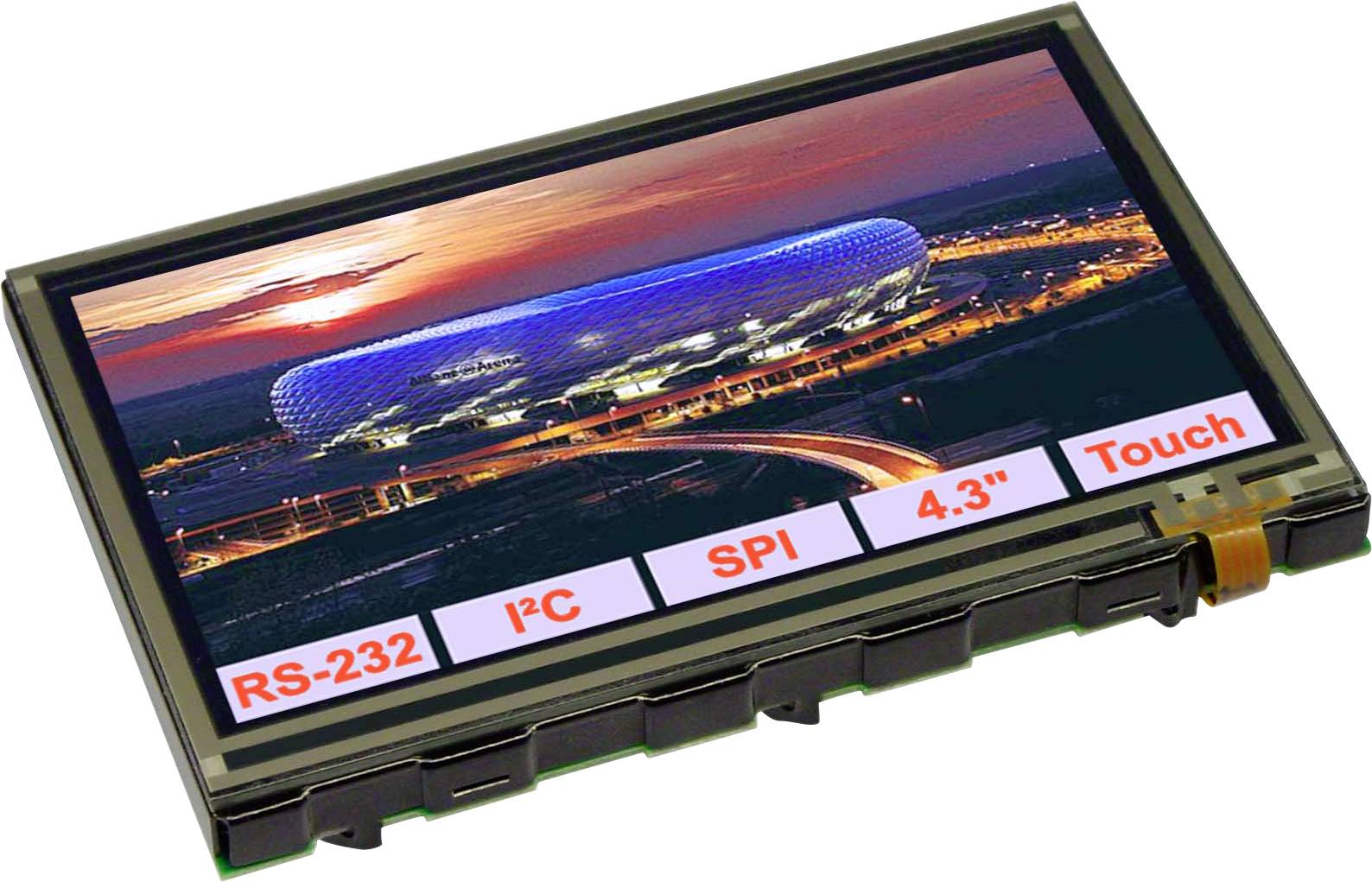

Intelligent TFT color display with 480x272 point resolution (4.3" WVGA) and integrated touch panel. Incl. Interface RS-232, SPI or I²C-Bus. With pins in 2.54mm pitch for socket or soldering into a circuit board. Character sets and graphics functions are already integrated. WITH FLASH for storing images, texts and complete screen pages. The mounting is done via integrated pins or the included tabs or with the help of an installation panel available as an accessory.
