DISPLAY VISIONS LCD (W x H x D) 39 x 41 x 2 mm

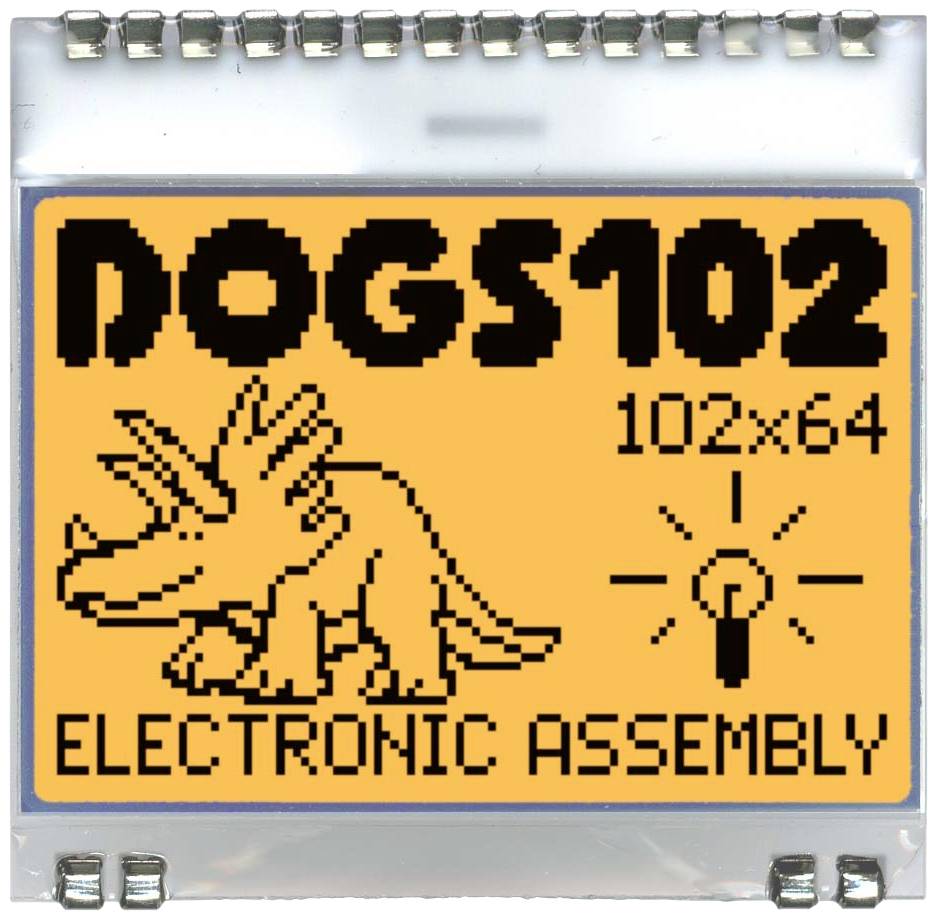

Display of an electronic screen reading 'DOGS102'. Shows a pixel-art style dinosaur image and the words 'ELECTRONIC ASSEMBLY'.
Product type
LCD
Lighting type
None
Operating voltage
3.3 V
Height
41 mm
Width
39 mm
EAN:
Part number:
Item no:
Fast track dispatch on Mon 2 Nov
1 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 20.99 / piece)
€ 20.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 1 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Our service for you

Technical specifications

Product type

LCD

Lighting type

None

Type (display)

COG

Operating voltage

3.3 V

Operating voltage

2.70 - 3.30 V DC

Max. current consumption

0.25 mA

Dim

(W x H x D) 39 x 41 x 2 mm

Depth

2 mm

Height

41 mm

Width

39 mm

Min. operating voltage

2.70 V DC

Max. operating voltage

3.30 V DC

RoHS-compliant

Yes

Max. temperature

70 °C

Min. temperature

-20 °C

Description

Graphics display OF THE DOG series with 102x64 pixels. Flat COG-display in FSTN black-white with SPI-interface for single supply 3.3V. With pins for direct PCB mounting (grid 2.54mm). Incl. Controller UC1701. Also available in various colors and designs. The lighting is ordered separately.
