DISPLAY VISIONS LCD (W x H x D) 55 x 31 x 2 mm

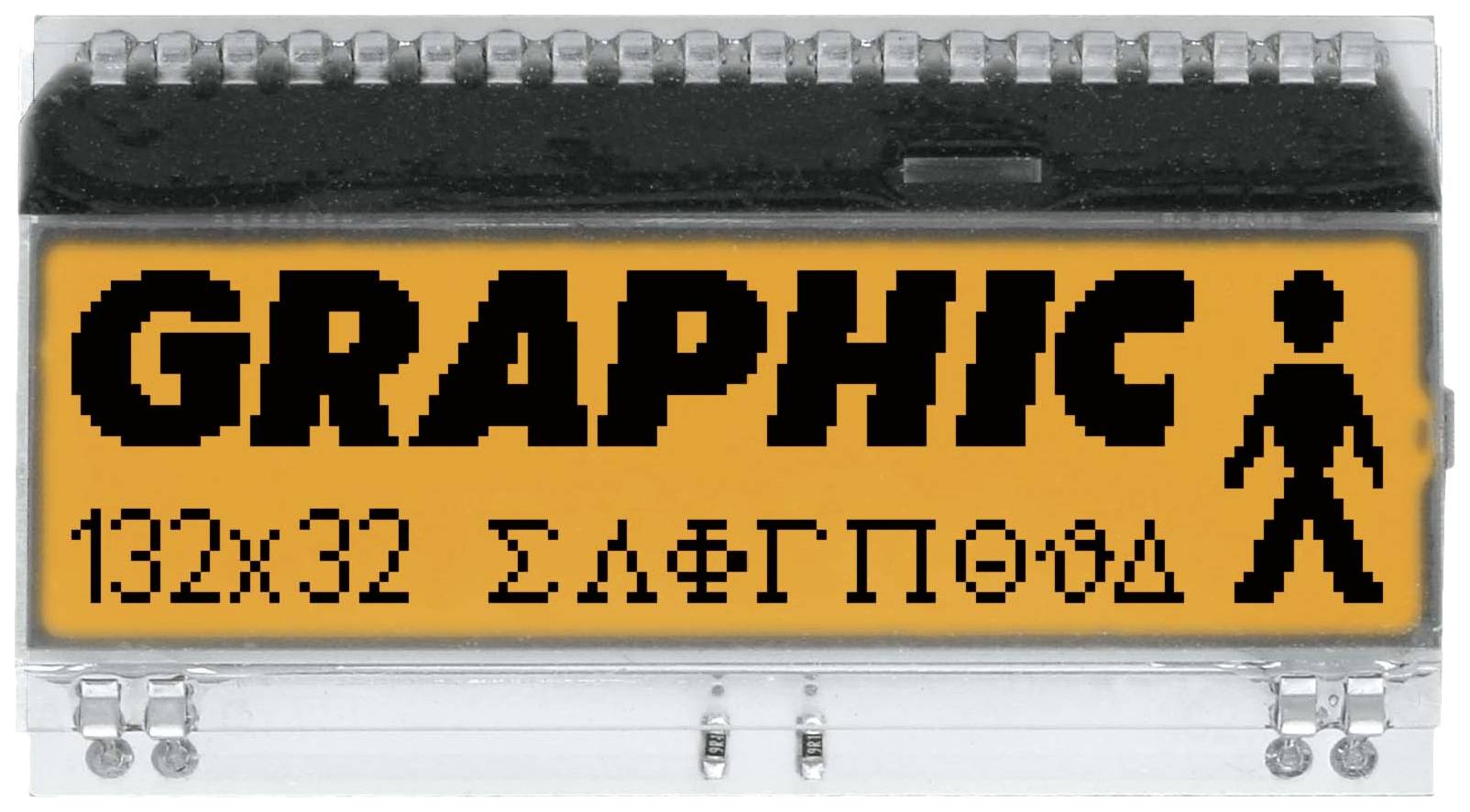

A graphic display shows the text 'GRAPHIC' and a pixelated little figure, underneath the numbers and letters '132x32 ΣΛξΓΠΘΦΔ'.
Product type
LCD
Height
31 mm
Width
55 mm
Operating voltage
2.70 - 3.30 V DC
Max. current consumption
0.14 mA
EAN:
Part number:
Item no:
Dispatches on Fri 30 Oct
1117 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 15.99 / piece)
€ 15.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Our service for you

Technical specifications

Product type

LCD

Operating voltage

2.70 - 3.30 V DC

Max. current consumption

0.14 mA

Dim

(W x H x D) 55 x 31 x 2 mm

Depth

2 mm

Height

31 mm

Width

55 mm

Min. operating voltage

2.70 V DC

Max. operating voltage

3.30 V DC

RoHS-compliant

Yes

Max. temperature

70 °C

Min. temperature

-20 °C

Description

Graphics display OF THE DOG series with 132x32 pixels. Flat COG-display in FSTN black-white with SPI-interface for single supply 3.3V. With pins for direct PCB mounting (grid 2.54mm). Incl. Controller ST7565. Also available in various colors and designs. The lighting is ordered separately.
