DISPLAY VISIONS LCD (W x H x D) 55 x 46 x 2 mm
EAN:
Part number:
Item no:
Product type
LCD
Height
46 mm
Width
55 mm
Operating voltage
3.30 V DC (min)
Max. current consumption
0.27 mA
Number
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Our service for you
Technical specifications
- Product type
LCD
- Operating voltage
3.30 V DC (min)
- Max. current consumption
0.27 mA
- Dim
(W x H x D) 55 x 46 x 2 mm
- Depth
2 mm
- Height
46 mm
- Width
55 mm
- Min. operating voltage
3.30 V DC
- RoHS-compliant
Yes
- Max. temperature
70 °C
- Min. temperature
-20 °C
Description

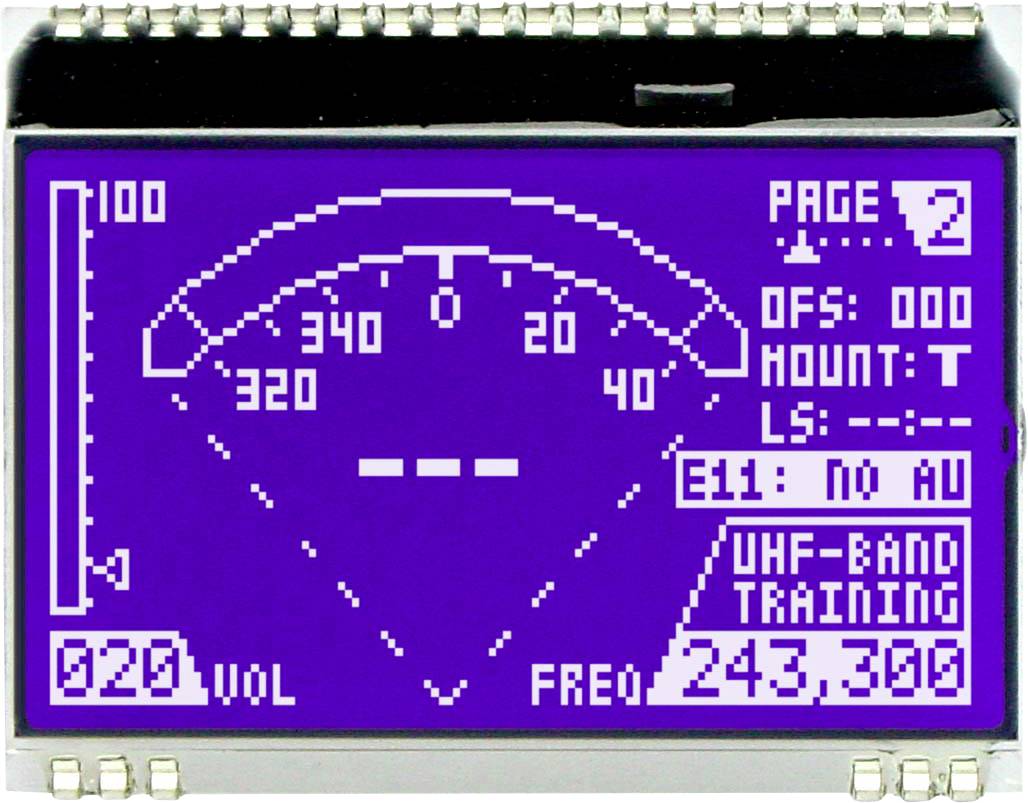

Graphics display OF THE DOG series with 128x64 pixels. Flat COG-display in STN blue with SPI-interface for single supply 3.3V. With pins for direct PCB mounting (grid 2.54mm). Incl. Controller ST7565. Also available in various colors and designs. The lighting is ordered separately and is absolutely necessary in this version. We recommend white lighting.
