DISPLAY VISIONS OLED screen 128 x 64 Pixel (W x H x D) 68 x 51 x 2.1 mm
EAN:
Part number:
Item no:
Product type
OLED screen
Display resolution
128 x 64 Pixel
Lighting type
OLED
Height
51 mm
Width
68 mm
Number
Total (€ 57.13 / piece)
€ 57.13
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Our service for you
Technical specifications
- Product type
OLED screen
- Display resolution
128 x 64 Pixel
- Light area (width)
68 mm
- Light area (height)
51 mm
- Lighting type
OLED
- Type (display)
OLED
- Operating voltage
2.70 - 3.30 V DC
- Max. current consumption
70 mA
- Dim
(W x H x D) 68 x 51 x 2.1 mm
- Depth
2.1 mm
- Height
51 mm
- Width
68 mm
- Min. operating voltage
2.70 V DC
- Max. operating voltage
3.30 V DC
- RoHS-compliant
Yes
- Max. temperature
80 °C
- Min. temperature
-40 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2291084 DISPLAY VISIONS OLED screen 128 x 64 Pixel (W x H x D) 68 x 51 x 2.1 mm
Description

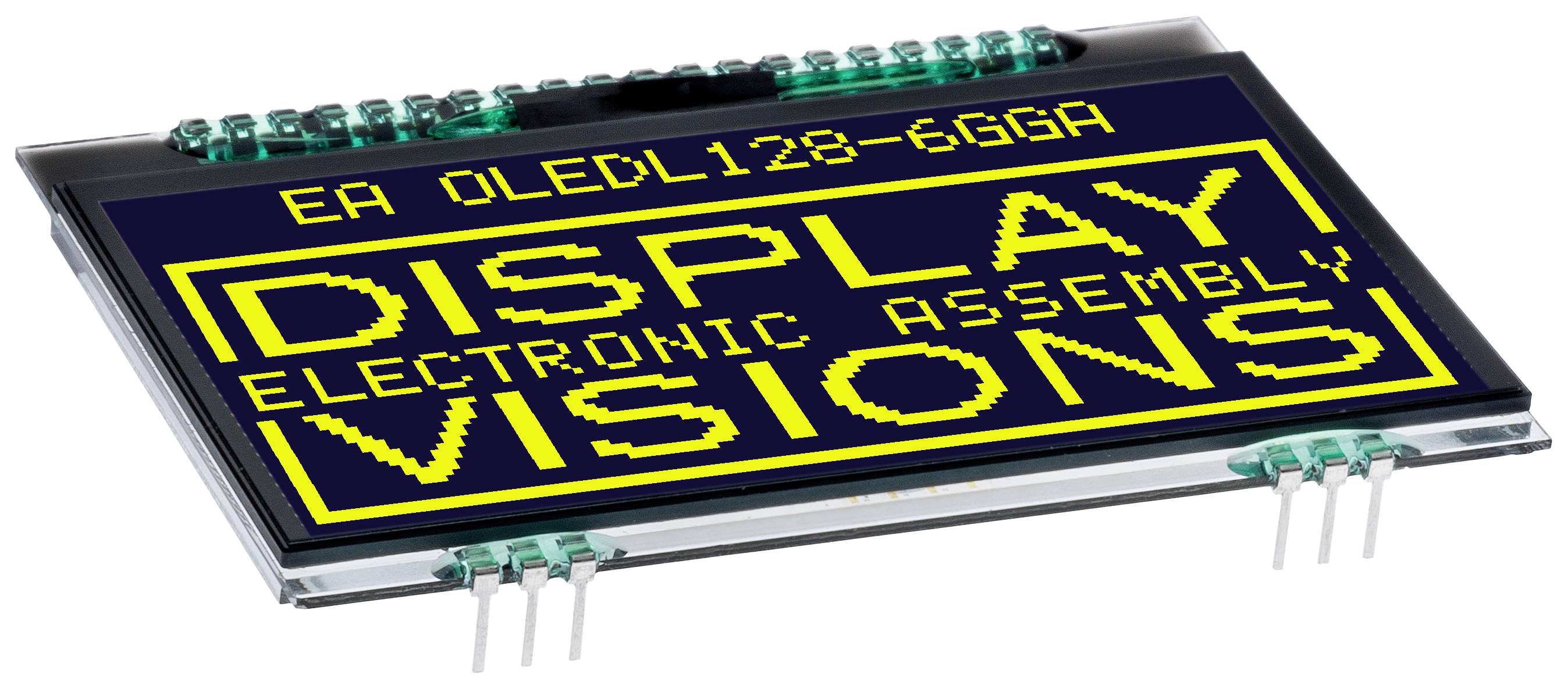

Graphic OLED in yellow with 128x64 pixels. With pins in 2.54mm pitch for contacting. Wide temperature range from -40 to +80°C and fast display (type. 10µs also at -40°C). The display offers an extremely large viewing angle of almost 180°. The assembly is also done via pins.
