DISPLAY VISIONS OLED screen (W x H x D) 36.9 x 41.2 x 2.1 mm
EAN:
Part number:
Item no:
Product type
OLED screen
Lighting type
OLED
Height
41.2 mm
Width
36.9 mm
Type (display)
OLED
Number
Total (€ 55.45 / piece)
€ 55.45
plus VAT.
Only 4 Piece(s) available
Highlights & Details
Our service for you
Technical specifications
- Product type
OLED screen
- Lighting type
OLED
- Type (display)
OLED
- Operating voltage
2.70 - 3.30 V DC
- Max. current consumption
24 mA
- Dim
(W x H x D) 36.9 x 41.2 x 2.1 mm
- Depth
2.1 mm
- Height
41.2 mm
- Width
36.9 mm
- Min. operating voltage
2.70 V DC
- Max. operating voltage
3.30 V DC
- RoHS-compliant
Yes
- Max. temperature
80 °C
- Min. temperature
-40 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2291099 DISPLAY VISIONS OLED screen (W x H x D) 36.9 x 41.2 x 2.1 mm
Description

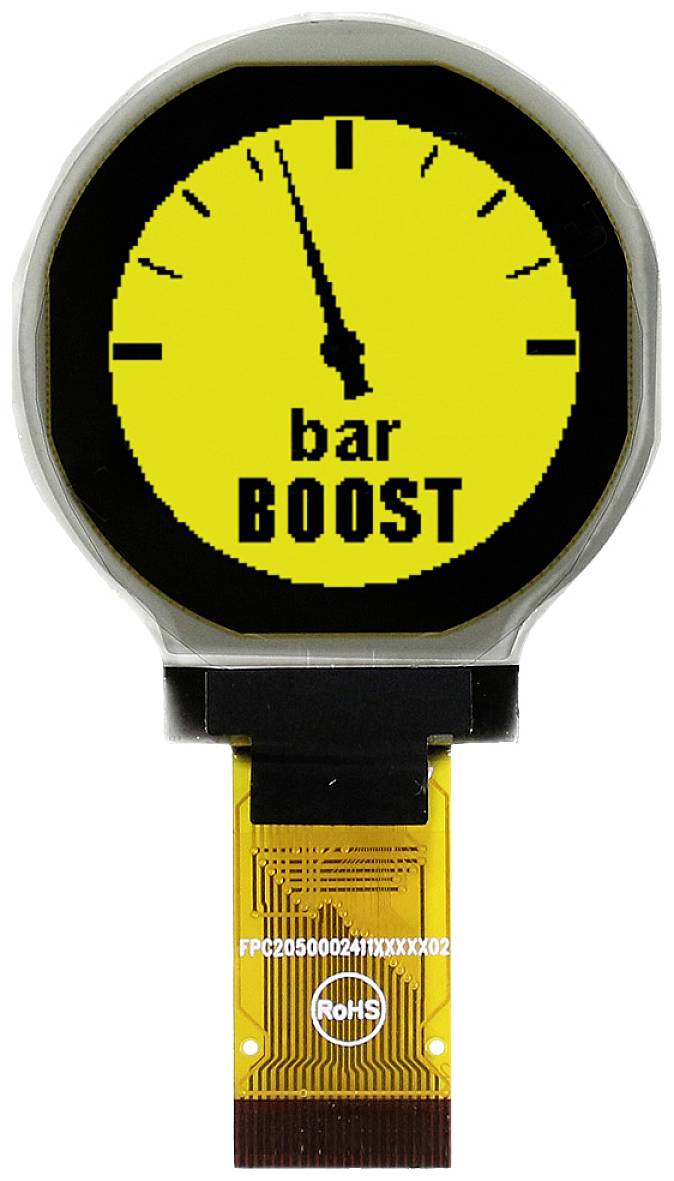

Round OLED in yellow with 30mm diameter (active range). Extremely wide temperature range and fast display (type. 10µs also at -40°C). The display offers a wide viewing angle of almost 180°. The display can be easily contacted via the 24-pin flexible connection.
The SPI, I²C and parallel 8-bit are available as interfaces.
This text is machine translated.
The SPI, I²C and parallel 8-bit are available as interfaces.
