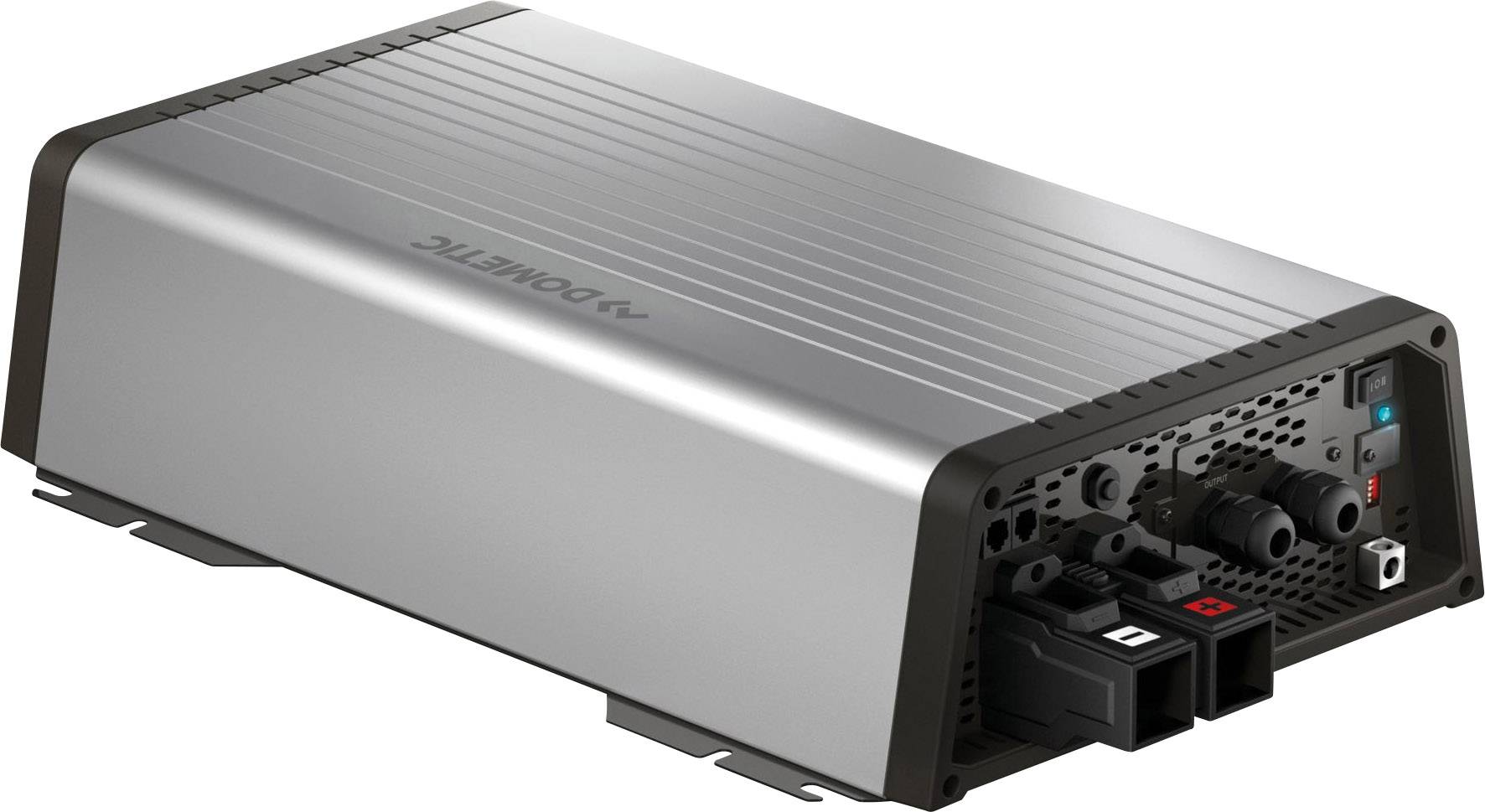

Dometic Group Inverter SinePower DSP 3524T 3500 W 24 V DC - 230 V AC Remote operation, Priority switch
EAN:
Part number:
Item no:
Number
Total (€ 1,789.08 / piece)
€ 1,789.08
plus VAT.
14-day return policy included
Highlights & Details
Sine wave inverter sine power DSP3524 T
- Pure sinusoidal output voltage
- Smart standby mode
- CI-bus-compatible
- Mains priority circuit
- Voltage synchronization
- Large input voltage range
- Load and temperature-controlled fan.
Technical specifications
- Operating temperature -20 - +60 C.
- Product type
Inverter
- Signal output type
Sine wave
- Output voltage
230 V AC
3500 W
- Input voltage
24 V DC
- Inputs
Screw terminals
- Output
PG socket
- Nominal load efficiency
92 %
- Output frequency
60 Hz
- Permanent current
3500 W
- Remote control
Optional
- Weight
10900 g
- Cooling method
Fan
- Width
283 mm
- Height
128.4 mm
- Length
496 mm
- Peak output power
6000 W
- Standby consumption
0,15 A
- Type
SinePower DSP 3524T
- Features
Remote operation
Priority switch
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1681899 Dometic Group Inverter SinePower DSP 3524T 3500 W 24 V DC - 230 V AC Remote operation, Priority switch
Description
The sine power Sine wave inverter converts DC DSP T comfort from the battery in pure 230 V alternating current. The intelligent mains priority circuit ensures a smooth switching from battery power to power, if the vehicle is connected to the power supply. There is no load, the inverter to the power-saving smart standby mode. It switches on again automatically, as soon as the pre-programd "wake" range is reached. With the elegant control panel to all settings easily and flexibly.
This text is machine translated.
This text is machine translated.
Features
- Pure sinusoidal output voltage is suitable for sensitive electrical devices
- The smart standby mode saves energy when the device is not in use it
- CI-bus compatible - can be easily integrated in the vehicle power
- Integrated mains priority circuit with voltage synchronization
- Large DC input voltage range - ideal for EURO 6-compliant vehicles
- Load and temperature-controlled and low-noise fan
Scope of delivery
- Incl. connection cable with earthing contact coupler (for 230 VV-output)
- Connection cable with earthing contact plug (for 230V supply)
