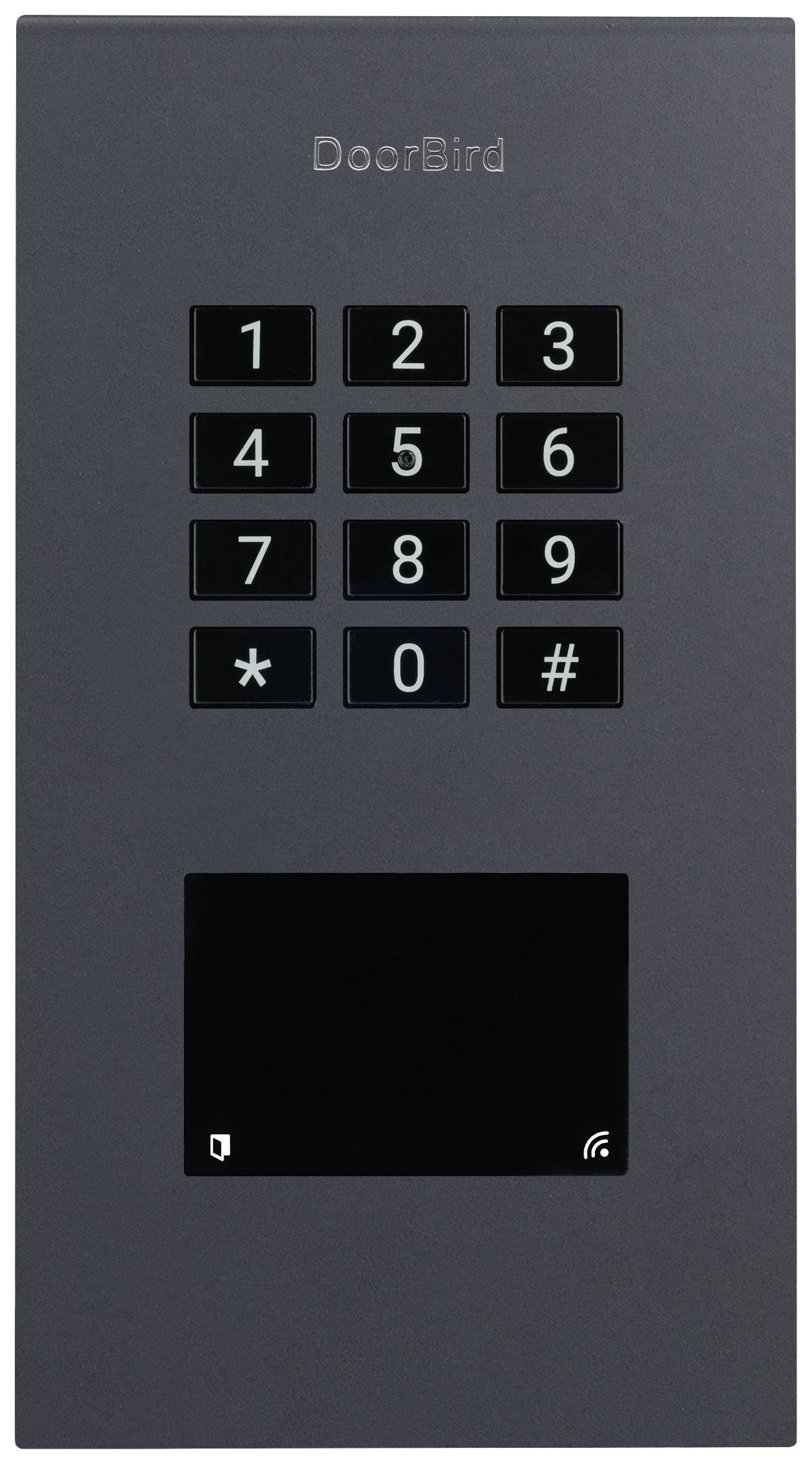

DoorBird 423872257 RFID keypad Flush mount IP65 + backlit keypad
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 516.81 / piece)
€ 516.81
plus VAT.
Highlights & Details
DoorBird IP Access Control System A1121 flush-mounted, stainless steel V2A, powder-coated, semi-gloss, RAL 7016
- Keypad module, 12 keys, illuminated, configurable via appManpuing sensorRFID readerWIEGAND interfaceLAN/WLAN:
Technical specifications
- Wi-Fi 2.4 GHzRFID 13.56 MHz, 125 kHzEthernet: PoE 802.3af mode-A, 10/100 Base-TWi-Fi 2.4 GHz b/g/n
- Product type
RFID keypad
- Mounting type
Flush mount
- No. of codes/combinations
500
IP65
- Weight
465 g
- Dim
(W x H x D) 83 x 152 x 31 mm
- Features
+ backlit keypad
- Factory colour
V2A stainless steel
RAL 7016 (semi-gloss)
- Width
83 mm
- Height
152 mm
- Depth
31 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2615933 DoorBird 423872257 RFID keypad Flush mount IP65 + backlit keypad
User & Safety Instructions
User & Safety Instructions 2615933 DoorBird 423872257 RFID keypad Flush mount IP65 + backlit keypad
Description
The DoorBird A1121 is a compact, IP-based multi-technology access control system that can also be installed as a stand-alone solution. It enables secure access control in areas where the installation of an IP video door station is not possible or desired, e.g. at rear and side doors, garages and underground garages, storage and packing rooms or bicycle and machine rooms. The keypad is illuminated so that you can install the device in an unlit environment.
This text is machine translated.
This text is machine translated.
Features
- RFID readerKeypad modulePowder-coated.
Scope of delivery
- 1 x main electrical unit
- 1 x front panel
- 1 x flush-mounted housing
- 1 x plug power supply (110 - 240 V AC to 15 V DC) with 4 landing adapters
- 1 x RJ45 adapter
- 1 x screwdriver
- 1 x Quick Start Guide with Digital Passport
- 1 x installation guide
- 1 x small parts.
Hints
RFID key Fobs sold separately.
System requirements
- IOS/Android
