DoorBird 423912663 Fingerprint/RFID access system Flush mount IP65 Bluetooth support
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 533.61 / piece)
€ 533.61
plus VAT.
Highlights & Details

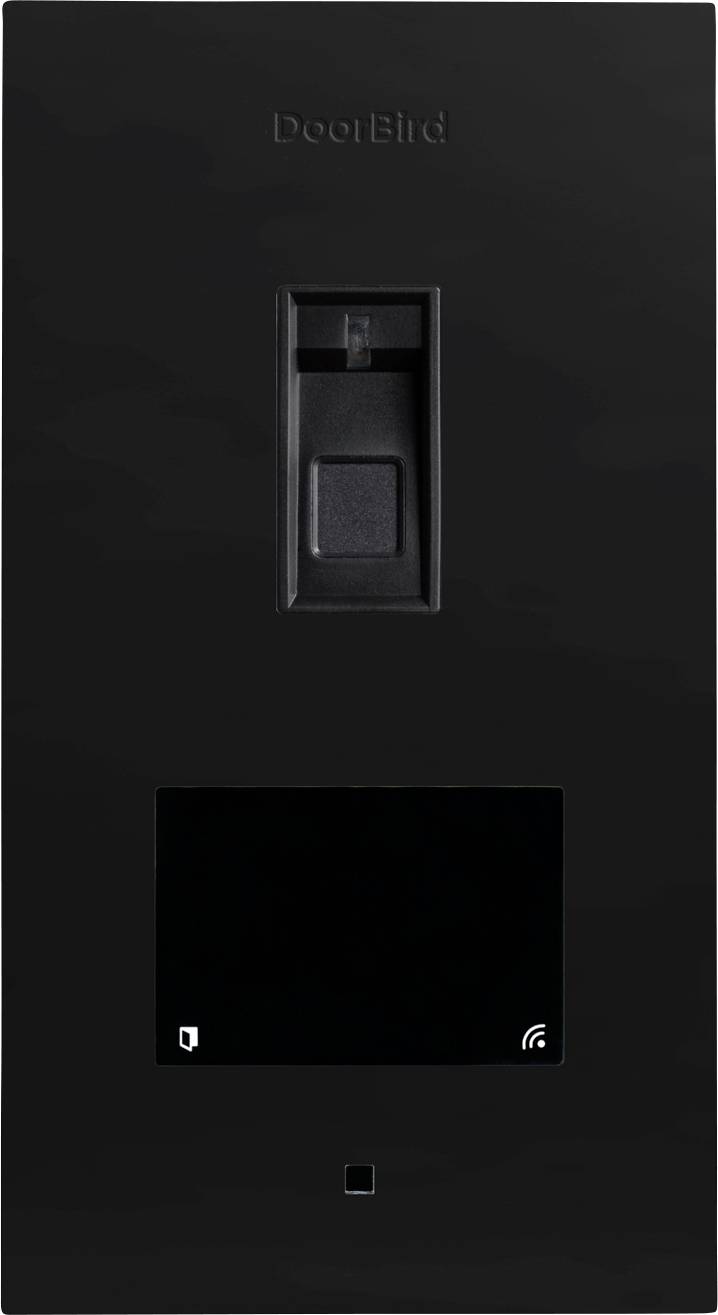

DoorBird IP access control system A1122 flush-mounted, graphite black, semi-gloss, with fingerprint reader, including flush housing
- Fingerprint scanner for up to 50 fingerprints, configurable via APP
- Manipulation sensor
- RFID reader
- WIEGAND interface
- LAN/WLAN:
Technical specifications
- Product type
Fingerprint/RFID access system
- Mounting type
Flush mount
- Triggered by
Transponder
Fingerprint
- No. of codes/combinations
50
IP65
Manufacturer-specific
- Weight
465 g
- Dim
(W x H x D) 83 x 152 x 31 mm
- Features
Bluetooth support
- Factory colour
Graphite black (semi-gloss)
- Width
83 mm
- Height
152 mm
- Depth
31 mm
Documents & Downloads
Datasheet
Datasheet 3450151 DoorBird 423912663 Fingerprint/RFID access system Flush mount IP65 Bluetooth support
User & Safety Instructions
User & Safety Instructions 3450151 DoorBird 423912663 Fingerprint/RFID access system Flush mount IP65 Bluetooth support
Description
The DoorBird A1122 is a compact, IP-based multi-technology access control system that can also be installed as a stand-alone solution. It enables secure access control in areas where the installation of an IP Video door station is not possible or desired e.g. at rear and side doors, garages and underground garages, storage and packing rooms or bicycle and machine rooms. Thanks to its compact shape the device can be installed easily at a door frame. In addition, the fingerprint reader has a locking mechanism that prevents manipulation attempts and temporarily locks the system after several unauthorized access attempts.
This text is machine translated.
This text is machine translated.
Features
- RFID reader
- Fingerprint scanner
- Bluetooth
Scope of delivery
- 1x electrical main unit with front panel
- 1x in-wall casing
- 1x plug power supply (100 - 240 V AC on 15 V DC) with up to 4 country adapters
- 1x RJ45 adapter
- 1x Screwdriver
- 1x Quick start guide with Digital Passport
- 1x user manual
- 1x small parts
Hints
RFID-Key Fobs and Bluetooth remote control available separately.
System requirements
- Mobile device: The latest iOS on iPhone/iPad, the latest Android on smartphone/tablet
Internet: High-speed fixed line broadband Internet connection, DSL, cable or fiber, no socket or proxy server
Network: Ethernet network, with DHCP
