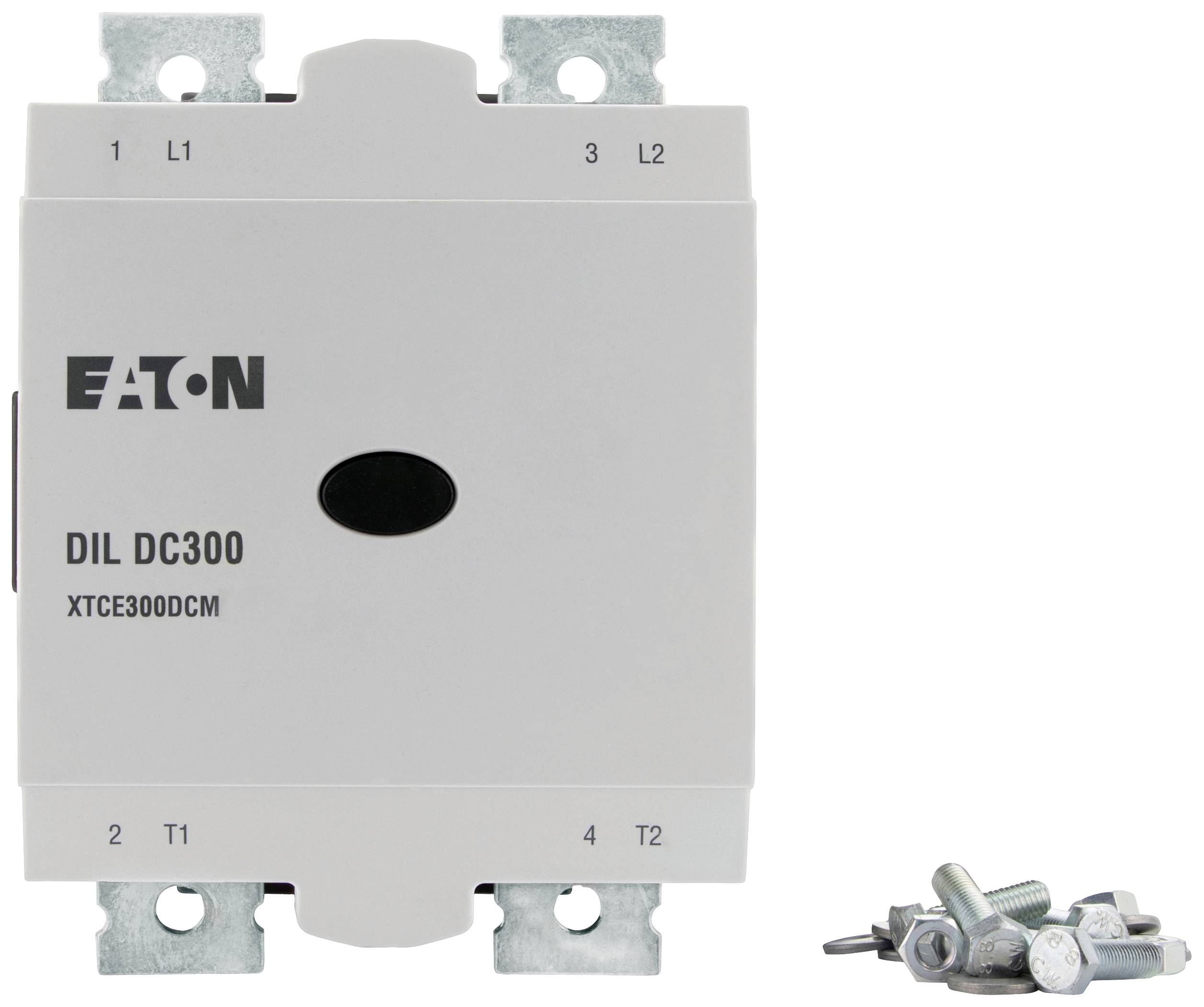

A white electrical component with the inscription 'Eaton DIL DC300 XTC E300DCM', alongside several screws.

A white electrical component with the inscription 'Eaton DIL DC300 XTC E300DCM', alongside several screws.

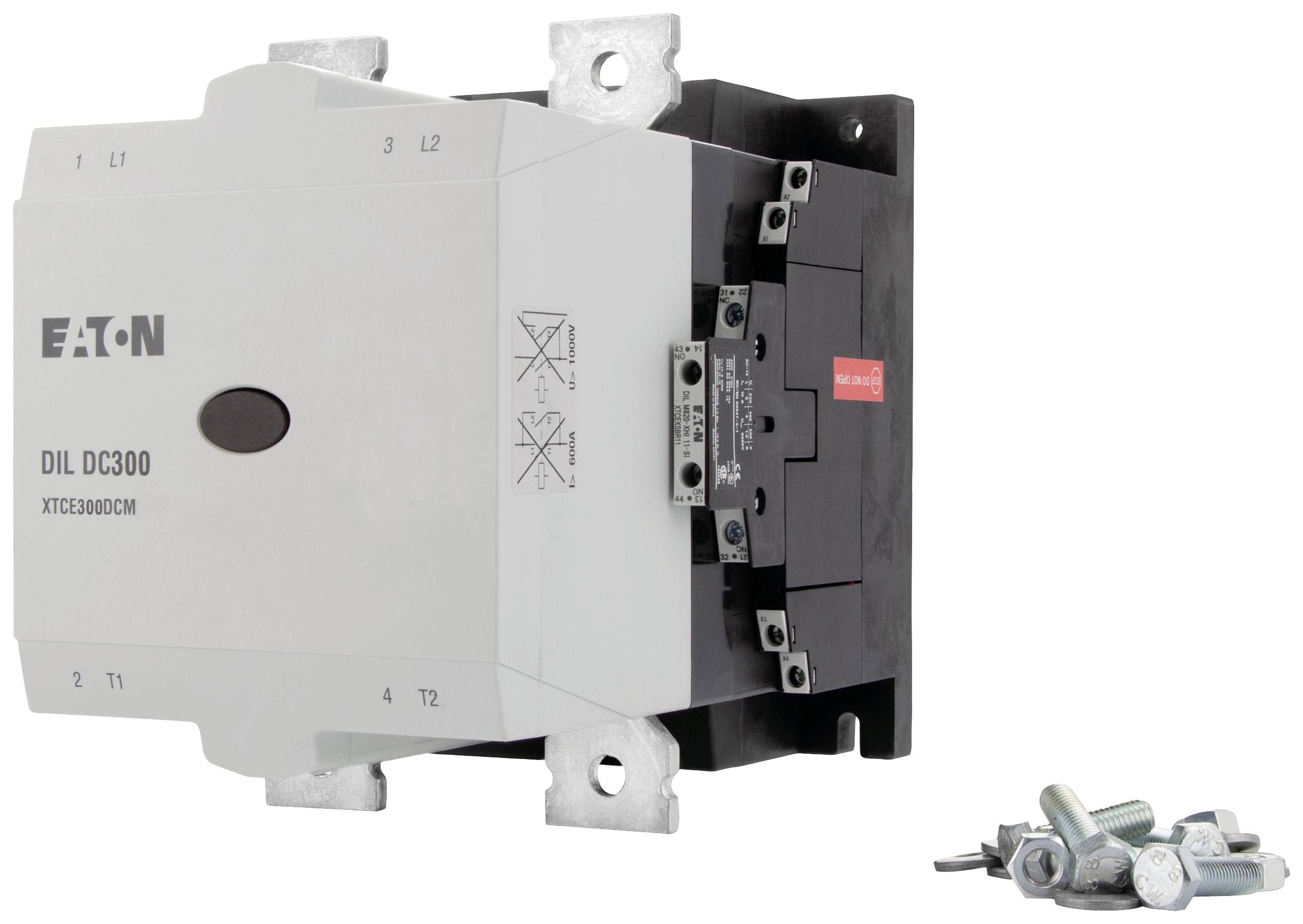

A grey Eaton DIL contactor with labels on the front. Screws and nuts are positioned to the right beside it.

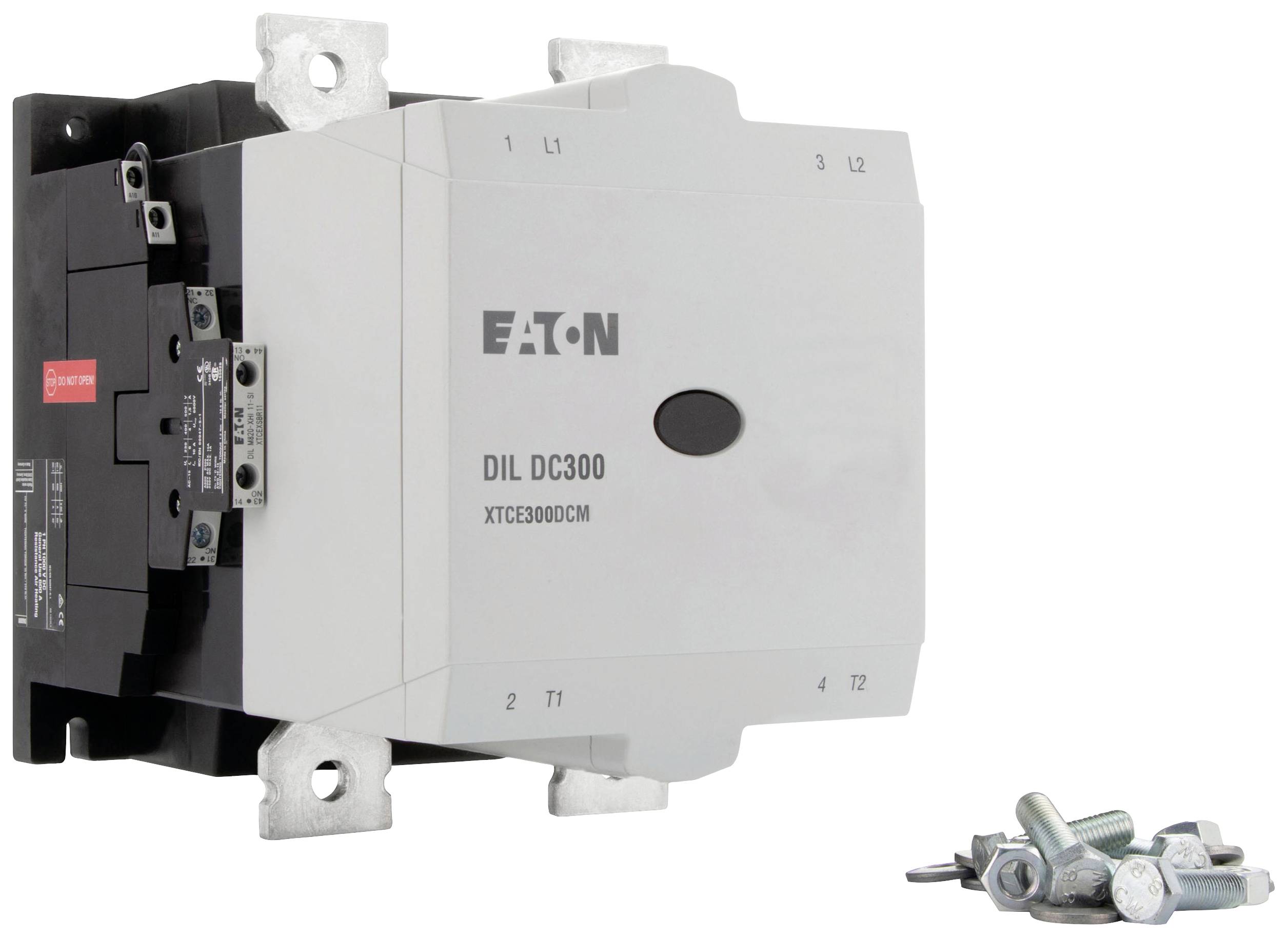

An electrical contactor by Eaton, model DIL DC300, with connection terminals, with mounting materials such as screws and nuts lying beside it.

1/3

Eaton

Product type

Electrical contactor

Current load

300 A

Packaging type

Piece

Type

DILDC300/22(RDS250)

Switching type

DC circuit

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 19 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 3,779.00 / piece)

€ 3,779.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: Electrical contactor

Type: DILDC300/22(RDS250)

Switching type: DC circuit

Contact type: 2 breakers
2 makers

Auxiliary contact type: 2 breakers
2 makers

Control voltage (min.): 110 V AC

Control voltage (max.): 350 V DC

Control voltage range: 110 - 350 V DC

Permanent current (max.): 300 A

Current load: 300 A

Features: + broad range setup

Durability: 1000000

: IP00

Min. temperature: -40 °C

Max. temperature: +70 °C

Width: 160 mm

Height: 219 mm

Depth: 248 mm

Dim: (W x H x D) 160 x 219 x 248 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 160 mm

: 219 mm

: 248 mm

: FALSE

: 2

: 0

: 2

: 2

: 110-250 V

: 110-250 V

: 110-350 V

: Connection rail

: 0 kW

: 0 A

: 110-350 V

: AC/DC

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3193570 Eaton DILDC300/22(RDS250) Electrical contactor DC circuit 2 breakers, 2 makers 300 A + broad range setup Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3193570 Eaton DILDC300/22(RDS250) Electrical contactor DC circuit 2 breakers, 2 makers 300 A + broad range setup Piece 1 pc(s)

Description

DC power contactor, world market device: UL/CSA, CCC, compact dimensions, convenient series with possibility of direct control via PLC, with integrated protective circuit in the control electronics, according to IEC/EN60947, with wide-range coil AC/DC.

This text is machine translated.

Features

Low wear of the switch contacts due to very short arc time
Simple handling through bidirectional switching (independent of polarity)
Compact dimensions
Wide operating voltage range from 110 V to 250 V AC and from 110 V to 350 V DC
Worldwide use: UL, CSA, CCC, GL, DNV
Efficient: Up to 150,000 electrical cycles
Temperature range: -40°C to +70 °C

Description

DC power contactor, world market device: UL/CSA, CCC, compact dimensions, convenient series with possibility of direct control via PLC, with integrated protective circuit in the control electronics, according to IEC/EN60947, with wide-range coil AC/DC.

This text is machine translated.

Features

Low wear of the switch contacts due to very short arc time
Simple handling through bidirectional switching (independent of polarity)
Compact dimensions
Wide operating voltage range from 110 V to 250 V AC and from 110 V to 350 V DC
Worldwide use: UL, CSA, CCC, GL, DNV
Efficient: Up to 150,000 electrical cycles
Temperature range: -40°C to +70 °C
