Name: Eaton Y7-170431 FRCMM-25/2/003-A RCCB 2-phase A 25 A 0.03 A
Brand: Eaton
SKU: 2622166
Availability: BackOrder

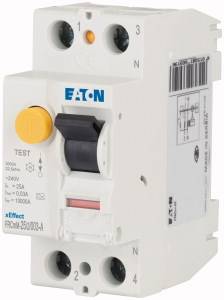

Circuit breaker with yellow test button, black switch and blue 'EATON' marking. Used for electrical safety.

An Eaton residual current circuit breaker with a yellow test button and black switch, 25A, 30mA. Top surface with wire connections.

An electrical protective switch with the marking 'EATON'. The switch has a black toggle and a yellow test button.

A white Eaton RCD (Residual Current Device) with a yellow test button and black lever, identifies electrical consumers and protects against electric shocks.

A white residual current circuit breaker with a yellow test button and black lever, marked with 'Eaton' and technical specifications.

1/5

Image similar

Product type

RCCB

Number of pins

Release characteristics

Differential current rating

0.03 A

Nominal current - rounded value

25 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 87.99 / piece)

€ 87.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: RCCB

Number of pins: 2

Release characteristics: A

Differential current rating: 0.03 A

Nominal current: 25 A

Nominal current - rounded value: 25 A

Model: 2-phase

Type: 1-pole + N

Content: 1 pc(s)

: DIN rail

: 70.5 mm

: 25 A

: 240 V

: 440 V

: 2

: 0.03 A

: A

: FALSE

: 10 kA

: 0.25 kA

: 2

: 2

: FALSE

: FALSE

: 50/60 Hz

: IP20

: 1.5-35 mm²

: 1.5-16 mm²

: TRUE

: 25-40 °C

: TRUE

: 4

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2622166 Eaton Y7-170431 FRCMM-25/2/003-A RCCB 2-phase A 25 A 0.03 A

User & Safety Instructions

User & Safety Instructions 2622166 Eaton Y7-170431 FRCMM-25/2/003-A RCCB 2-phase A 25 A 0.03 A

Information

Information 2622166 Eaton Y7-170431 FRCMM-25/2/003-A RCCB 2-phase A 25 A 0.03 A

Description

DesignVoltage-independant fault current circuit breaker for industrial and commercial applications with hohem current ratingDouble-comfort terminal (lift/mouth), on both sidesContact position indicator red-green The function of the switch is independant of the positionApplication notes The ground fault circuit interrupter and its triggering is independant of the mains voltage (VI) and enables use in all access areas. The ground fault circuit interrupter is suitable for providing fault protection, additional protection and/or fire protection. The requirements of the corresponding installation regulation apply (e.g. IEC/EN 60364)Test keyPress the “T” test button every 6 months. The plant operator must be demonstrably informed of this circumstance and its responsibility. Under special conditions (e.g. humidity and/or dusty environment, environments with polluting and/or corrosive conditions, environments with high temperature fluctuations, installations with risks of overvoltages by switching devices and/or atmospheric discharges, mobile power supply equipment), it is recommended to test monthly. The specifications of the installation regulation apply with regard to special applications and environments. If the switching device shows a red and yellow LED at the same time, the must Test button and follow the steps in the assembly instructions. Pressing the “T” test button tests only the function of the residual current (FI) circuit breaker. This test does not replace the Ground Resistance (RE) or the proper one Protective conductor status test, which must be carried out separately.

This text is machine translated.
