Eberle 191810153602 UTE 1001-RAL9016-G-50 Indoor thermostat Flush mount 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 57.13 / piece)
€ 57.13
plus VAT.
14-day return policy included
Highlights & Details
EBERLE UTE 1001-RAL9016-G-50 UP ROOM CONTROLLER
- FLUSH-MOUNTED ROOM CONTROLLER, 5 - 30 C, 230 V AC1 NC, 10 ATemperature reduction approx. 4K
Technical specifications
- Product type
Indoor thermostat
- Operation type
electronical
- Max. temperature setting
30 °C
- Temperature settings
5 up to 30 °C
- Display
No
- Remote sensor
No
- Compatible with
Underfloor heating
Heaters
- Mounting type
Flush mount
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Contact load capacity
10 A
- Nighttime drop
Yes
- Factory colour
Active white (glossy)
- Similar RAL
9016
- Width
50 mm
- Height
50 mm
IP30
- Dim
(W x H) 50 mm x 50 mm
- Weight
55 g
- Contact type
1 breaker
- Min. temperature setting
5 °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2559263 Eberle 191810153602 UTE 1001-RAL9016-G-50 Indoor thermostat Flush mount 1 pc(s)
Description

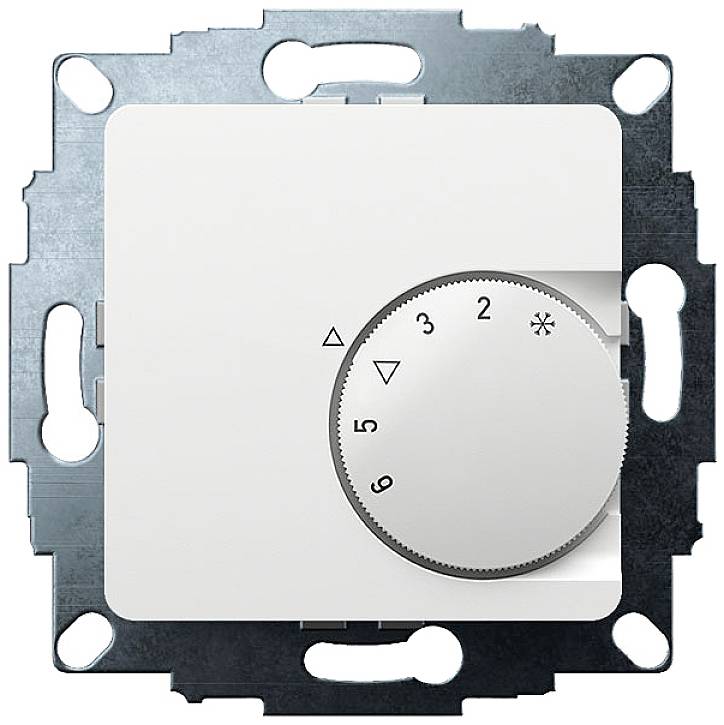

Electromechanical flush-mounted room temperature controller for controlling or monitoring temperatures in living rooms, offices and hotels. Suitable for all common switch programs. Active white glossy, 50x50 cover with button. Suitable for water-guided and electrical heating systems. A very small switching difference is achieved through the thermal feedback. When the watch clamp is connected, the temperature is controlled to a temperature that is approx. 4K lower. Adjustable range restriction in the adjustment knob as heating cost brake. A captive screw with threaded insert to secure the housing cover and convenient plug-in terminals make it easy to install. Mounting in 55er flush-mounted socket.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Controller subcleaning insert
- Regulator cover
- Setpoint control button
- User manual.
