Buy Eberle 191810223502 UTE 1002-RAL9010-G-50 Indoor thermostat Flush mount Heating 1 pc(s)

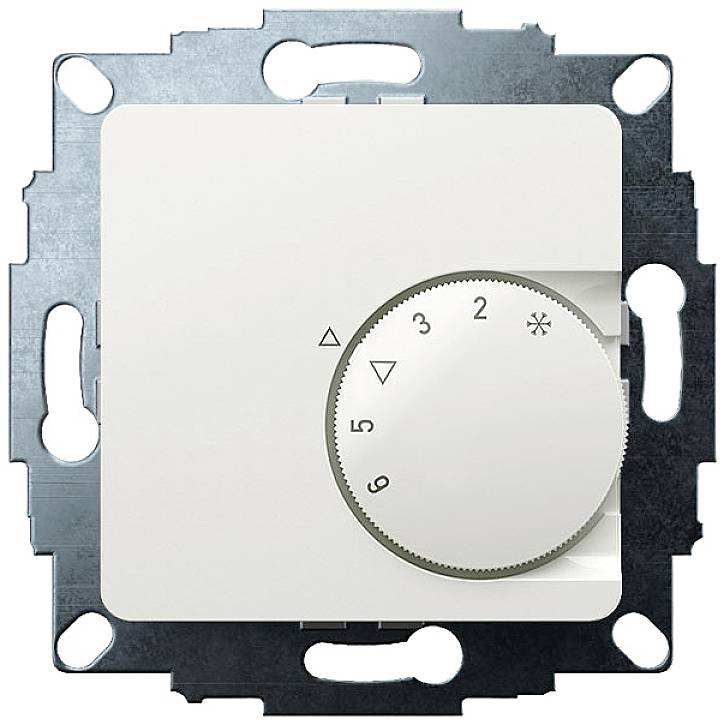

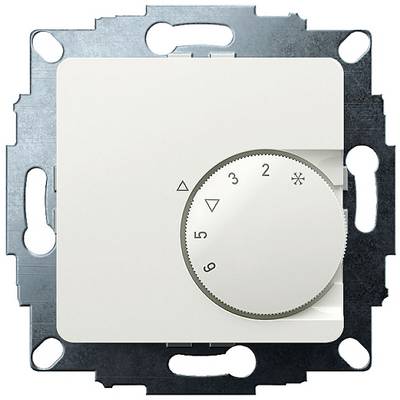

A wall-mounted thermostat with a rotary dial for temperature adjustment. Numbers and symbols for the marked temperature display are visible.

Show alternatives

Sales and shipping:

Number

Piece(s)

Total (€ 58.82 / piece)

€

Report legal concerns

Highlights & Details

Eberle UTE 1002-RAL9010-G-50 UP-room controller

In-wall room controller5 - 30 C.AC 24 VSPDT-NC10 A at DC 24 V breaking capacity 100 W.Temperature reduction approx. 4K

Technical specifications

Product type: Indoor thermostat

Operation type: electronical

Max. temperature setting: 30 °C

Temperature settings: 5 up to 30 °C

Display: No

Remote sensor: No

Compatible with: Underfloor heating
Heaters

Mounting type: Flush mount

Power supply (LOV): mains-powered

Operating voltage: 24 V

Contact load capacity: 10 A

Factory colour: Polar white glossy

Similar RAL: 9010

Width: 50 mm

Height: 50 mm

: IP30

Dim: (W x H) 50 mm x 50 mm

Type: Heating

Weight: 55 g

Contact type: 1 breaker

Min. temperature setting: 5 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2559273 Eberle 191810223502 UTE 1002-RAL9010-G-50 Indoor thermostat Flush mount Heating 1 pc(s)

Description

Electromechanical flush-mounted room temperature controller for controlling or monitoring temperatures in living rooms, offices and hotels. Suitable for all common switch programs. Polar white glossy, 50 x 50 cover with button. Suitable for water-guided and electrical heating systems. A very small switching difference is achieved through the thermal feedback. When the watch clamp is connected, the temperature is controlled to a temperature that is approx. 4K lower. Adjustable range restriction in the adjustment knob as heating cost brake. A captive screw with threaded insert to secure the housing cover and convenient plug-in terminals make it easy to install. Mounting in 55er flush-mounted socket.

This text is machine translated.
