Eberle 191810353602 UTE 1003-RAL9016-G-50 Indoor thermostat Flush mount Heating 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 53.77 / piece)
€ 53.77
plus VAT.
14-day return policy included
Highlights & Details
Eberle UTE 1003-RAL9016-G-50 UP-room controller
- In-wall room controller5 - 30 C.AC 230 V.SPDT-NC10 A
Technical specifications
- Product type
Indoor thermostat
- Operation type
electronical
- Max. temperature setting
30 °C
- Temperature settings
5 up to 30 °C
- Display
No
- Remote sensor
No
- Compatible with
Underfloor heating
Heaters
- Mounting type
Flush mount
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Contact load capacity
10 A
- Factory colour
Active white (glossy)
- Similar RAL
9016
- Width
50 mm
- Height
50 mm
IP30
- Dim
(W x H) 50 mm x 50 mm
- Type
Heating
- Weight
55 g
- Contact type
1 breaker
- Min. temperature setting
5 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2559285 Eberle 191810353602 UTE 1003-RAL9016-G-50 Indoor thermostat Flush mount Heating 1 pc(s)
Description

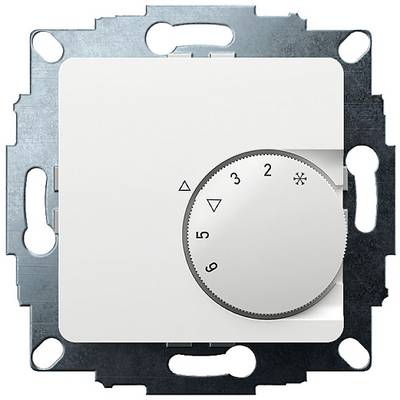

Electromechanical flush-mounted room temperature controller for controlling or monitoring temperatures in living rooms, offices and hotels. Suitable for all common switch programs. Active white glossy, 50 x 50 cover with button. Suitable for water-guided and electrical heating systems. A very small switching difference is achieved through the thermal feedback. Adjustable range restriction in the adjustment knob as heating cost brake. A captive screw with threaded insert to secure the housing cover and convenient plug-in terminals make it easy to install. Mounting in 55er flush-mounted socket.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Controller subcleaning insert
- Regulator cover
- Setpoint control button
- User manual.
