Eberle 191811224302 UTE 1012-Anthrazit-55 Indoor thermostat Flush mount Heating 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 77.30 / piece)
€
Highlights & Details

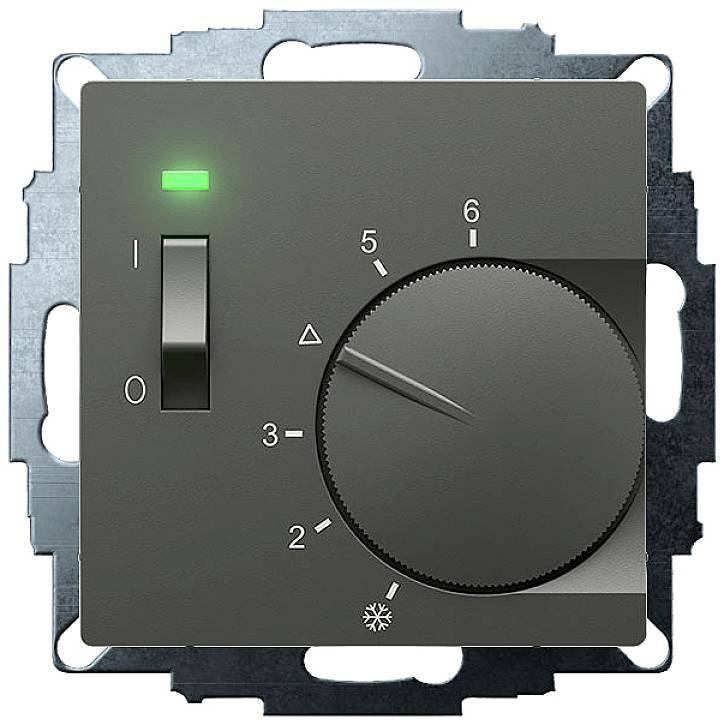

Eberle UTE 1012-anthracite-55 UP-room regulator
- In-wall room controller5 - 30 C.AC 24 VSPDT-NC10 AAt DC 24 V breaking capacity 100 W.Temperature reduction approx. 4K"On/off" switchDisplay controller "On"
Technical specifications
- Operation type
electronical
- Max. temperature setting
30 °C
- Temperature settings
5 up to 30 °C
- Display
No
- Remote sensor
No
- Mounting type
Flush mount
- Power supply (LOV)
mains-powered
- Operating voltage
24 V
- Contact load capacity
10 A
- Factory colour
Anthracite (matt)
- Width
55 mm
- Height
55 mm
IP30
- Dim
(W x H) 55 mm x 55 mm
- Contact type
1 breaker
- Compatible with
Underfloor heating
Heaters
- Type
Heating
- Min. temperature setting
5 °C
- Weight
55 g
- Product type
Indoor thermostat
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2559347 Eberle 191811224302 UTE 1012-Anthrazit-55 Indoor thermostat Flush mount Heating 1 pc(s)
Description
Electromechanical flush-mounted room temperature controller for controlling or monitoring temperatures in living rooms, offices and hotels. Suitable for all common switch programs. Anthracite, 55x55 cover with button. Suitable for water-guided and electrical heating systems. A very small switching difference is achieved through the thermal feedback. When the watch clamp is connected, the temperature is controlled to a temperature that is approx. 4K lower. With LED status indicators. Adjustable range restriction in the adjustment knob as heating cost brake. A captive screw with threaded insert to secure the housing cover and convenient plug-in terminals make it easy to install. Mounting in 55er flush-mounted socket.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Controller subcleaning insert
- Regulator cover
- Setpoint control button
- User manual.
