Eberle 191870554202 UTE 1770-RAL9016-M-55 Indoor thermostat Flush mount Heating / cooling 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 70.58 / piece)
€ 70.58
plus VAT.
Highlights & Details

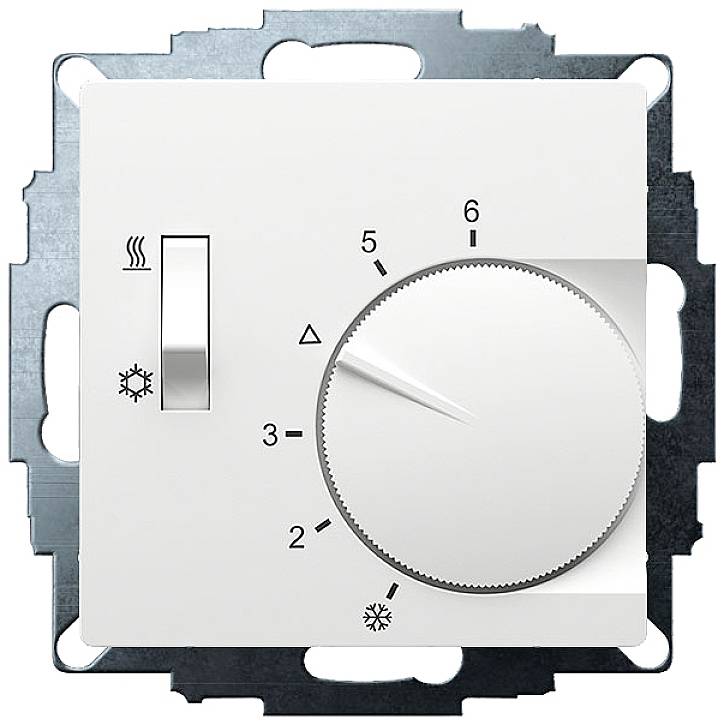

Eberle UTE 1770-RAL9016-M-55 UP-room controller
- In-wall room controller5 - 30 C.AC 230 V.SPDT-CO10A/5AHeating / cooling switch
Technical specifications
- Product type
Indoor thermostat
- Operation type
electronical
- Max. temperature setting
30 °C
- Temperature settings
5 up to 30 °C
- Display
No
- Remote sensor
No
- Compatible with
Underfloor heating
Heaters
- Mounting type
Flush mount
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Contact load capacity
10 A
- Factory colour
Active white (matt)
- Similar RAL
9016
- Width
55 mm
- Height
55 mm
IP30
- Dim
(W x H) 55 mm x 55 mm
- Type
Heating / cooling
- Weight
55 g
- Contact type
1 change-over
- Min. temperature setting
5 °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2559368 Eberle 191870554202 UTE 1770-RAL9016-M-55 Indoor thermostat Flush mount Heating / cooling 1 pc(s)
Description
Electromechanical flush-mounted room temperature controller for controlling or monitoring temperatures in living rooms, offices and hotels. Suitable for all common switch programs. Active white matt, 55x55 cover with button. Suitable for water-guided and electrical heating systems. A very small switching difference is achieved through the thermal feedback. Adjustable range restriction in the adjustment knob as heating cost brake. A captive screw with threaded insert to secure the housing cover and convenient plug-in terminals make it easy to install. Mounting in 55er flush-mounted socket.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Controller subcleaning insert
- Regulator cover
- Setpoint control button
- User manual.
