Name: Eberle 527825455504 UTE 4100-Rw-RAL9010-G-55 Indoor thermostat Flush mount Heating/cooling 1 pc(s)
Brand: Eberle
SKU: 3192692
Availability: BackOrder

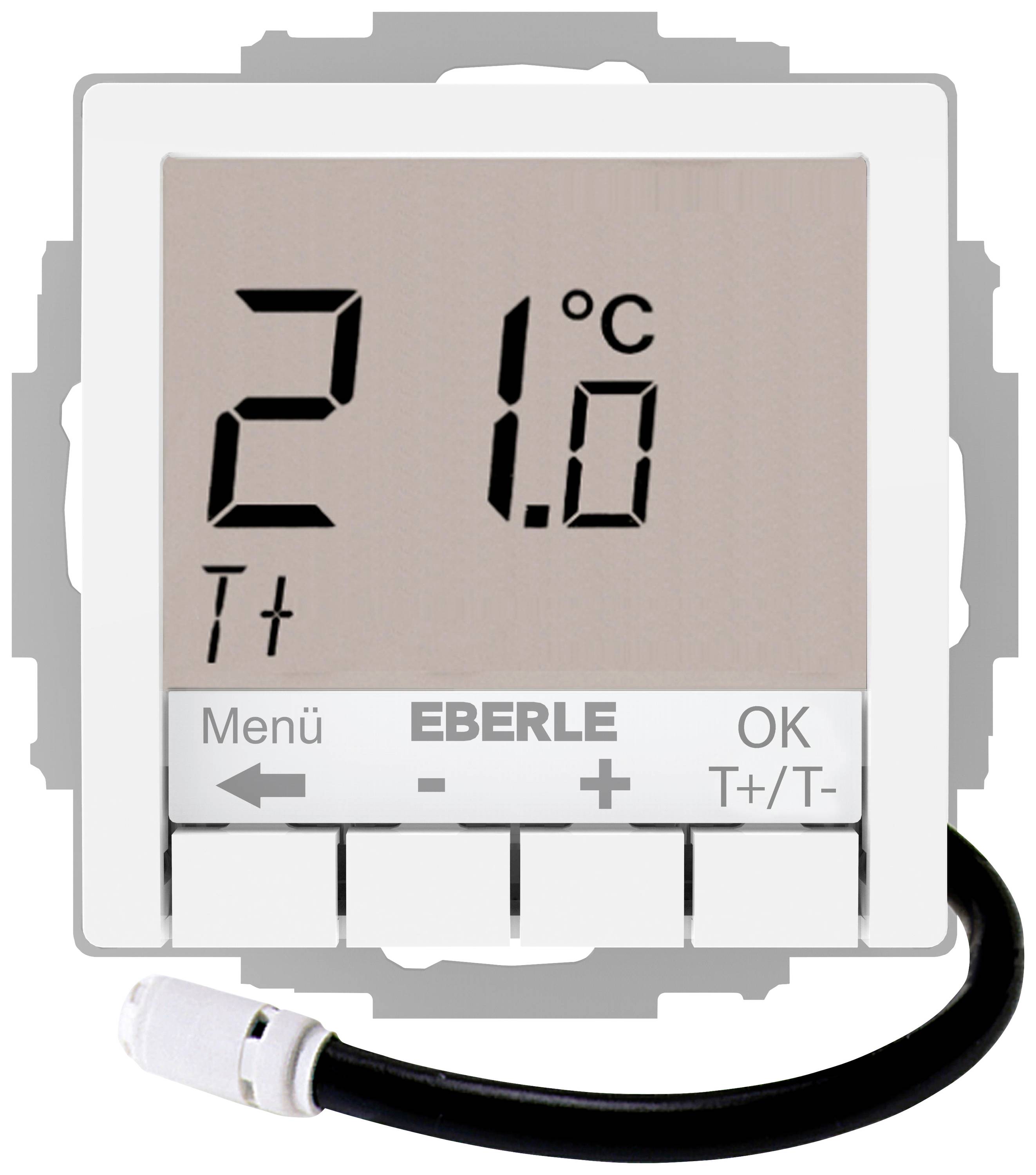

Digital Eberle thermostat displaying 21°C. Buttons for menu, OK, and temperature control.

Datasheet (PDF)

Dispatches on Wed 28 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 129.99 / piece)

€ 129.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Eberle UTE 4100-RW-RAL9010-G-55 UP thermostat inset

Flexible - adjustable time programs
Energy efficient - optimum-start function
Transparent - power consumption display
Versatile - heating/cooling application
Easy installation - programmable via display menu and with removed control panel
Digital - optimally readable display with background lighting

Technical specifications

Switching current: Heating: 10 mA … 5 (2) A cooling

Product type: Indoor thermostat

Operation type: electronical

Max. temperature setting: 30 °C

Temperature settings: 5 up to 30 °C

Frost protection: Yes

Display: Yes

Remote sensor: Yes (optional)

Compatible with: Underfloor heating
Heaters
Air conditioners

Mounting type: Flush mount

Power supply (LOV): mains-powered

Operating voltage: 230 V

Nighttime drop: Yes

Factory colour: White (glossy)

Similar RAL: 9016

Width: 55 mm

Height: 55 mm

Dim: (W x H) 55 mm x 55 mm

Type: Heating/cooling

Contact type: 1 change-over

Min. temperature setting: 5 °C

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3192692 Eberle 527825455504 UTE 4100-Rw-RAL9010-G-55 Indoor thermostat Flush mount Heating/cooling 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3192692 Eberle 527825455504 UTE 4100-Rw-RAL9010-G-55 Indoor thermostat Flush mount Heating/cooling 1 pc(s)

Description

UTE 4100/4800-RW in conjunction with actuators for floor heating controls the room temperature by means of a converter output (heating/cooling switch) – Ideal in combination with heat pumps.

This text is machine translated.

Features

Nominal voltage AC 230 V
White backlighting
Single-line text display for simplified operation
Backlight (off, continuous, only after pressing a button)
Simple switching between 2 temperatures (e. g. comfort and lowering temperature)
ECO input for activating a freely adjustable temperature, for example for night reduction
Also programmable with removed control panel
Turn-off function, press the Menu button for 10 seconds
Short-time timer (Party) for changing the temperature on an hourly basis
Energy consumption display (switch-on time * costs) for the last 2 days, last week, month or year (mainly for electric heating)
Frost protection
Adjustable range of the temperature can be limited
Temperature display can be adjusted to local conditions
Anti-theft protection
Adjustable operator languages
PWM or 2 point controller
Adaptation to valves open without current
Adjustable heating/cooling
Valve protection (for R-version)
.

Hints

Exclusive 2 Year Warranty with Conrad Electronic* (Terms and Conditions Apply)

Description

Features

Nominal voltage AC 230 V
White backlighting
Single-line text display for simplified operation
Backlight (off, continuous, only after pressing a button)
Simple switching between 2 temperatures (e. g. comfort and lowering temperature)
ECO input for activating a freely adjustable temperature, for example for night reduction
Also programmable with removed control panel
Turn-off function, press the Menu button for 10 seconds
Short-time timer (Party) for changing the temperature on an hourly basis
Energy consumption display (switch-on time * costs) for the last 2 days, last week, month or year (mainly for electric heating)
Frost protection
Adjustable range of the temperature can be limited
Temperature display can be adjusted to local conditions
Anti-theft protection
Adjustable operator languages
PWM or 2 point controller
Adaptation to valves open without current
Adjustable heating/cooling
Valve protection (for R-version)
.
