Buy Eberle 547816053502 UTE 2800-R-RAL9010-G-50 Indoor thermostat Flush mount 1 pc(s)

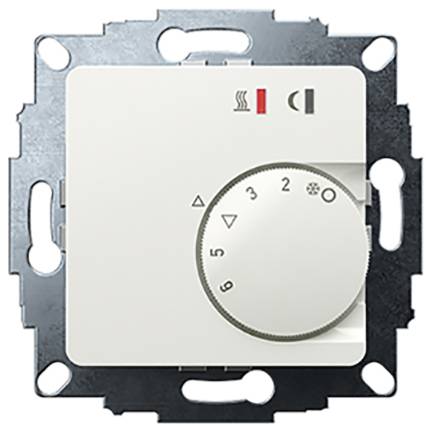

A thermostat with a rotary dial, scale from 1 to 5, suitable for heating control. Background shows metal mounting frame.

Dispatches on Thu, 24 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 72.26 / piece)

€ 72.26

plus VAT.

Report legal concerns

Highlights & Details

EBERLE UTE 2800-R-RAL9010-G-50 UP-THERMOSTAT

FLUSH-MOUNTED thermostat as room controller, 5 - 30 C, 230 V AC16 A relay output 1 closerPWM or 2 point control can be set

Technical specifications

Product type: Indoor thermostat

Operation type: electronical

Max. temperature setting: 30 °C

Temperature settings: 5 up to 30 °C

Frost protection: Yes

Display: No

Remote sensor: No

Compatible with: Underfloor heating
Heaters

Mounting type: Flush mount

Power supply (LOV): mains-powered

Operating voltage: 230 V

Contact load capacity: 16 A

Nighttime drop: Yes

Factory colour: Polar white glossy

Similar RAL: 9010

Width: 50 mm

Height: 50 mm

: IP30

Dim: (W x H) 50 mm x 50 mm

Weight: 105 g

Contact type: 1 maker

Min. temperature setting: 5 °C

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2559427 Eberle 547816053502 UTE 2800-R-RAL9010-G-50 Indoor thermostat Flush mount 1 pc(s)

Description

Electronic flush-mounted thermostat is suitable for controlling electric heaters, heat/circulation pumps etc... Regulate or monitor temperatures in living rooms, offices and hotels. Suitable for all common switch programs. Polar white glossy, 50x50 cover with button. Various parameters can be set on the device: Temperature reduction, current as well as control algorithm (pulse width modulation or 2 point control). When the watch clamp is connected, the temperature is controlled to a lower level (adjustable 3.5C / 6C / 9C). With LED status indicators. Power switch (on/off) can be operated via adjustment wheel. Adjustable range restriction in the adjustment knob as heating cost brake. A captive screw with threaded insert to secure the housing cover and convenient plug-in terminals make it easy to install. Mounting in 55er flush-mounted socket.

This text is machine translated.
