Eberle 547816253502 UTE 2800-L-RAL9010-G-50 Indoor thermostat Flush mount Heating 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 88.23 / piece)
€ 88.23
plus VAT.
14-day return policy included
Highlights & Details

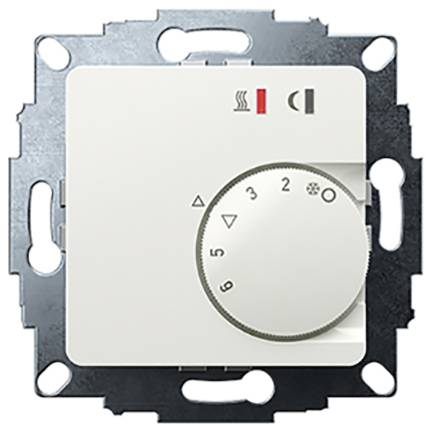

Eberle UTE 2800-L-RAL9010-G-50 UP-thermostat
- UP-Thermostat 5 - 30 C with limiting function 10 - 40 C.AC 230 V.16 A1 NOCPWM or 2 point controlPower switchTALED indicatorsRemote sensors
Technical specifications
- Product type
Indoor thermostat
- Operation type
electronical
- Max. temperature setting
30 °C
- Temperature settings
5 up to 30 °C
- Frost protection
Yes
- Display
No
- Remote sensor
Yes
- Compatible with
Underfloor heating control
- Mounting type
Flush mount
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Contact load capacity
16 A
- Nighttime drop
Yes
- Factory colour
Polar white glossy
- Similar RAL
9010
- Width
50 mm
- Height
50 mm
IP30
- Dim
(W x H) 50 mm x 50 mm
- Type
Heating
- Weight
240 g
- Contact type
1 maker
- Min. temperature setting
5 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2559416 Eberle 547816253502 UTE 2800-L-RAL9010-G-50 Indoor thermostat Flush mount Heating 1 pc(s)
Description
Electronic flush-mounted thermostat is suitable for controlling electric floor and wall/ceiling heating. Control of room temperatures by means of internal sensors and monitoring of floor temperature in living rooms, offices and hotels. Suitable for all common switch programs. Polar white glossy, 50x50 cover with button. Various parameters can be set on the device: Remote sensor, minimum and maximum ground temperature, limit, temperature reduction, current as well as control algorithm (pulse width modulation or 2 point control). When the watch clamp is connected, the temperature is controlled to a lower level (adjustable 3.5C / 6C / 9C). With LED status indicators. Power switch (on/off) can be operated via adjustment wheel. Adjustable range restriction in the adjustment knob as heating cost brake. A captive screw with threaded insert to secure the housing cover and convenient plug-in terminals make it easy to install. With 4 m remote sensor included in delivery. Mounting in 55er flush-mounted socket.
This text is machine translated.
This text is machine translated.
Features
- Power switchTALED indicatorsIncl. Remote sensor 4 m.
Scope of delivery
- Controller subcleaning insert
- Regulator cover
- Setpoint control button
- User manual.
