Name: econ connect SIL socket (standard) No. of rows: 1 Pins per row: 20 BLW1X20 1 pc(s)
Brand: econ connect
SKU: 1492279
Availability: InStock

A black connector socket with 20 golden pins, used for electronic connections on printed circuit boards.

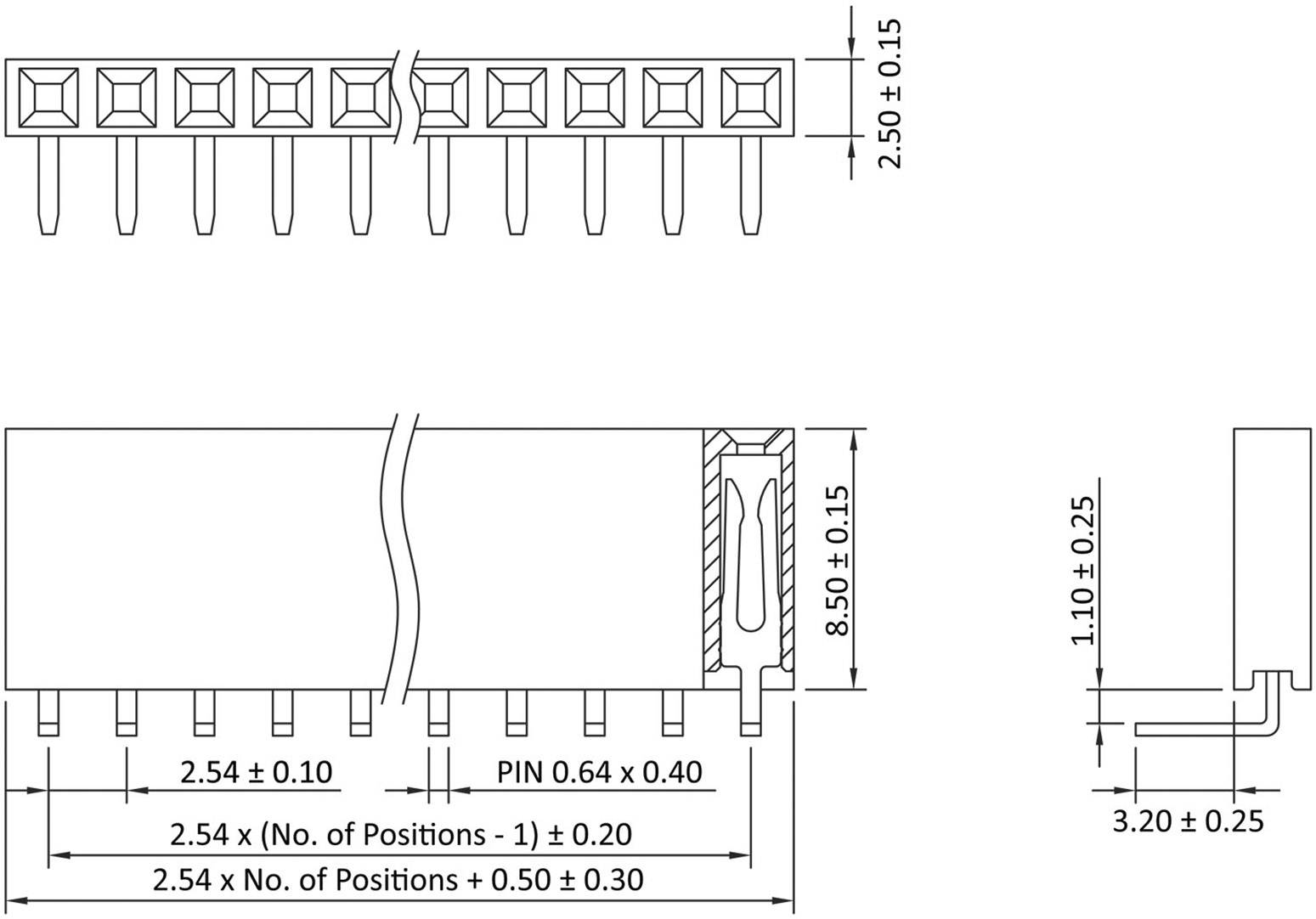

Technical drawing of a connector with detailed dimensions in millimetres, showing pin spacing, pin length, and overall height of the component.

1/2

Image similar

Connector type

Power strip, right angle

Product type

SIL socket (standard)

No. of rows

Total number of pins

2.54 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Tue 10 Nov

91 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 0.32 / piece)

€ 0.32

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Socket strip, angled RM 2.54 mm

Content 1 pc(s)
No. of rows 1
Pins per row 20

Our service for you

Technical specifications

Connector type: Power strip, right angle

Product type: SIL socket (standard)

No. of rows: 1

Pins per row: 20

Total number of pins: 20

CS: 2.54 mm

Connection: Print

Factory colour: Black

Pin shape: Rectangular

Nominal voltage: 1000 V AC

Nominal current: 3 A

Nominal current - rounded value: 3 A

Contact surface: Gold plated

Contact material: Copper alloy

Case material: PBT, UL94V-0

Pin Ø: 0.64 mm

Pin length (PCB): 3.50 mm

Separable: No

Dim: (L x W x H) 51.3 x 51.3 x 8.5 mm

Connector orientation: Parallel (to the PCB)

Manufacturer part #: BLW1X20

Industrial packaging: No

Content: 1 pc(s)

Width: 51.3 mm

Height: 8.5 mm

Length: 51.3 mm

RoHS-compliant: Yes

Max. temperature: 105 °C

Min. temperature: -40 °C

Type: BLW1X20

Documents & Downloads

Datasheet

Datasheet 1492279 econ connect SIL socket (standard) No. of rows: 1 Pins per row: 20 BLW1X20 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1492279 econ connect SIL socket (standard) No. of rows: 1 Pins per row: 20 BLW1X20 1 pc(s)
