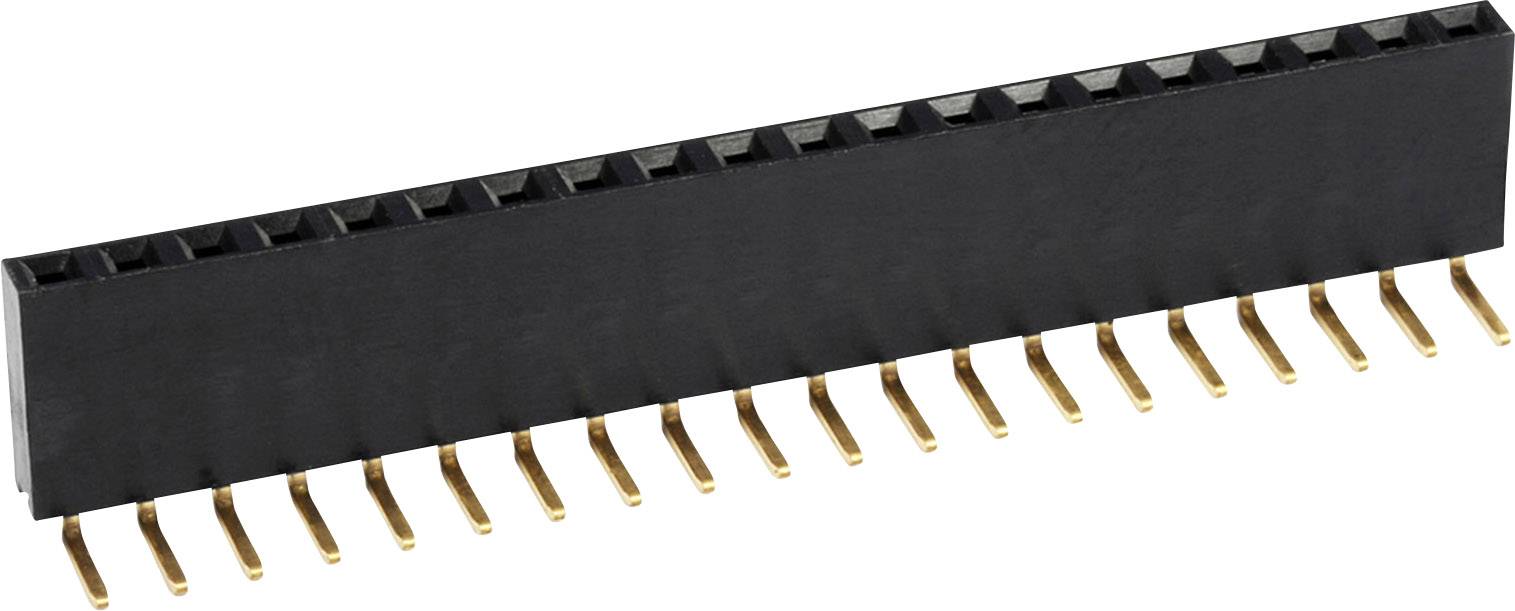

econ connect SIL socket (standard) No. of rows: 1 Pins per row: 8 BLW1X8 1 pc(s)
EAN:
Part number:
Item no:
Connector type
Power strip, right angle
No. of rows
1
Total number of pins
8
CS
2.54 mm
Pin shape
Rectangular
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
20
-
€ 0.19
60
5% = € 0.01
€ 0.18
100
11% = € 0.02
€ 0.17
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 20
Total (€ 0.19 / piece)
€ 3.80
plus VAT.
14 days return policy included
Highlights & Details
Socket strip, angled RM 2.54 mm
- Content 1 pc(s)
- No. of rows 1
- Pins per row 8
Our service for you
Technical specifications
- Connector type
Power strip, right angle
- No. of rows
1
- Pins per row
8
- Total number of pins
8
- CS
2.54 mm
- Connection
Print
- Factory colour
Black
- Pin shape
Rectangular
- Nominal voltage
1000 V AC
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact surface
Gold plated
- Contact material
Copper alloy
- Case material
PBT, UL94V-0
- Pin Ø
0.64 mm
- Pin length (PCB)
3.50 mm
- Separable
No
- Dim
(L x W x H) 20.82 x 20.82 x 8.5 mm
- Connector orientation
Parallel (to the PCB)
- Manufacturer part #
BLW1X8
- Content
1 pc(s)
- Height
8.5 mm
- Length
20.82 mm
- Width
20.82 mm
- Industrial packaging
No
- Type
BLW1X8
- RoHS-compliant
Yes
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Product type
SIL socket (standard)
Documents & Downloads

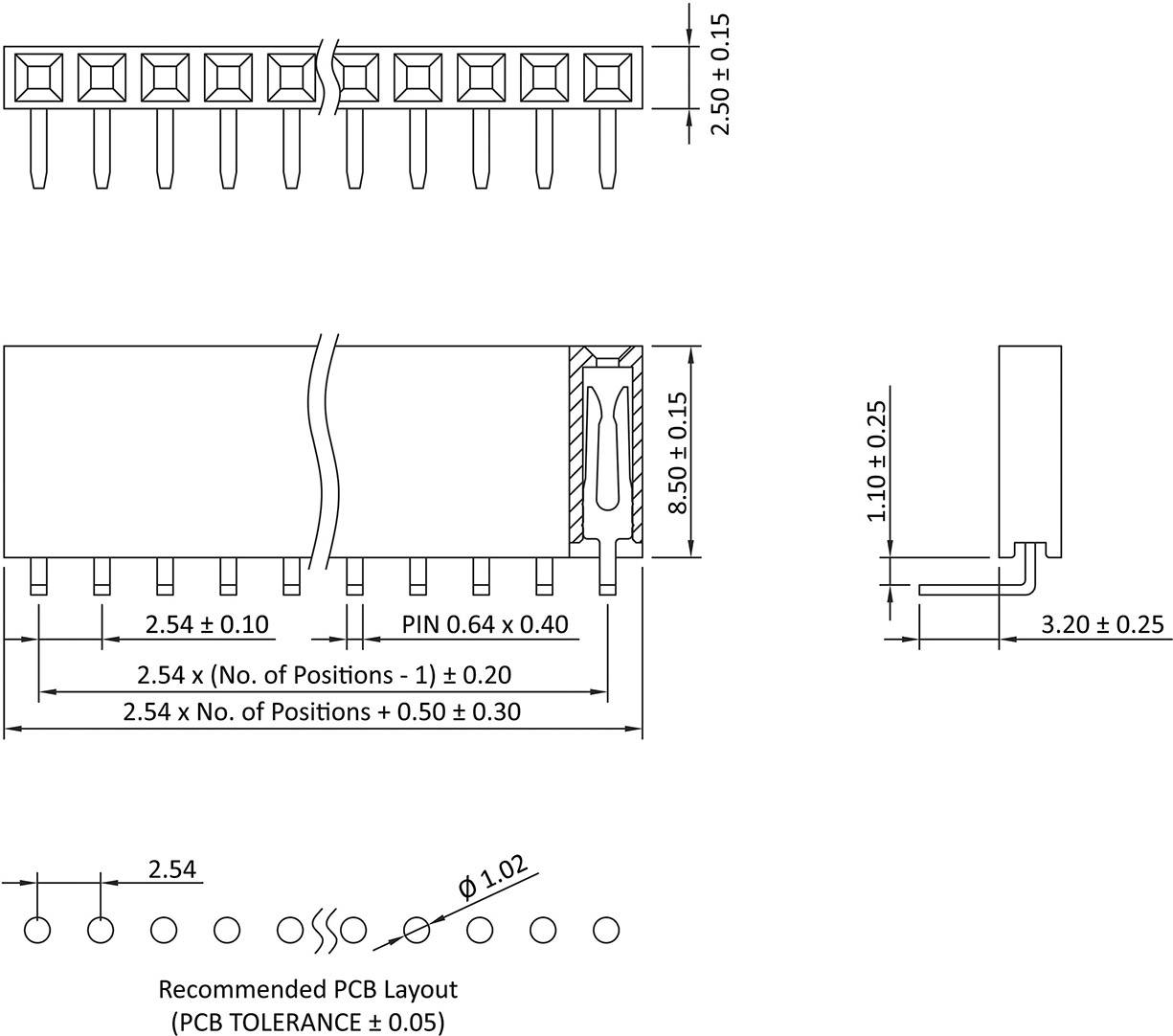

Datasheet
Datasheet 1492356 econ connect SIL socket (standard) No. of rows: 1 Pins per row: 8 BLW1X8 1 pc(s)
