Name: econ connect WS10SKVL Pin strip Total number of pins 10 No. of rows 2 1 pc(s)
Brand: econ connect
SKU: 1303923
Availability: InStock

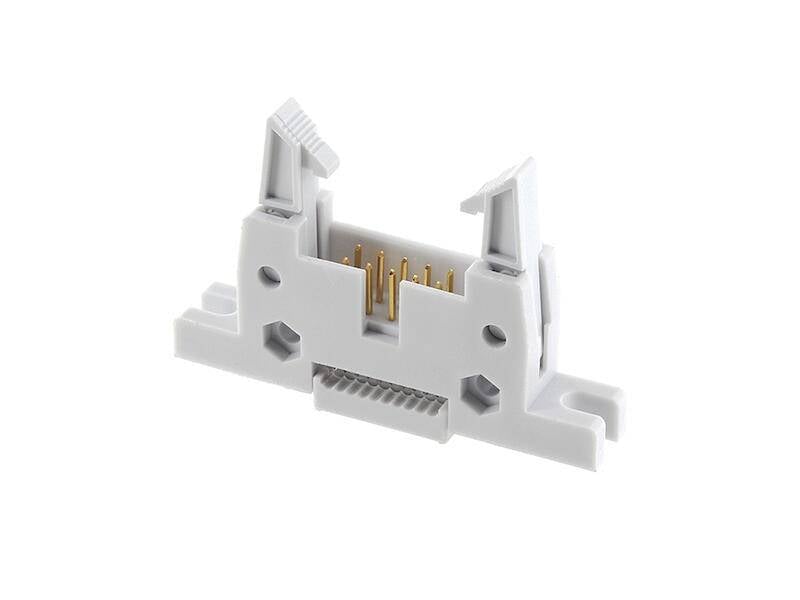

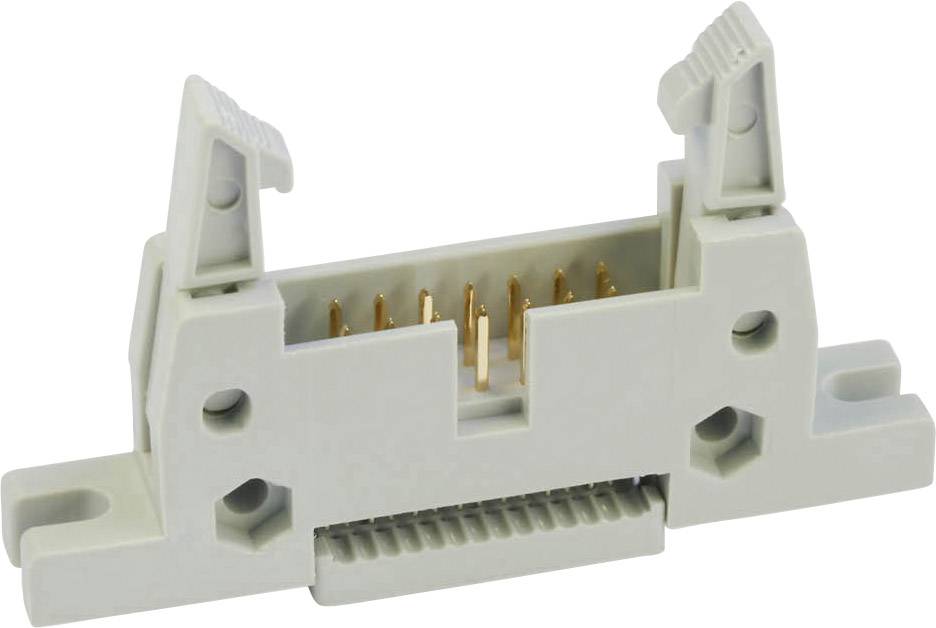

A grey-white plug connector with golden contacts, used for electronic connections. Locking mechanisms on the left and right sides.

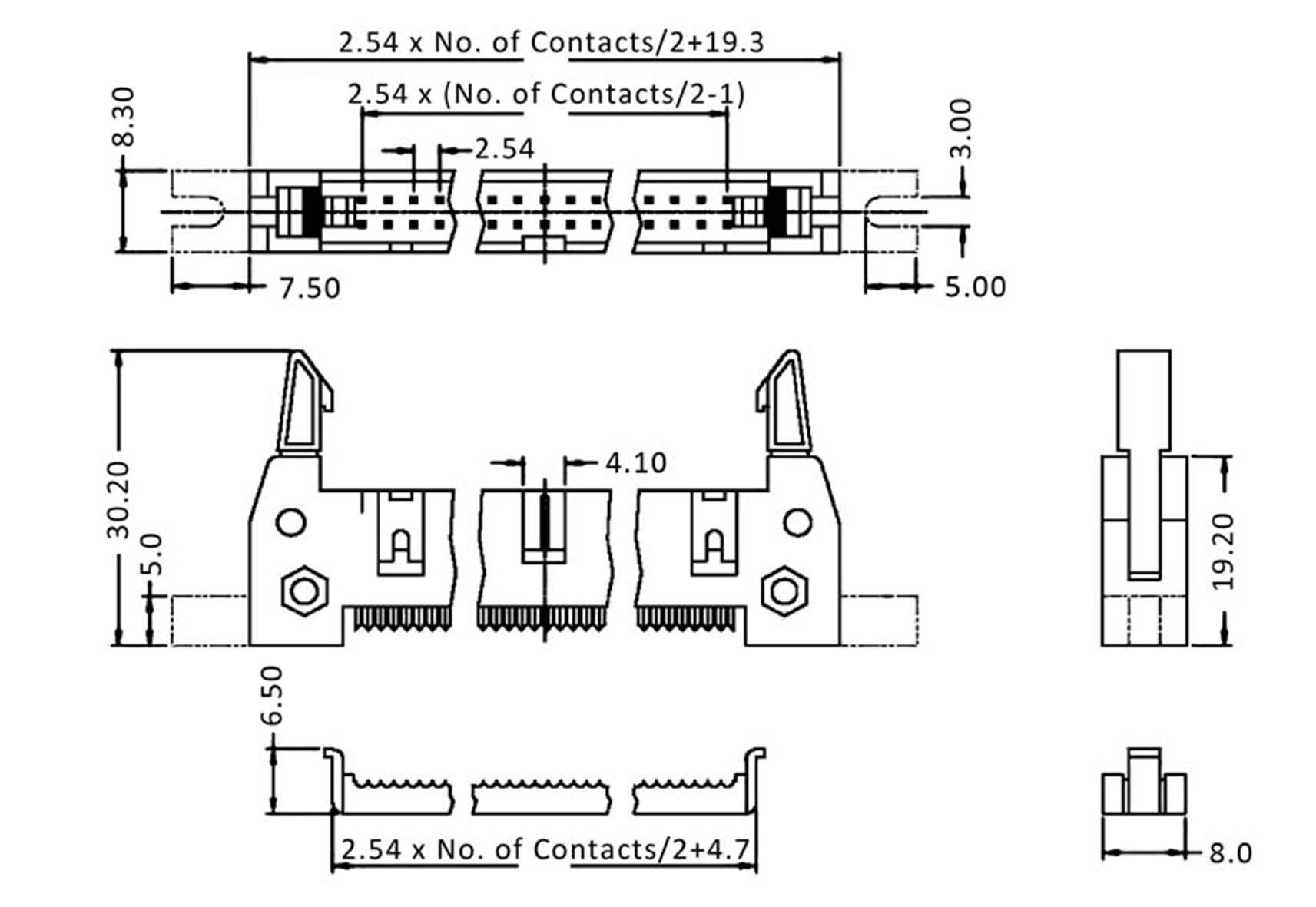

Technical drawing of a connector with dimensions. Dimensions are specified in millimetres: width 19.2 mm, height 8 mm.

1/2

Image similar

Product type

Pin strip

Total no. of pins

Connector type

Pin strip, straight

2.54 mm

Content

1 pc(s)

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Fri 6 Nov

87 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 3.49 / piece)

€ 3.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Connector strip/trough

No. of rows 2
Content 1 pc(s)

Our service for you

Technical specifications

Product type: Pin strip

Total no. of pins: 10

Connector type: Pin strip, straight

Features: + locking mechanism

Connector orientation: Perpendicular (to the PCB)

No. of rows: 2

CS: 2.54 mm

Nominal current: 3 A

Nominal current - rounded value: 3 A

Pins per row: 5

Connection: Cut & Clip

Factory colour: Light grey

Case material: PBT, UL94V-0

Manufacturer part #: WS10SKVL

Content: 1 pc(s)

Contact material: Copper alloy

Width: 32 mm

Height: 30.2 mm

Length: 8.3 mm

Max. temperature: +105 °C

Min. temperature: -55 °C

Type: WS10SKVL

Dim: (L x W x H) 8.3 x 32 x 30.2 mm

Nominal voltage: 1000 V AC

Certification marks: DIN 41 651

Number of pins: 10

RoHS-compliant: Yes

Contact surface: Gold plated
