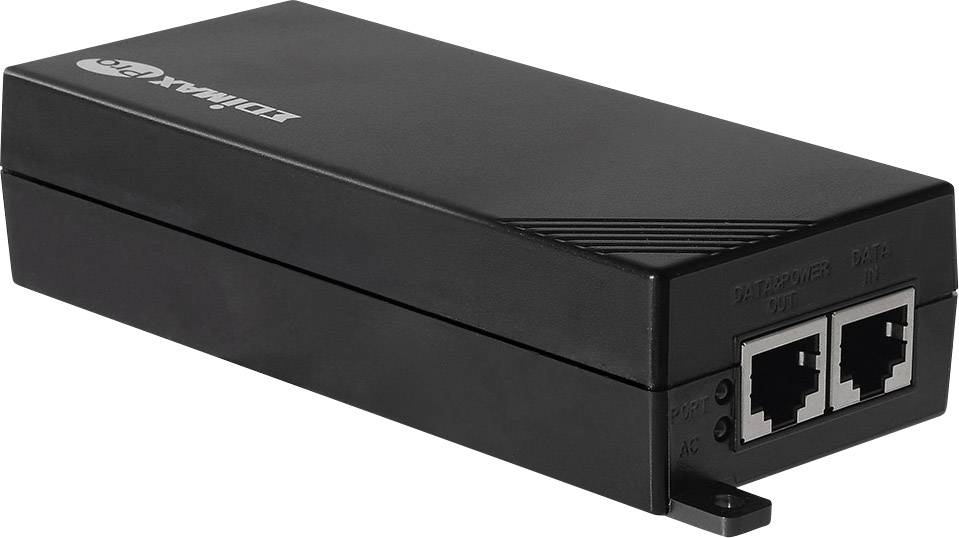

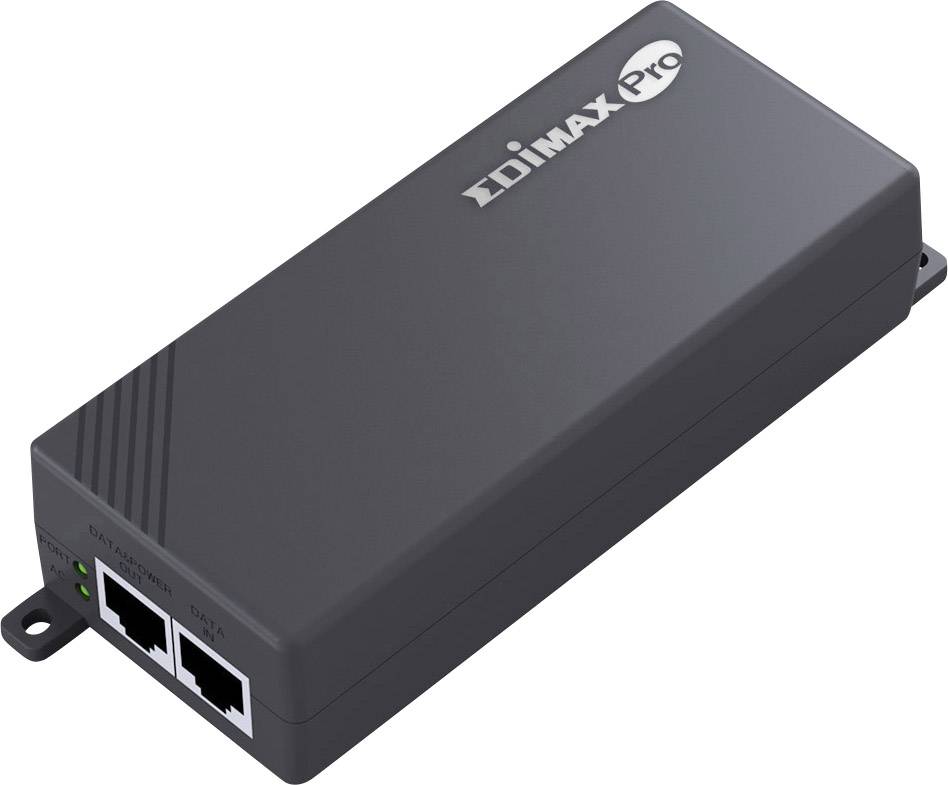

EDIMAX GP-101IT PoE injector 1 GBit/s IEEE 802.3at (25.5 W), IEEE 802.3af (12.95 W)

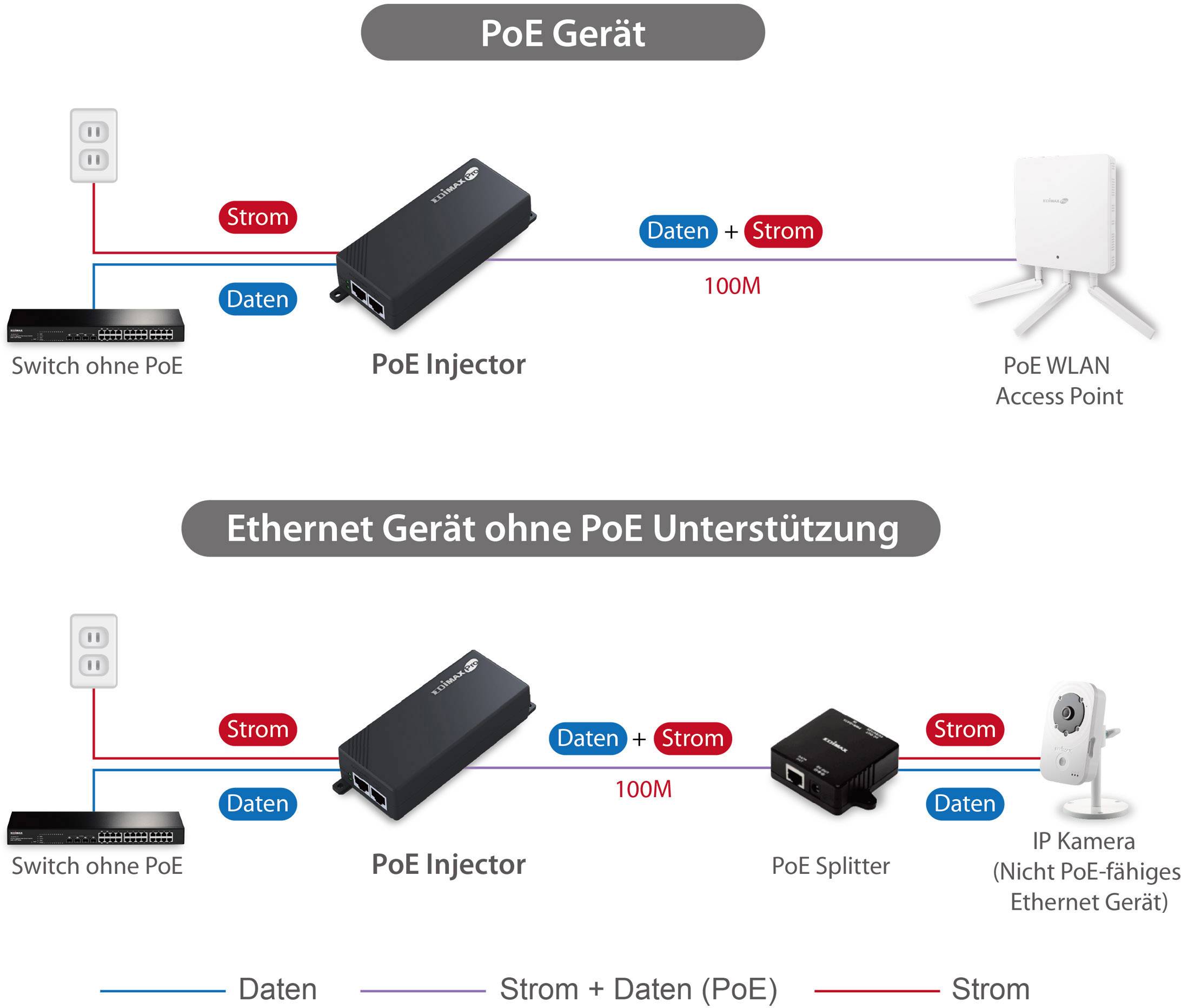

The Edimax GP-101 IT is a PoE injector, that not only a cost-effective solution for power distribution, but also integrate smoothly into the existing LAN infrastructure. With the help of current injectors are power and data of up to 30 W, by a switch or router without PoE function come together and then through the Ethernet cabling to IEEE 802.3at/af-compliant products, for example, to PoE cameras. In this way, the high investment in new hardware, since no additional PoE-switches must be purchased.

Standard IEEE 802.3at/af Power over Ethernet

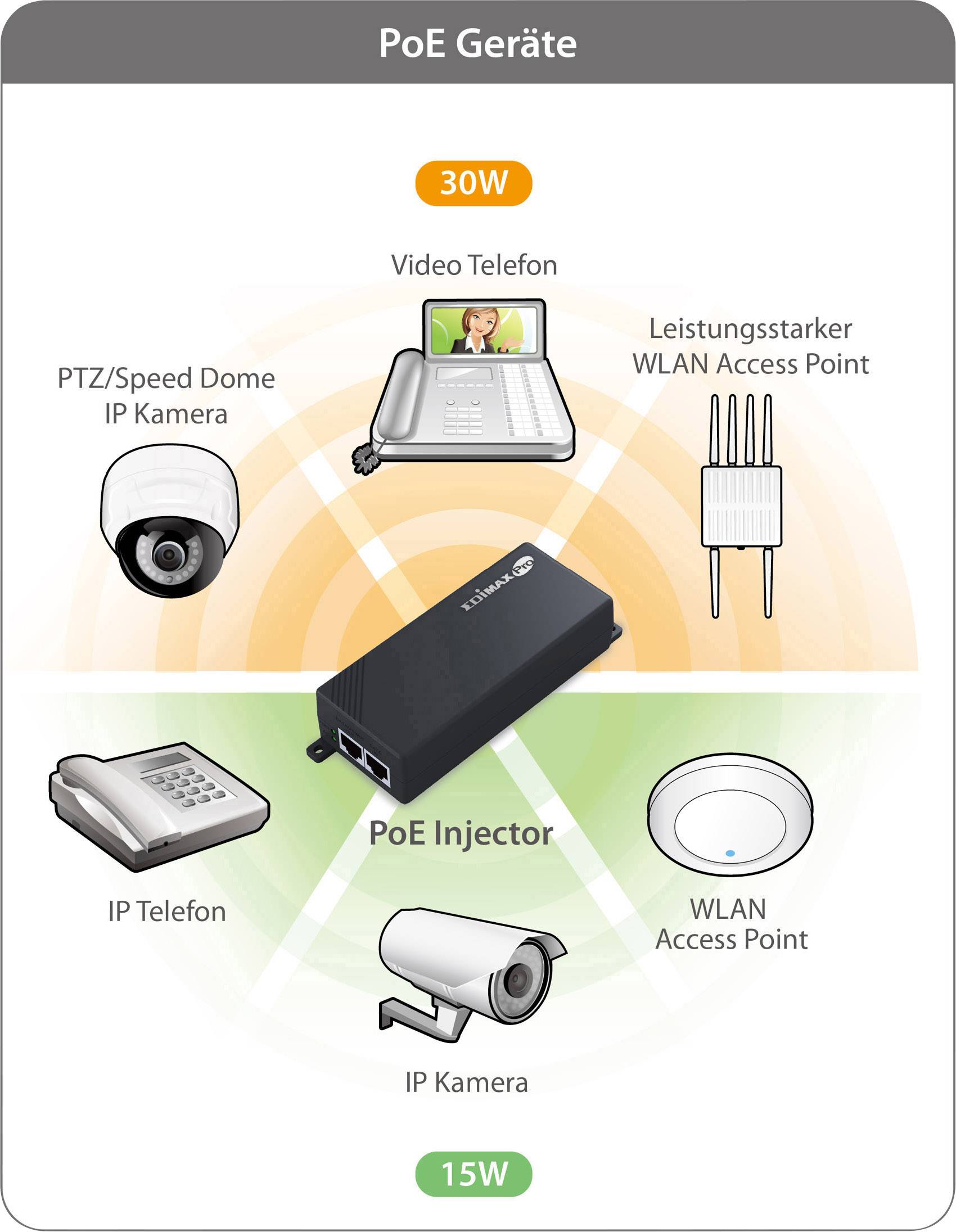

By adding the function IEEE 802.3at/af PoE to a switch or router without PoE Ethernet function, the GP-101 IT directly with any IEEE 802.3at/af-compliant end nodes, e.g. PTZ (pan, tilt, zoom) network cameras, PTZ Speed Dome, Voice over IP (VoIP) telephones with colored touch screen or multi-channel WLAN access points, the PoE standard IEEE 802.3at/af support.

Greater cost efficiency and easy installation
With the PoE technology over a single Ethernet cable, both data and power. With the GP-101 IT, there is no additional effort for the laying of cables and no extension cable outlets on the wall needed to achieve or other hard-to-reach areas. Thus, the cost of the installation costs and the commissioning is much easier.

Flexible & reliable power supply
The PoE short-circuit protection is a guard, in order to protect the inline network equipment from damage.

This text is machine translated.
