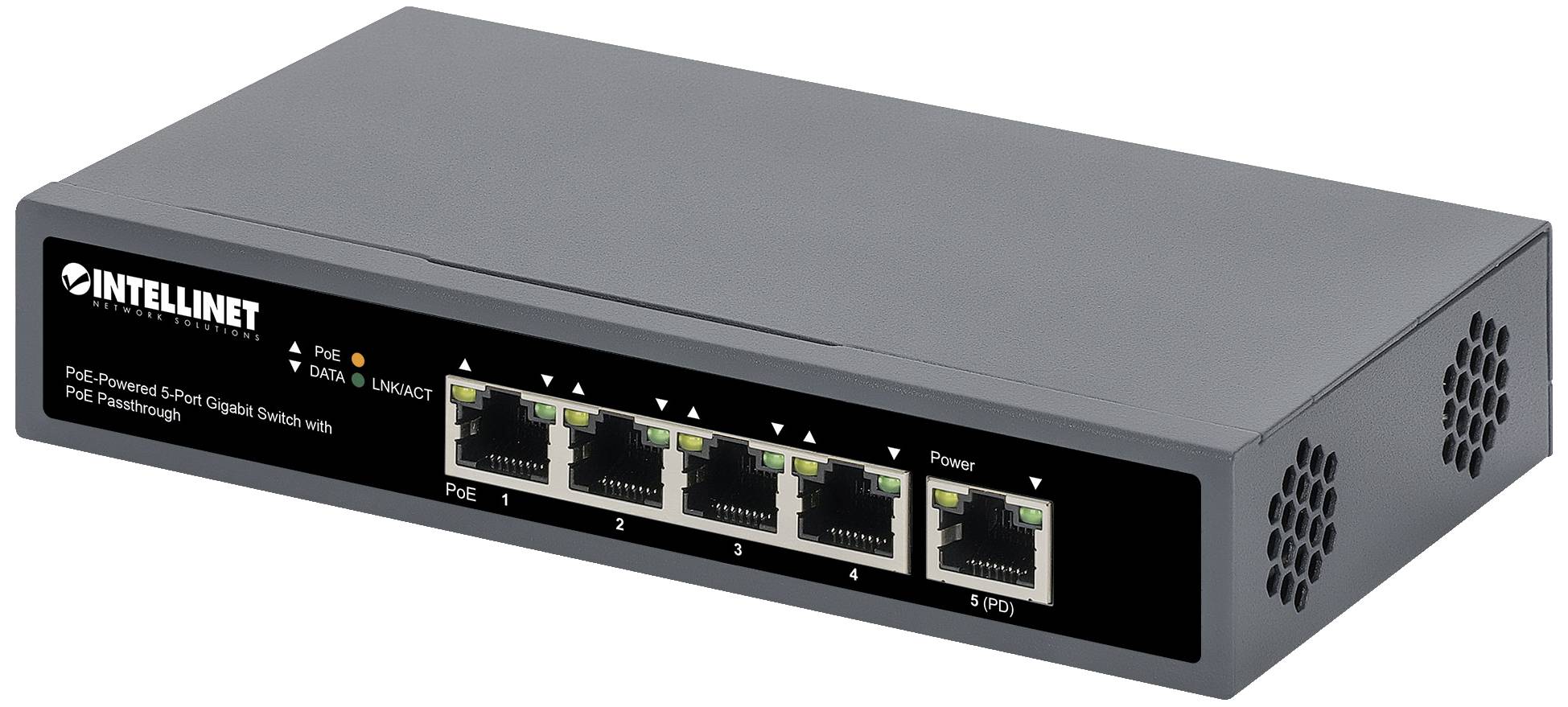

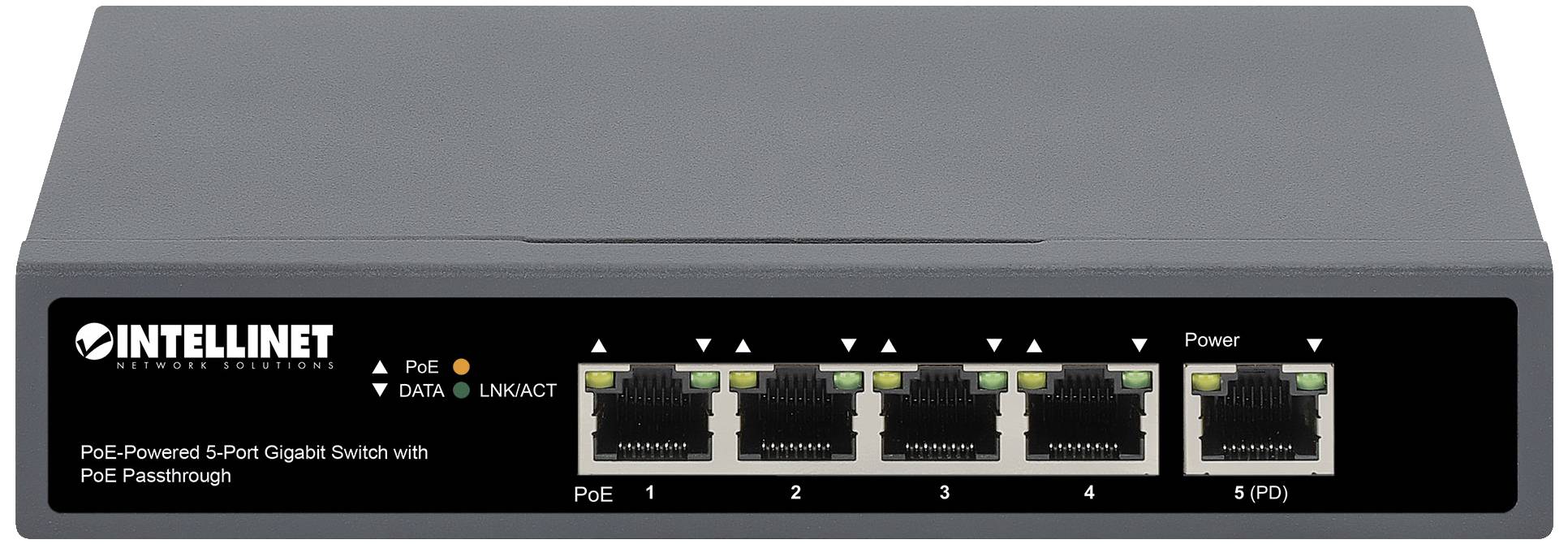

Intellinet PoE-Powered 5-Port Gigabit Network RJ45 switch 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (2

Power over Ethernet with added value thanks to PoE pass-throughThe PoE-powered 5-port gigabit switch with PoE pass-through from Intellinet network solutions is flexible with its power supply: Either via the accompanying power supply or via a Cat5e/Cat6 network cable from a PoE switch/PoE injector, the latter even with PoE+ support. Thus you bring data and power conveniently to PoE-terminals such as WLAN access points, VoIP-telephones and IP-cameras, even over large distances.Can be used as a PoE extenderThrough its PoE pass-through technology this switch doubles the range between the PoE source and the end device from 100 m to 200 m. Thus you remain independent of the plug sockets on this route, save power cable and supply up to 30 W per port to compatible devices, in a total power budget of up to 65 W.Power over Ethernet 802.3af compliantThis switch supports the IEEE 802.3at protocol over four wire pairs (4PPPoE), which allows input current up to 95 W. It supplies IEEE 802.3at or IEEE 802.3af compliant devices together with data at gigabit speed.The perfect workgroup switchWhen you connect the PD port (port 5) to the PSE port of a PoE injector or switch, the power is used to power the product and the excess is passed on to end devices such as VoIP phones. This will unlock the full potential of the PSE ports in your data center.Gigabit speed instead of bottleneckFive 10/100/1000 auto-sensing gigabit Ethernet RJ45 ports automatically detect the optimum network speed and deliver a lot of power to your PCs and other network devices together with the 10 Gbit/s switching capacity.Wall mount optionFor maximum operational flexibility, this switch can also be fixed on the wall via its four mounting holes. Alternatively its four rubber feet provide for a non-slip stand in desktop applications.
