Buy Digitus DN-651112 PoE injector 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)

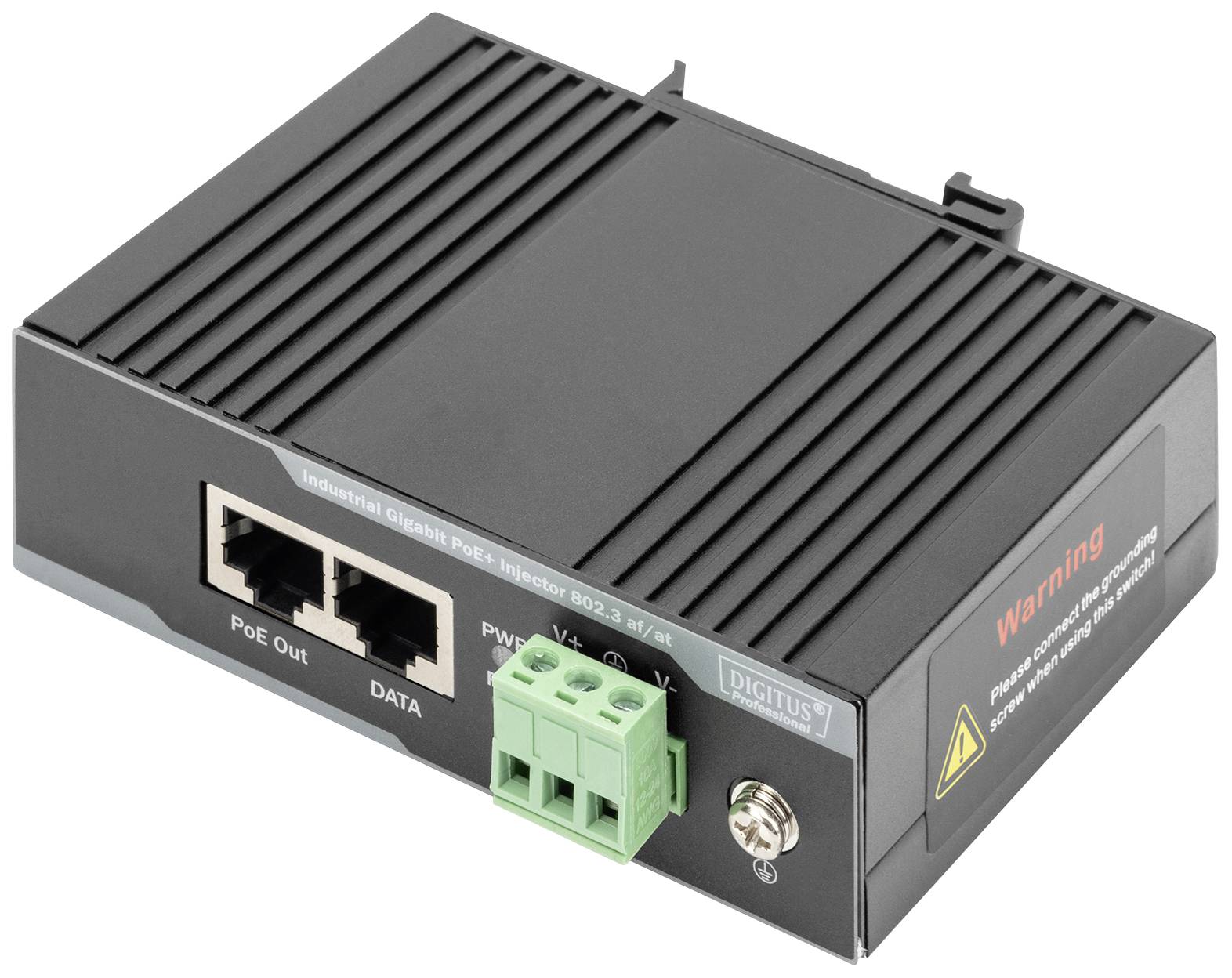

A black PoE injector with two Ethernet ports, a green connection point, and warning labels on the side.

A black industrial PoE injector with two Ethernet ports, green DC input, and a metal enclosure for powering devices.

Black, rectangular metal enclosure with side ventilation slots. Suitable for housing and protecting electronic components.

A black enclosure with a ribbed design and screws on the sides, likely for installing computer components.

Industrial Gigabit PoE+ Injector with two Ethernet ports 'PoE Out' and 'DATA', along with power connections 'V+', 'V-' and 'DC IN'.

A grey metal bar with grooves, screws, and a hook on the front. A warning notice is affixed to the side.

A black PoE injector with two Ethernet ports, a green connection for power supply (DC IN) and an LED indicator.

'Industrial Gigabit PoE+ Injector', a black rectangular device with two network ports and a green terminal block.

Industrial Gigabit PoE+ Injector with two RJ45 ports and a DC input. Supports IEEE 802.3 af/at Standard.

A network device connected with multiple cables to Ethernet ports, focusing on the green and blue cable connections.

'PoE Standards' Diagram shows differences in performance: 802.3af provides 15.4W, 802.3at provides 30W. Devices: Video doorbell, camera, router.

'PoE Standards: IEEE802.3at 30W for 802.3at below and 15.4W for 802.3af above. Devices: Door intercom, video phone, camera, Wi-Fi access point.'

1/13

Fast track dispatch on Fri, 11 Sep

20 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 72.26 / piece)

€ 72.26

plus VAT.

Report legal concerns

DIGITUS industrial Gigabit PoE+ injector 802.3 af/at

Highlights & Details

PoE is preferably used when no power supply is possible at the place of operation and suitable devices can also be supplied with power via the incoming network cable at the same time.
With a data transfer rate of 1 GBit/s, this PoE injector corresponds to the Gigabit Ethernet standard and has a maximum output voltage of 48 - 55 V and a power output of 60 W.
Two RJ45 sockets and a DC terminal strip are integrated in the metal housing - power supply via pins 4/5(+) & 7/8(-) as well as pins 3/6(+) & 1/2(-) is via the "PoE Out" network socket.

Technical specifications

LAN(RJ45) output, power supply via pin: 4/5(+),7/8(-) and 3/6(+),1/2(-)
Cable connection 10/100/1000 Mbps
Own consumption: 3W max.
Operating temperature: -40°C to 75°C
PoE power budget 60 W.
PoE standard IEEE802.3at (PoE+)
Ethernet speed: Gigabit

Product type: PoE injector

PoE: IEEE 802.3af (12.95 W)
IEEE 802.3at (25.5 W)

LAN data transfer rate: 10 / 100 / 1000 MBit/s

Width: 165 mm

Height: 125 mm

Length: 50 mm

Weight: 0.38

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2290751 Digitus DN-651112 PoE injector 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)

Description

With the help of the Digitus PoE injector you minimize your wiring expenditure during the installation of PoE-enabled devices such as IP network cameras. The data and power supply for the devices are only fed via an Ethernet cable. This makes laying a separate power line unnecessary and you are able to expand your network even where there are no sockets or power lines available. The injector is fully compatible with the IEEE 802.3at Ultra PoE standard and delivers an output power of 60 watts.

This text is machine translated.

Features

Conforms to the 802.3af/at PoE standard
48~55 Volt output voltage, 60 Watt
RJ45 LAN input
LAN(RJ45) output, power supply via pin: 4/5(+), 7/8(-) and 3/6(+),1/2(-)
the output has a current limitation, a short-circuit protection as well as automatic end device detection and classification
less than 0.3W idle consumption
compact, robust metal housing
excellent protection against short-circuits
lightning protection and overvoltage protection
DIN-rail (top hat rail) and wall mounting possible
