Name: Ubiquiti Networks 10G PoE+++ Adapter (90W) PoE injector 10 GBit/s
Brand: Ubiquiti Networks
SKU: 3738694
Availability: BackOrder

A sleek, white device with a black triple-lens camera system, possibly for surveillance or security, mounted against a plain background.

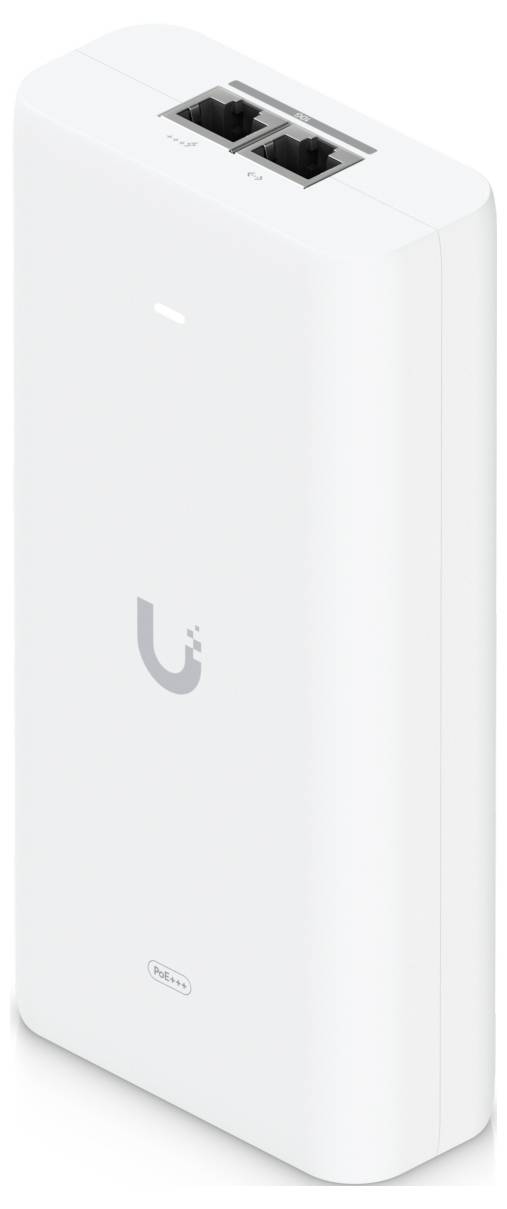

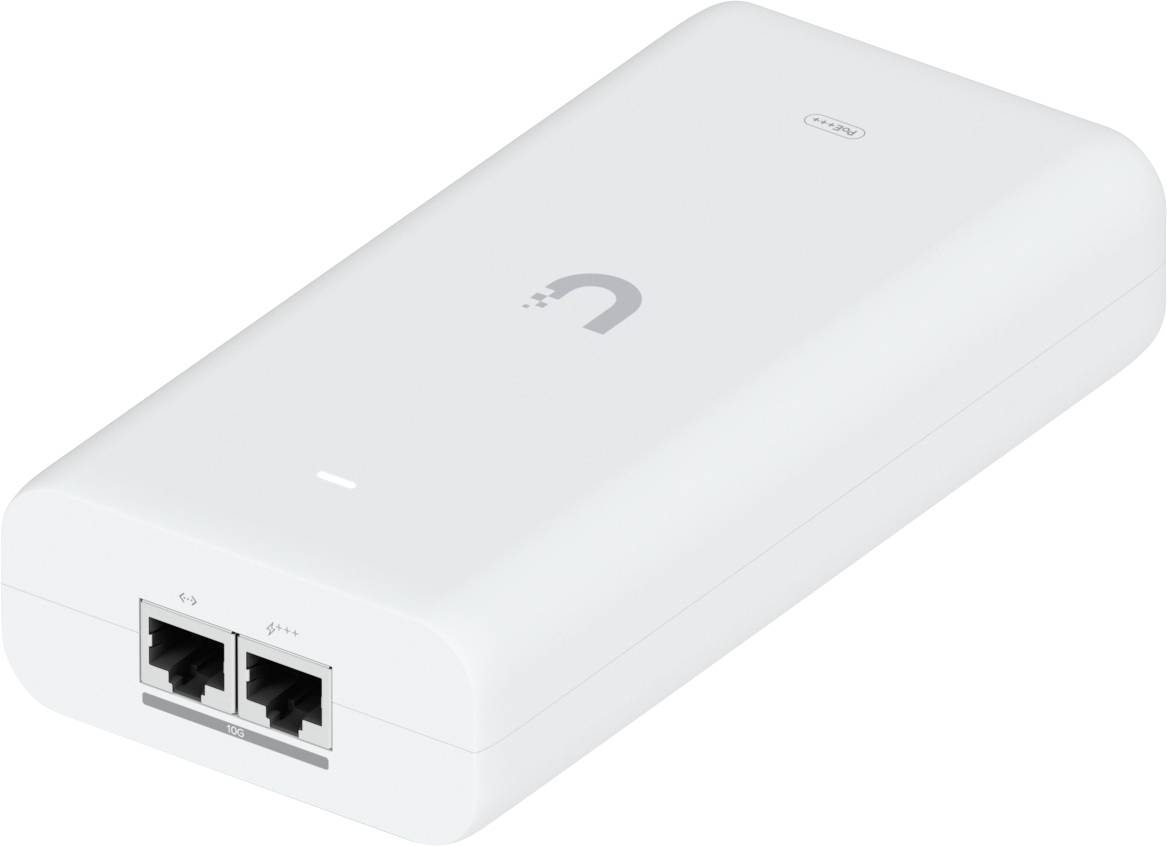

'A white 10G network adapter with two Ethernet ports marked with symbols indicating connectivity and speed capabilities.'

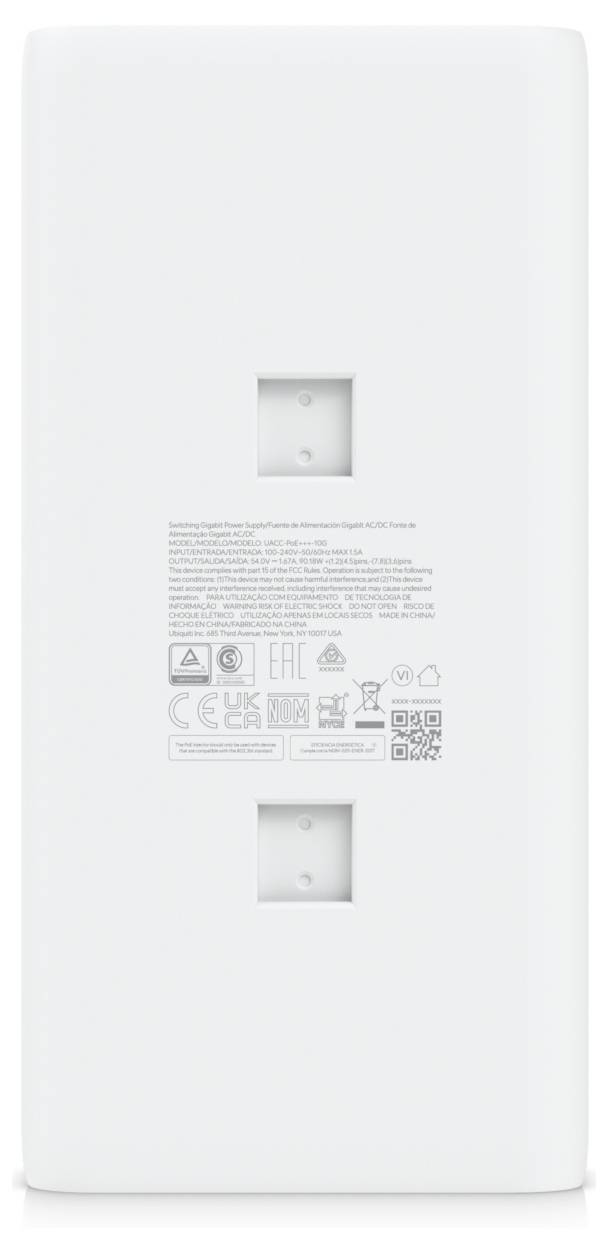

A white electronic device viewed from the back, displaying technical specifications, certification marks, and two inset mounting holes.

1/7

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 59.99 / piece)

€ 59.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Ubiquiti PoE injector • PoE+++ • 90W • 10 GbE • UACC-PoE++-10G

• Delivers up to 90W PoE++
• Protection against over-voltage, impulse peaks and overcurrent
• Includes RJ45 data input, ground power cord, and PoE++ output
• LED indicator for status monitoring
• Supports wall mounting, DIN rail and suspended mounting*

Technical specifications

Ethernet LAN data transfer rates: 10,100,1.000,10.000 Mbps
Switching frequency - 65 kHz
Efficiency - 88%

Product type: PoE injector

LAN data transfer rate: 10 GBit/s

Width: 71 mm

Height: 164.5 mm

Depth: 42 mm

Factory colour: White

Max. output current: 1.67 A

10/100/1000 Mbps ports: 2 x

Weight: 372 g

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Total Power over Ethernet (PoE) budget: 90 W

Wall mountable: yes

Operating temperature (T-T): 32 - 104 °F

Power over Ethernet (PoE): yes

Inrush current: 120 A

Power over Ethernet (PoE) voltage: 54 V

: 65 kHz

: 2 %

: 5 %

: 1 ns

Number of products included: 1 Stück(e)

Efficiency: 88 %

Operating relative humidity (H-H): 10 - 95 %

Storage temperature (T-T): -30 - 70 °C

Surge protection: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3738694 Ubiquiti Networks 10G PoE+++ Adapter (90W) PoE injector 10 GBit/s

Description

An adapter that can supply power to Unifi PoE+++ devices, reduce dependence on the PoE switch power supply and provide a multi-gigabit LAN connection.

This text is machine translated.

Description

An adapter that can supply power to Unifi PoE+++ devices, reduce dependence on the PoE switch power supply and provide a multi-gigabit LAN connection.

This text is machine translated.
