Name: Ehmann 4295x0700 Rotary dimmer Suitable for light bulbs: LED bulb, Light bulb, Halogen lamp White (RAL9016)
Brand: Ehmann
SKU: 2202168
Availability: InStock

Here is a double light switch by Ehmann, installed in a green mounting.

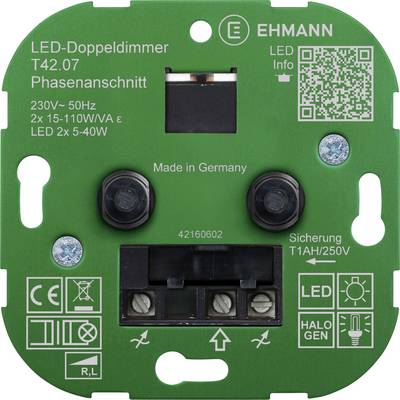

'Square green LED double dimmer circuit board by Ehmann with "Made in Germany" labelling and technical specifications for voltage and power.'

Yellow sign with white circle, gear and spanner symbol, and '5 Years' and 'REPAIR SERVICE'.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

21 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 55.99 / piece)

€ 55.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

LED double dimmer flush-mounted

Suitable for dimmable LED lamps
230V incandescent, halogen and LV halogen lamps with magn. Transformer
Dimming power max. 2x 110 W.

Technical specifications

Product type: Rotary dimmer

Operating voltage: 230 V

Power rating (min.): 5 W

Power rating (max.): 110 W

Suitable for light bulbs: LED bulb
Light bulb
Halogen lamp

Switching capacity (LED): 40 W

Switching capacity (light bulbs): 110 W

Switching capacity (halogen bulbs): 110 W

Shaft Ø: 4 mm

Factory colour: White (RAL9016)

Similar RAL: 9016

Documents & Downloads

Datasheet

Datasheet 2202168 Ehmann 4295x0700 Rotary dimmer Suitable for light bulbs: LED bulb, Light bulb, Halogen lamp White (RAL9016)

User & Safety Instructions

User & Safety Instructions 2202168 Ehmann 4295x0700 Rotary dimmer Suitable for light bulbs: LED bulb, Light bulb, Halogen lamp White (RAL9016)

Information

Information 2202168 Ehmann 4295x0700 Rotary dimmer Suitable for light bulbs: LED bulb, Light bulb, Halogen lamp White (RAL9016)

Description

The LED flush-mounted double dimmer with a cover of the size 55x55 offers the option of dimming two light spots in a space-saving way with the phase principle. The turn-off function does not result in standby consumption. The double dimmer is protected by short-circuit/overload/overheating protection. The included adapter enables the dimmer to be implemented under common German switch programs. The QR code lasered onto the green anodized mounting plate passes on to an LED recommendation list in which the compatibility of lights and dimmers has been tested.

This text is machine translated.

Features

Double dimmer for replacing series switches and for space-saving dimming of two light spots
with central plate 55x55 mm, color similar to RAL 9016
Short-circuit/overload/overtemperature protection
Use in commercially available mounting sockets according to DIN 49073 with opening 60 mm with
central plate 55x55 mm, color similar to RAL 9016
Short-circuit/overload/overtemperature protection
Operating principle: Phase control
: Rotary dimmer with rotation-off function
Shaft: Ø 4 mm plastic
connection: Screw terminals up to 2 x 2.5 mm² (rigid)

Scope of delivery

Dimmers
User manual.

Description

Features

Double dimmer for replacing series switches and for space-saving dimming of two light spots
with central plate 55x55 mm, color similar to RAL 9016
Short-circuit/overload/overtemperature protection
Use in commercially available mounting sockets according to DIN 49073 with opening 60 mm with
central plate 55x55 mm, color similar to RAL 9016
Short-circuit/overload/overtemperature protection
Operating principle: Phase control
: Rotary dimmer with rotation-off function
Shaft: Ø 4 mm plastic
connection: Screw terminals up to 2 x 2.5 mm² (rigid)
