Buy Sygonix SY-5775566 Flush-mount dimmer Suitable for light bulbs: LED bulb, Light bulb, Halogen lamp White

A switching module with the inscription 'sygonix', model number D070K2-WF. Shows connection terminals and details of current and voltage ratings.

The image shows a smart Sygonix dimmer component with technical specifications, controls for minimum and maximum brightness, and a reset button.

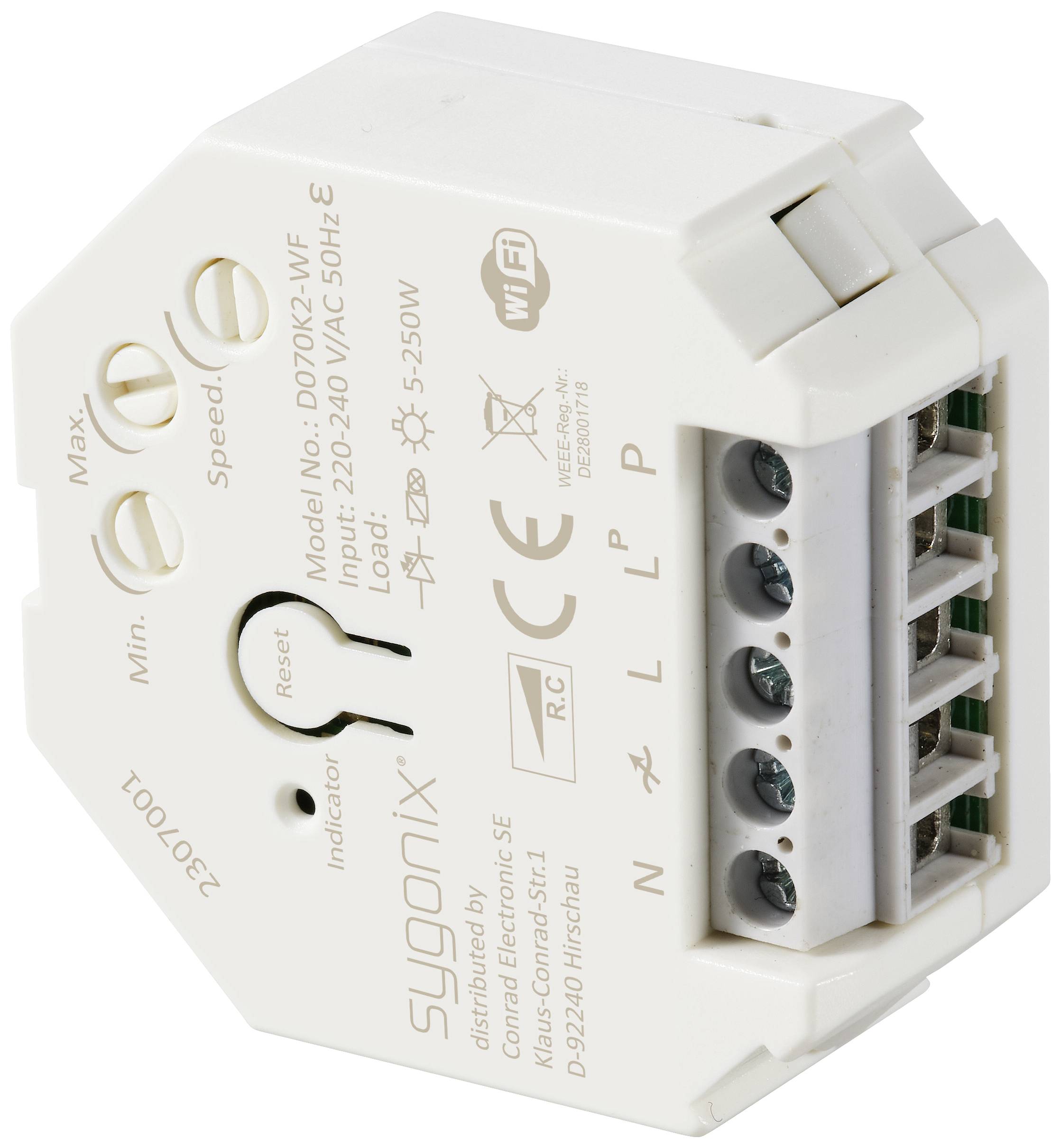

'White, hexagonal Wi-Fi switching module with model number D0702K2-WF. Supports 5-250 W, 220-240 V~ 50 Hz. With CE marking.'

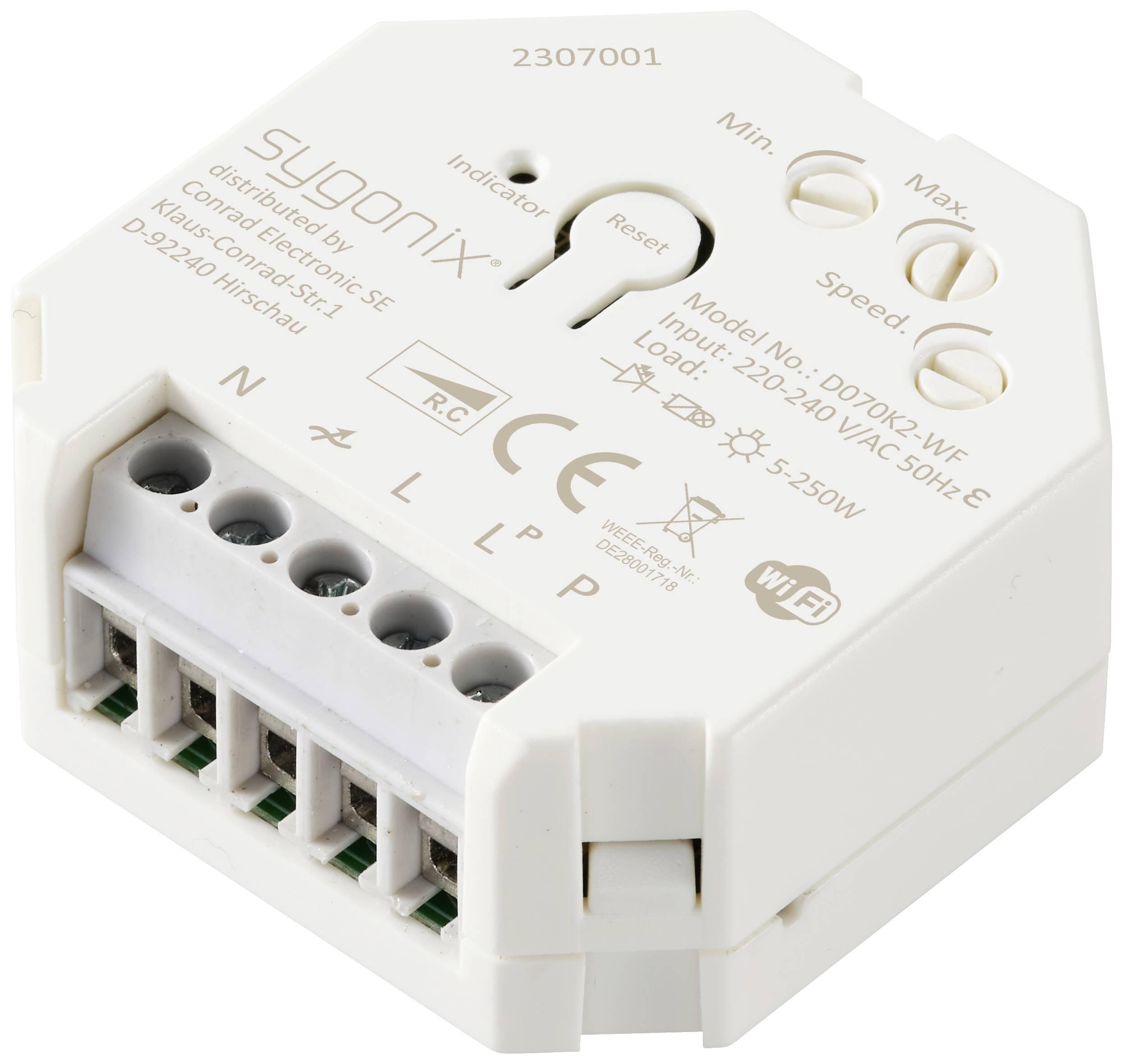

A white, hexagonal electrical device with cable connections and control elements on the top surface. Labelled with "sygonix".

A white wall-mounted soap dispenser holder, vertically positioned, with a central recess for the dispenser.

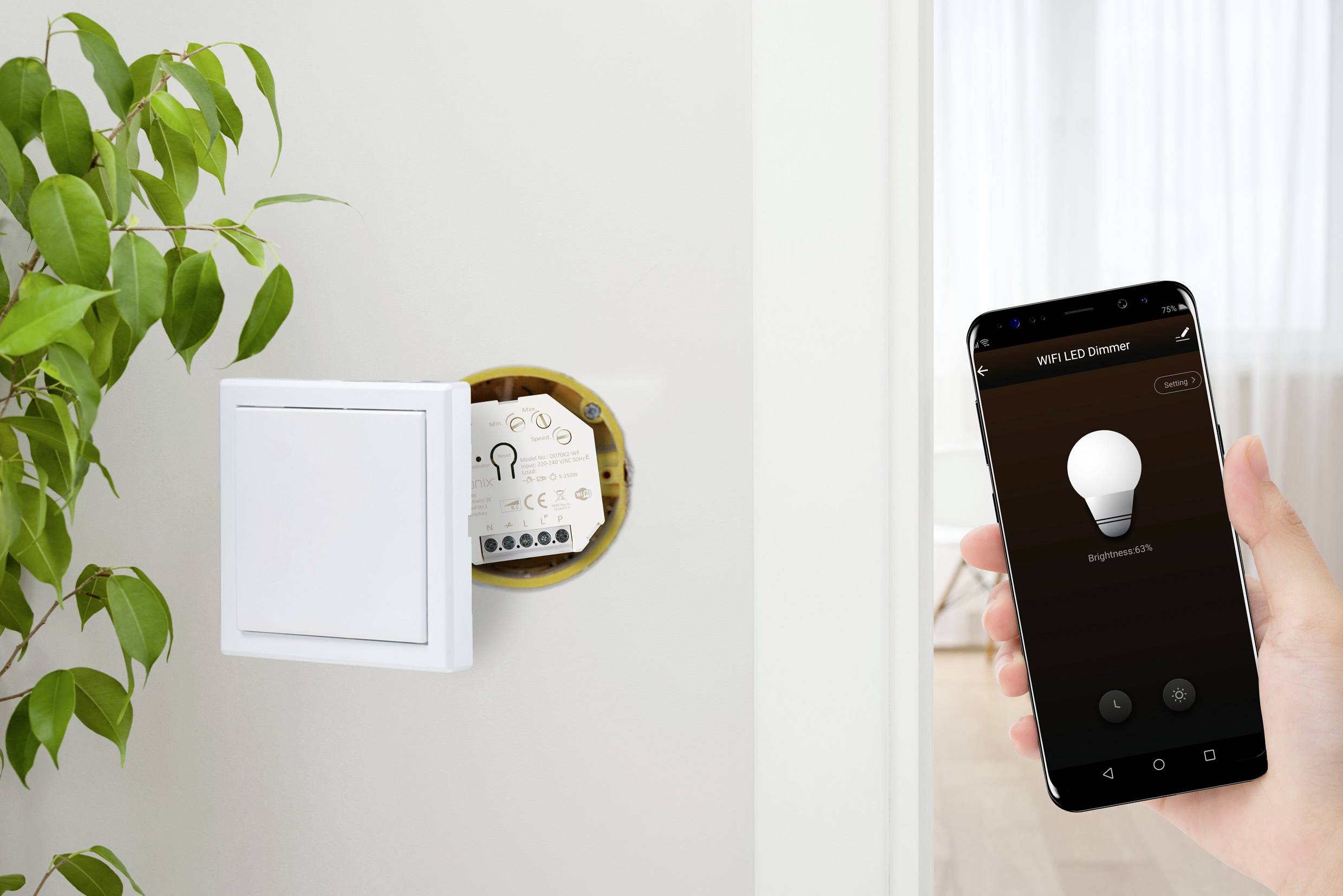

A smartphone wirelessly controls a smart home light dimmer on the wall. An electrical switch box is partially open.

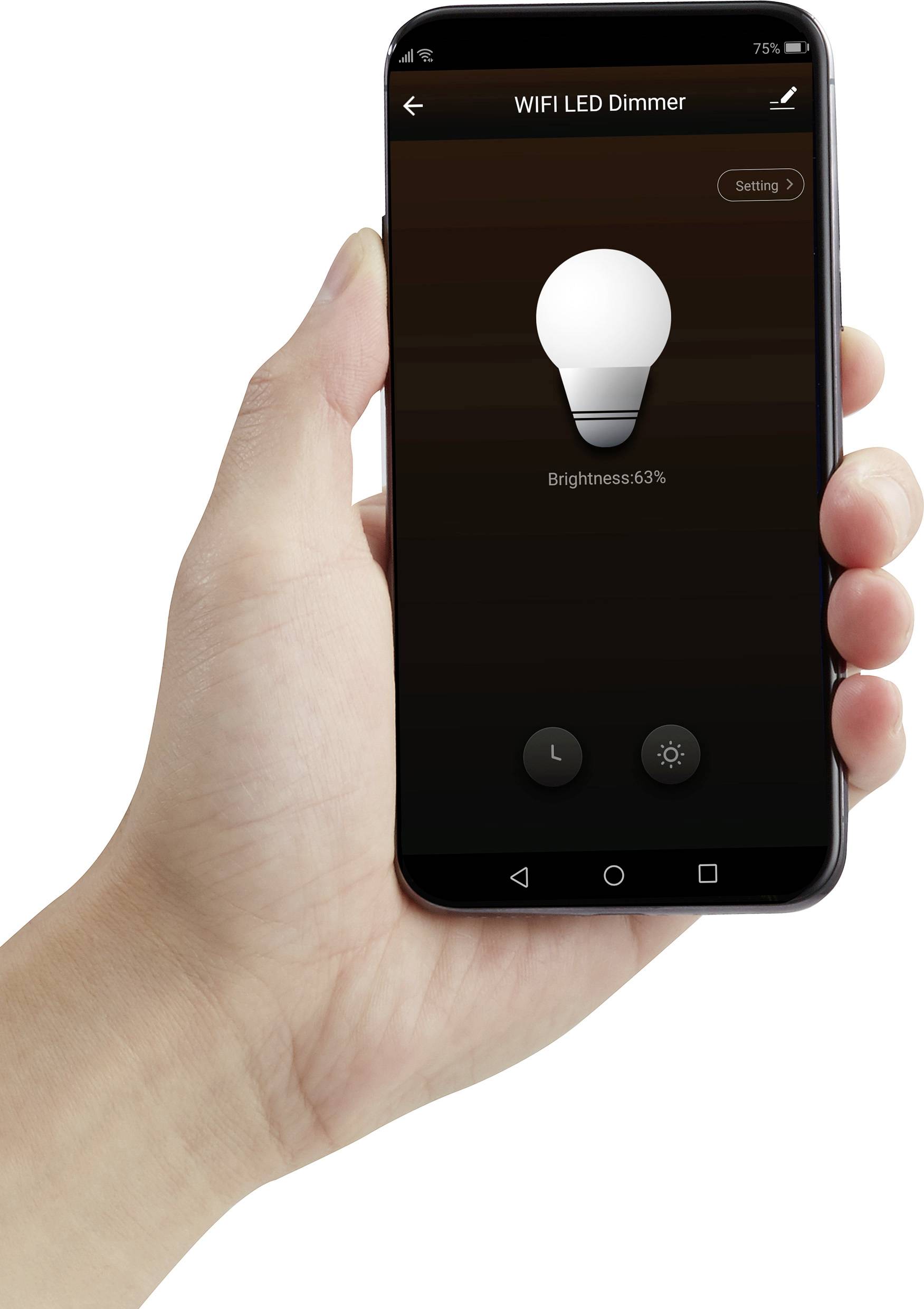

A hand holds a smartphone with the 'WIFI LED Dimmer' app open, displaying a light bulb icon and brightness setting at 63%.

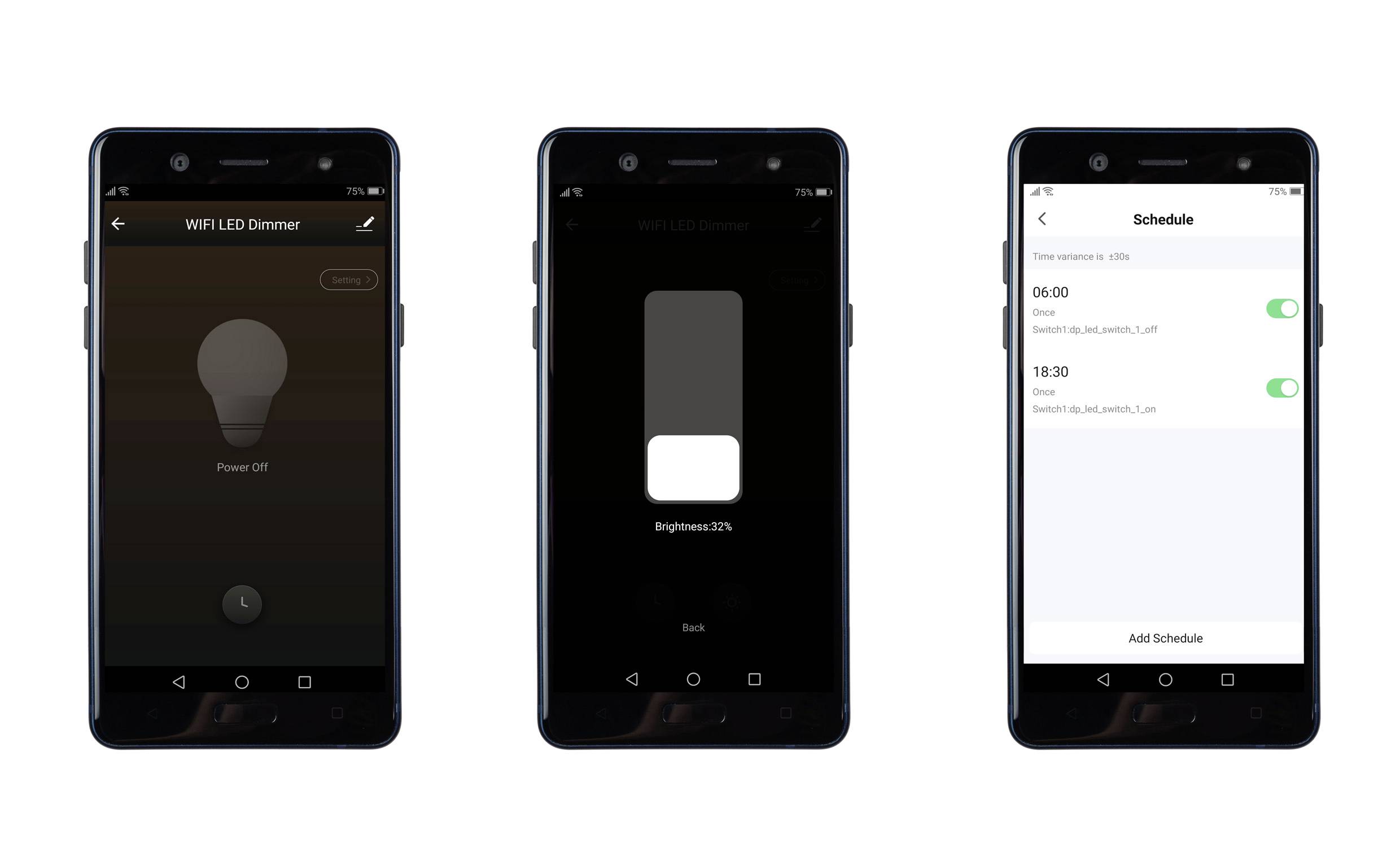

Three smartphone screens display an app for controlling a Wi-Fi LED dimmer: On/Off switch, brightness adjustment, and scheduling.

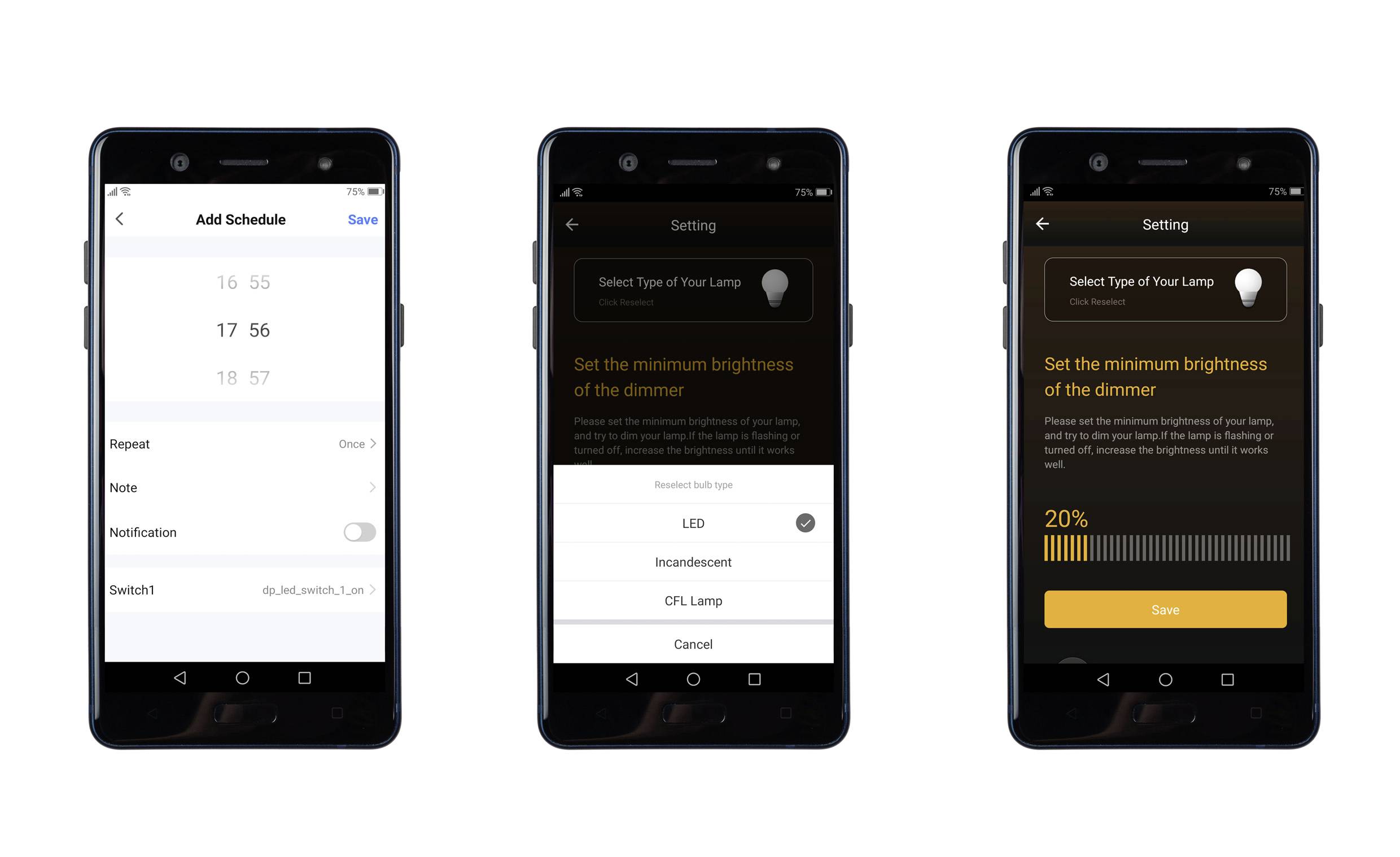

Three smartphone screens display an app interface: On the left, a schedule setting, in the centre, lamp selection, and on the right, dimmer brightness at 20%.

1/9

Our service for you

Fast track dispatch on Fri, 11 Sep

338 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 23.52 / piece)

€ 23.52

plus VAT.

Report legal concerns

Pre-contractual information under the EU Data Act

Highlights & Details

Wi-Fi flush-mounted dimmer, Tuya, 250 W

For switching and dimming LED lights, incandescent lamps and low-voltage halogen lights with electronic transformers via Tuya app
Adjustable minimum and maximum brightness
Daily and weekly schedules

Technical specifications

Product type: Flush-mount dimmer

Operating voltage: 230 V AC

Power rating (min.): 5 W

Suitable for: Transformer (electric)

Power rating (max.): 250 W

Suitable for light bulbs: LED bulb
Light bulb
Halogen lamp

Switching capacity (LED): 250 W

Switching capacity (light bulbs): 250 W

Factory colour: White

Dim: (L x W x H) 45 x 45 x 20 mm

Length: 45 mm

Width: 45 mm

Height: 20 mm

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2887783 Sygonix SY-5775566 Flush-mount dimmer Suitable for light bulbs: LED bulb, Light bulb, Halogen lamp White

Warranty Terms

Warranty Terms 2887783 Sygonix SY-5775566 Flush-mount dimmer Suitable for light bulbs: LED bulb, Light bulb, Halogen lamp White

Description

High-quality dimmer for various applications. Suitable for dimmable LED lights, incandescent lamps and low-voltage halogen lamps with electronic transformers.
