Ehmann 5230x0700 Rotary dimmer Suitable for light bulbs: Light bulb, LED bulb, LED strip, Halogen lamp Black

'LED Dimmer T52.07' by EHMANN in Germany. Pictured: Front and back with LED and halogen indicators.

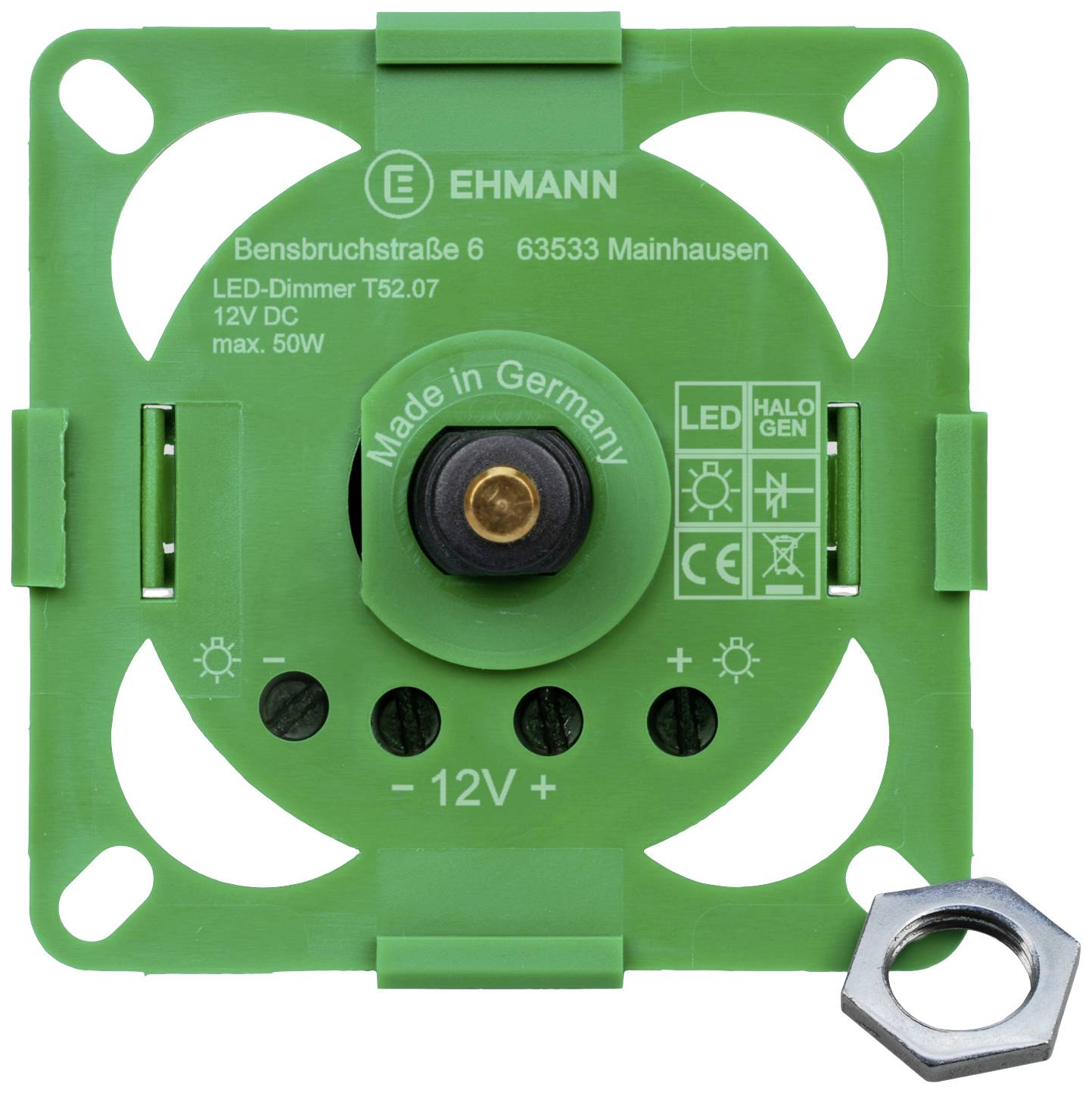

Green LED dimmer by Ehmann, Model T52.07, for 12V and up to 50W, with inscription 'Made in Germany'.
Yellow sign with white circle, gear symbol and '5 Years'; underneath 'REPAIR SERVICE' as an indication of five years' repair service.
1/3
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
26 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 61.99 / piece)
€ 61.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

LED dimmer T52.07 12V 50W anthracite

  • Nominal voltage 10 - 15 V DCMaximum power: 50 W
  • This text is machine translated.

Technical specifications

  • Shaft: Ø 4 mm metal with soft gridConnection: Screw terminals up to 2 x 2.5 mm² (rigid)
Product type

Rotary dimmer

Operating voltage

15 V

Power rating (max.)

50 W

Suitable for light bulbs

Light bulb

LED bulb

LED strip

Halogen lamp

Switching capacity (LED)

50 W

Shaft Ø

4 mm

Factory colour

Black

Dim

(L x W x H) 54 x 54 x 33 mm

Length

54 mm

Width

54 mm

Height

33 mm

Documents & Downloads

Datasheet

Datasheet 2619471 Ehmann 5230x0700 Rotary dimmer Suitable for light bulbs: Light bulb, LED bulb, LED strip, Halogen lamp Black

User & Safety Instructions

User & Safety Instructions 2619471 Ehmann 5230x0700 Rotary dimmer Suitable for light bulbs: Light bulb, LED bulb, LED strip, Halogen lamp Black

Description

Features

  • Suitable for dimmable 12V-LED lamps12V incandescent and halogen lampsLED modules and strips with limiting resistorsOver heating protection No standby consumption through real on/off switchOperating principle: PWM (pulse width modulation)Control: Rotary dimmer with push-change switchOver-temperature protection: Thermal fuse (permanently discontinues the device after triggering)

Scope of delivery

  • LED dimmer T52.07 12V 50W anthracite
