Name: Ehmann 5591x0100 Rotary dimmer Suitable for light bulbs: LED bulb, Halogen lamp, Light bulb White (RAL9016)
Brand: Ehmann
SKU: 2202167
Availability: InStock

A white rotary light switch in close-up against a white wall, shown in the off position.

Green LED dimmer with technical specifications, screw holes, and QR code. Suitable for 230V~ 50Hz and 7-220W/VA.

A round, white rotary switch in the centre of a white rectangular plate. The switch is currently set to 'off'.

Yellow sign with white circle, number 5 and spanner-gear icon; text: '5 Years Repair Service'.

1/5

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

16 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 59.99 / piece)

€ 59.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

LED universal dimmer T55.01 with cover

Complete unit with rotary knob and frame
Rotary dimmer with push-change switch
Suitable for dimmable LEDs, LED driver, filament LEDs, glow and HV and LV halogen lamps

Technical specifications

Product type: Rotary dimmer

Operating voltage: 230 V

Power rating (min.): 3 W

Power rating (max.): 220 W

Suitable for light bulbs: LED bulb
Halogen lamp
Light bulb

Switching capacity (LED): 100 W

Switching capacity (light bulbs): 220 W

Switching capacity (halogen bulbs): circuit resistance 220 W

Shaft Ø: 4 mm

Factory colour: White (RAL9016)

Similar RAL: 9016

Dim: (L x W) 55 mm x 55 mm

Length: 55 mm

Width: 55 mm

Documents & Downloads

Datasheet

Datasheet 2202167 Ehmann 5591x0100 Rotary dimmer Suitable for light bulbs: LED bulb, Halogen lamp, Light bulb White (RAL9016)

User & Safety Instructions

User & Safety Instructions 2202167 Ehmann 5591x0100 Rotary dimmer Suitable for light bulbs: LED bulb, Halogen lamp, Light bulb White (RAL9016)

Information

Information 2202167 Ehmann 5591x0100 Rotary dimmer Suitable for light bulbs: LED bulb, Halogen lamp, Light bulb White (RAL9016)

Description

The LED universal dimmer T55.01 is perfectly suitable for single-user solutions, but can also be integrated in existing switch programs of the size 55x55. By the freely selectable setting of the dimming principle and the setting of the min. and max. brightness as an optimization possibility for flicker-free dimming, a maximum comatibility is ensured with almost all LEDs. The dimmer is protected by an electronic short-circuit and overload protection as well as an over-temperature protection, which is automatically reactivated after tripping. By means of a real on/off switch, the complete solution is also energy-saving, since no standby consumption arises.

This text is machine translated.

Features

For all dimmable LED lamps and LED drivers, incandescent/halogen lamps
LED universal dimmer with ISO-gate® technology – for a maximum power spectrum (up to 400W) and LED compatibility
Silent Technology – absolutely noiseless mode of operation

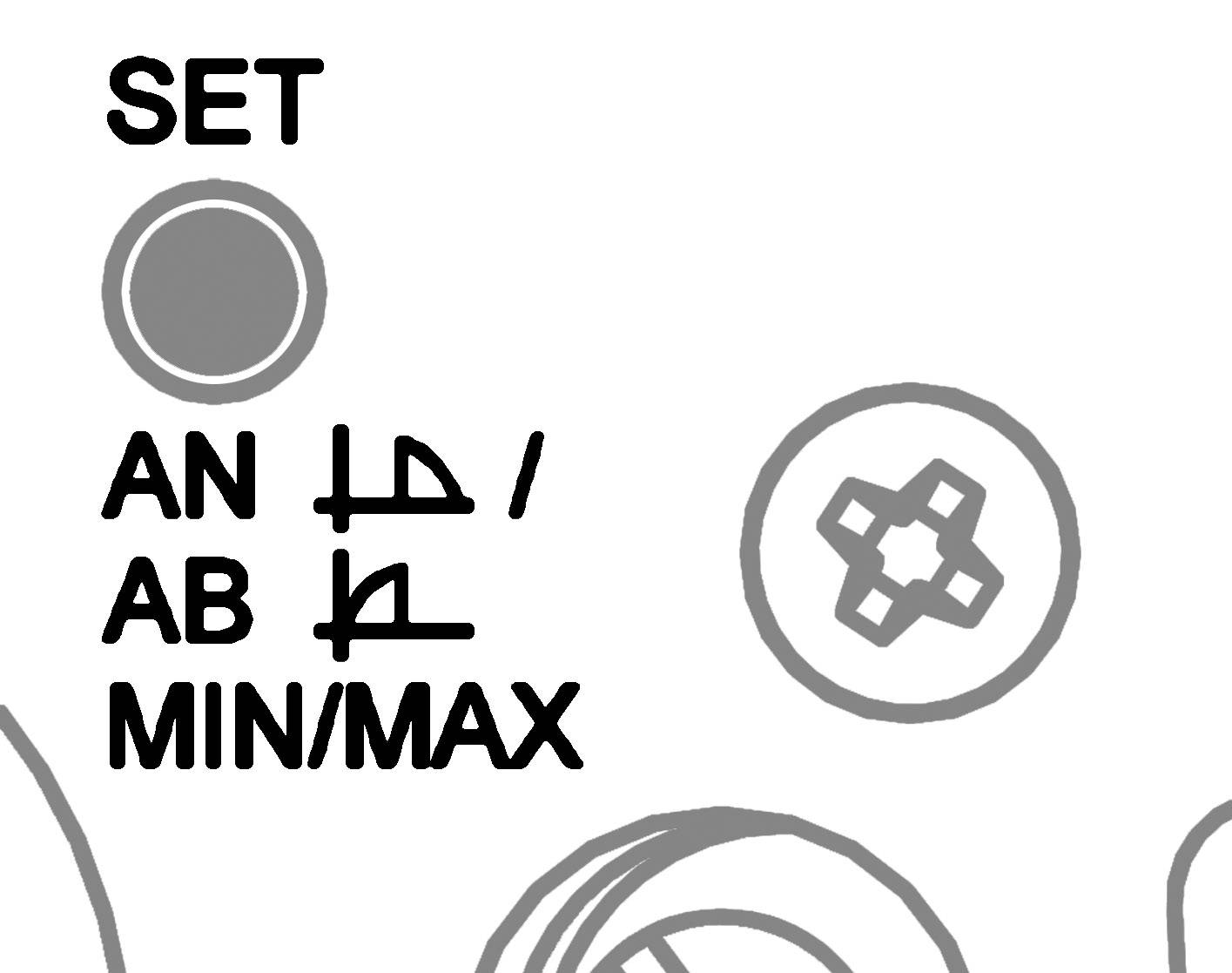

freely selectable setting of the dimming principle (phase angle or phase section), Manually switchable
electronic short-circuit and overload protection and over-temperature protection with automatic reactivation
No standby consumption by real on/off switch
compatible with switch programs of Busch-Jäger, Gira, Berker, Jung and much more.
Actuation: Rotary dimmer with push-change switch
Shaft: Ø 4 mm metal with soft grid (Ø 6 mm with shaft adapter)
Connection: Screw terminals up to 2 x 2.5 mm² (rigid)
Overtemperature protection: Self-resetting temperature switch
Short circuit/overload protection: Electronic

Scope of delivery

Dimmer insert
55x55mm central plate
Control knob
Single frame
User manual.

Hints

Safety note: Work on the 230 V mains may only be carried out by an electrician, taking into account the valid regulations (e.g. DIN VDE). All activities may only be carried out if the mains voltage is switched off. Failure to observe the installation instructions can result in damage to the device, fire or other hazards.

Description

Features

For all dimmable LED lamps and LED drivers, incandescent/halogen lamps
LED universal dimmer with ISO-gate® technology – for a maximum power spectrum (up to 400W) and LED compatibility
Silent Technology – absolutely noiseless mode of operation
freely selectable setting of the dimming principle (phase angle or phase section), Manually switchable
electronic short-circuit and overload protection and over-temperature protection with automatic reactivation
No standby consumption by real on/off switch
compatible with switch programs of Busch-Jäger, Gira, Berker, Jung and much more.
Actuation: Rotary dimmer with push-change switch
Shaft: Ø 4 mm metal with soft grid (Ø 6 mm with shaft adapter)
Connection: Screw terminals up to 2 x 2.5 mm² (rigid)
Overtemperature protection: Self-resetting temperature switch
Short circuit/overload protection: Electronic
