Einhell 2255398 Block and tackle swivel arm
EAN:
Part number:
Item no:
Number
Total (€ 47.05 / piece)
€ 47.05
plus VAT.
Highlights & Details
Einhell swivel arm SA1100

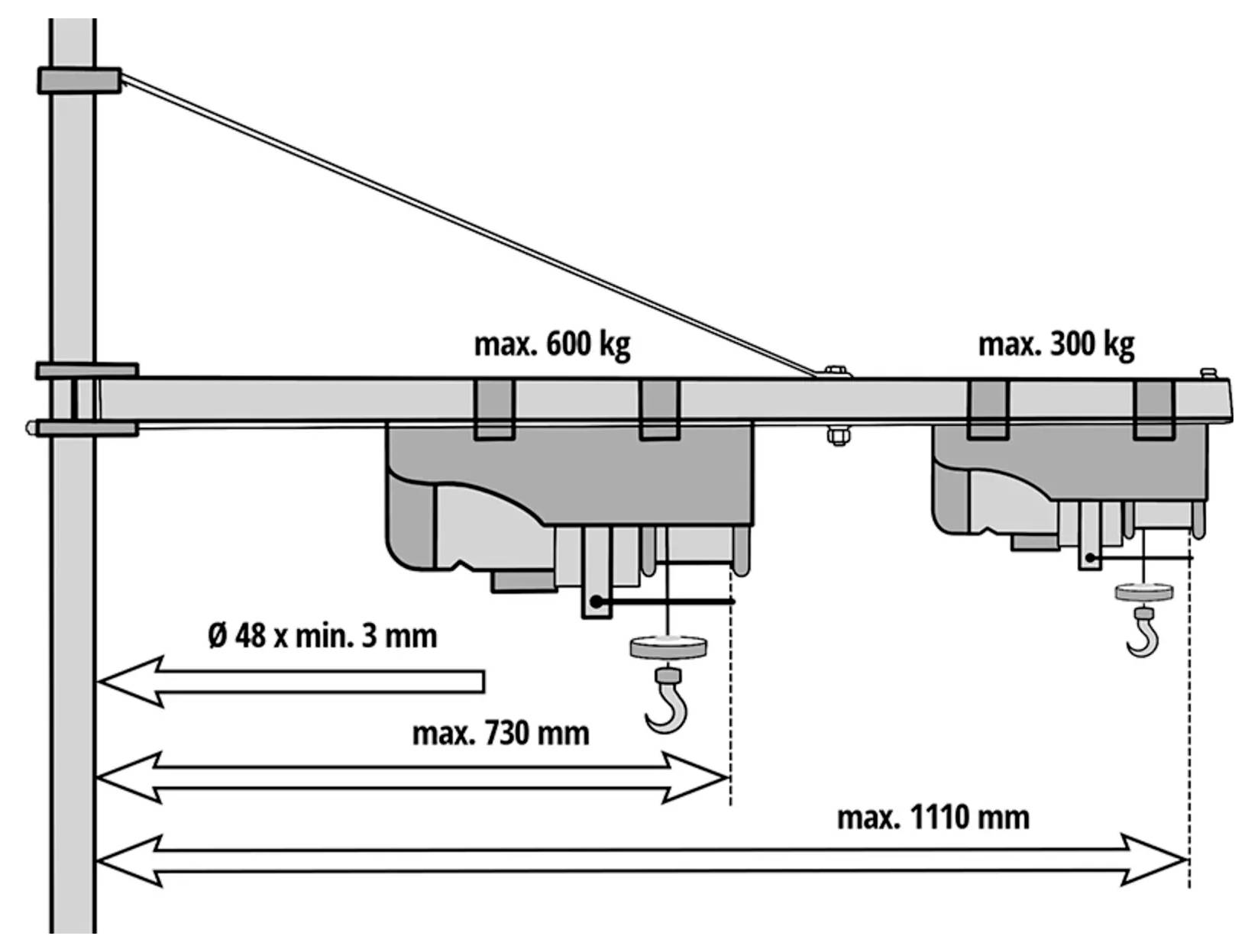

- Nosing varies from 750 mm to 1100 mm
- Maximum load 600 kg (at 750 mm working radius) and 300 kg (1100 mm)
- With pipe sleeve for steel tube ø 48 mm and min. 3 mm wall thickness
Technical specifications
- Projection 110 cm
- Swivel range +/- 90°
- Diameter pipe sleeve 48 mm
- Product type
Block and tackle swivel arm
- Weight
8350 g
- Width
95 mm
- Height
102 mm
- Length
865 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1890393 Einhell 2255398 Block and tackle swivel arm
Warranty Terms
Warranty Terms 1890393 Einhell 2255398 Block and tackle swivel arm
Description

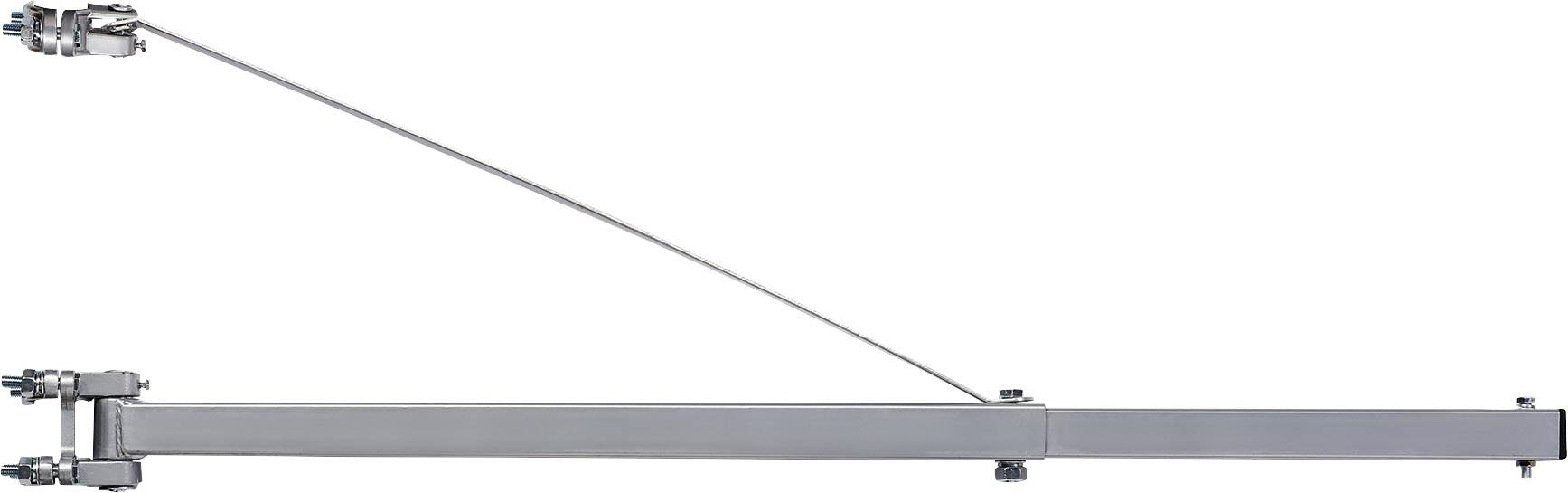

The very stable Einhell SA1100 is a practical boom arm to pivot loads by means of cable winch. Using the provided clips, it can be quickly and easily to a vertical poles or post to the appropriate masses can be mounted and is of 750 mm to 1100 mm telescopic. In the shortest radius, it is up to 600 kg load capacity, at the maximum radius up to 300 kg. This swivel arm is, for example, with the einhell rope lift elevators trains TC-EH250, TC-EH500 and TC-EH600 compatible.
This text is machine translated.
This text is machine translated.
Features
- Depth variable from 750 mm to 1100 mmMaximum load 600 kg (at 750 mm discharge) and 300 kg (at 1100 mm)Large rotation range up to 180°With pipe collar for steel pipe Ø 48 mm and min. 3 mm wall thickness
Scope of delivery
- 1x swivel arm SA 1100
