Name: Einhell 4170682 GC-DP 7835 Effluent sump pump 15700 l/h 8 m
Brand: Einhell
SKU: 376957
Availability: InStock

Highlights & Details

Einhell Waste Water Pump GC-DP 7835-S

Carrying handle
Infinitely adjustable float switch
High-quality ceramic/rubber seal for long life
Pump housing made of impact-resistant plastic

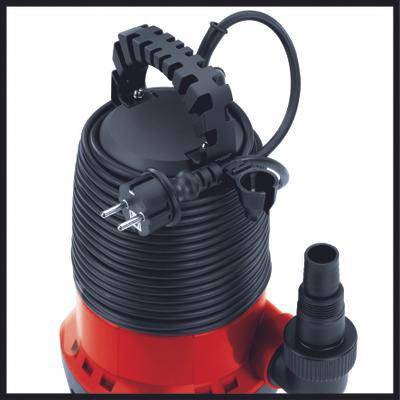

Cable tidy
Connection for 25/32 mm tubes as well as G1 (33.3 mm) external thread
90° angle G11/2 (approx. 47.8 mm) AG x G11/2 (approx. 47.8 mm) AG

Technical specifications

Cable type: H05RN-F
Max. Water Temperature: 35°C
Switching point height: max. approx. 50 cm
Switching point height: min. approx. 50 cm

Product type: Effluent sump pump

Max. delivery head: 8 m

Max. feed rate: 15700 l/h

Max. discharge pressure: 0.8 bar

Operating voltage: 230 V

Power consumption (P1): 780 W

Pressure connection: 47.81 mm (1 1/2") OT

Max. size of solids: 35 mm

Immersion depth: 7 m

Max. cable length: 10 m

Float switch: Yes

Length: 220 mm

Width: 180 mm

Height: 380 mm

(Ø): 160 mm

Dim: (Ø x H) 160 mm x 380 mm

Weight: 5 kg

: IPX8

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 376957 Einhell 4170682 GC-DP 7835 Effluent sump pump 15700 l/h 8 m

User & Safety Instructions

User & Safety Instructions 376957 Einhell 4170682 GC-DP 7835 Effluent sump pump 15700 l/h 8 m

Warranty Terms

Warranty Terms 376957 Einhell 4170682 GC-DP 7835 Effluent sump pump 15700 l/h 8 m

Description

The Pump GC-DP7835 is a powerful and reliable device, the emptying of contaminated water in house, garden ponds and fountains with large displacement and smooth operation. With a power consumption of 780 watts per hour up to 15.700 liters calls on the strength of pump contaminated water. Your infinitely variable float switch offers the choice between continuous operation and a pre-switch-on and switch-off level. The long-life pump housing of the GC-DP 7835-S is made of impact-resistant plastic and holds high loads. For flexible connectivity options, the dirt water pump with a universal connection and a 90° angle. It has a carry handle for easy transportation and, thanks to integrated cable winding in no time at all stowed away properly and safely.

This text is machine translated.

Features

HandleContinuously adjustable float switchHigh-quality ceramic/rubber mechanical seal for long service lifePump housing in impact-resistant plasticCable tidyConnection for 25/32 mm hoses and G 1 (33.3 mm) external thread90 ° angle G1 1/2 (approx. 47.8 mm) AG x G1 1/2 (approx. 47.8 mm) AG

Scope of delivery

1x Dirt water pump GC-DP 78351x Universal adapter1x angle 90°
