Buy Einhell TC-BD 450 Box column drill press 450 W Total height 592 mm

A red bench drill with a black housing, fitted with speed controls and a safety cover mechanism.

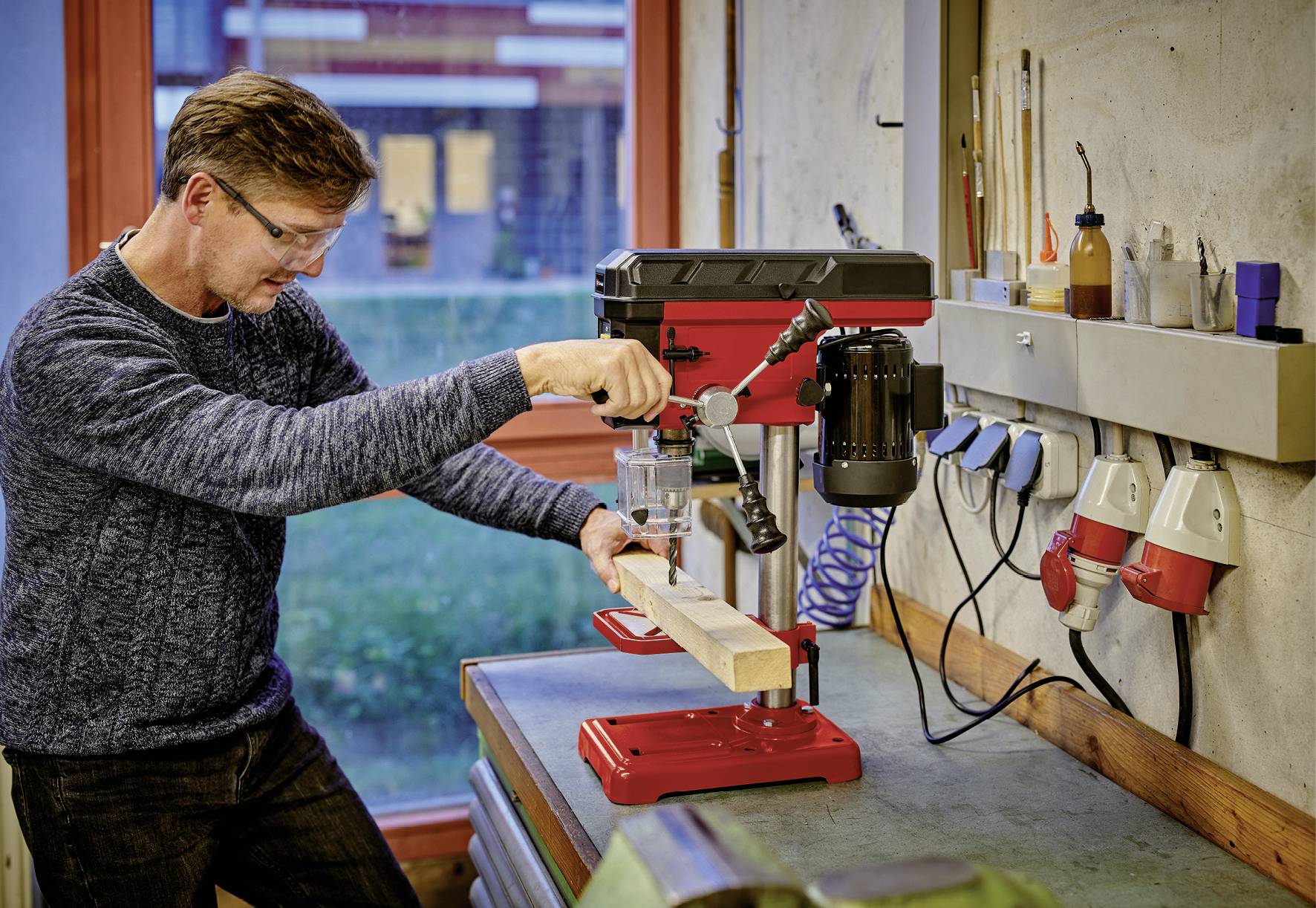

A man wearing safety glasses is operating a drill press in a workshop, drilling holes into a wooden board. Tools are visible in the background.

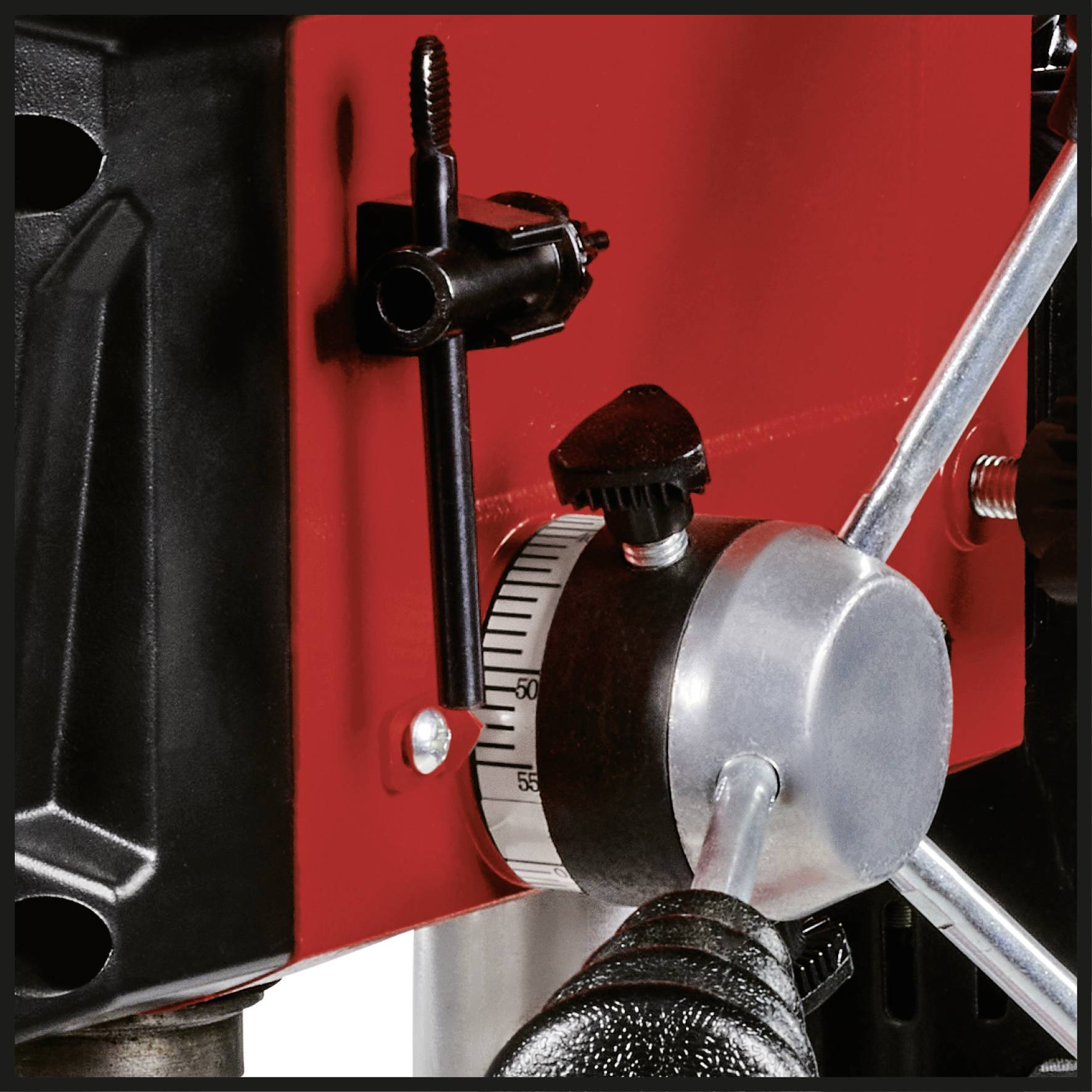

Close-up of a rotatable metal scale on a machine, likely for precise adjustments. Red background, black clamp visible.

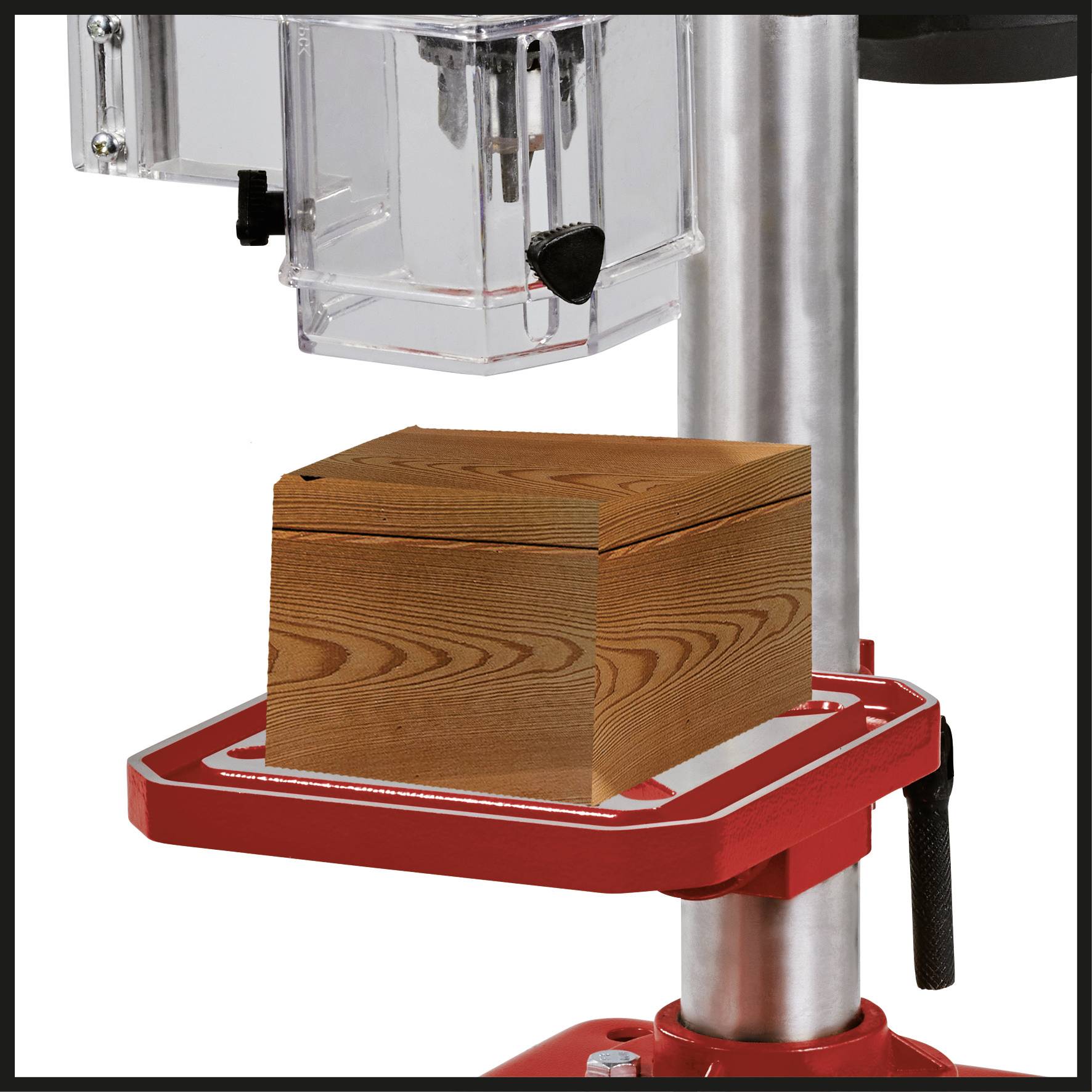

A drill machine with a wooden box on the surface area. The machine is silver and red, the box is made of light-coloured wood.

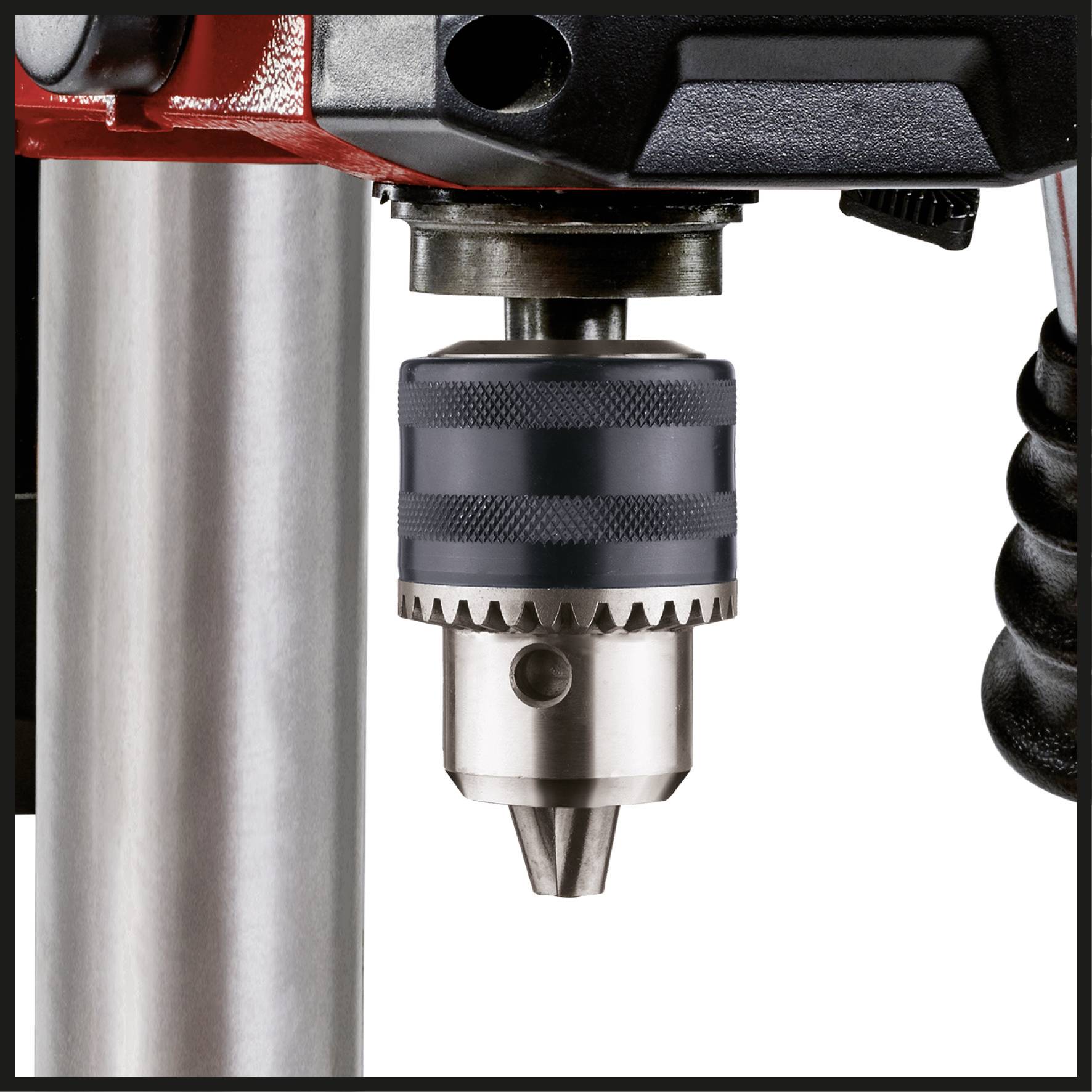

Close-up of a drill chuck used for securing drill bits. Metallic and robust, with a red casing.

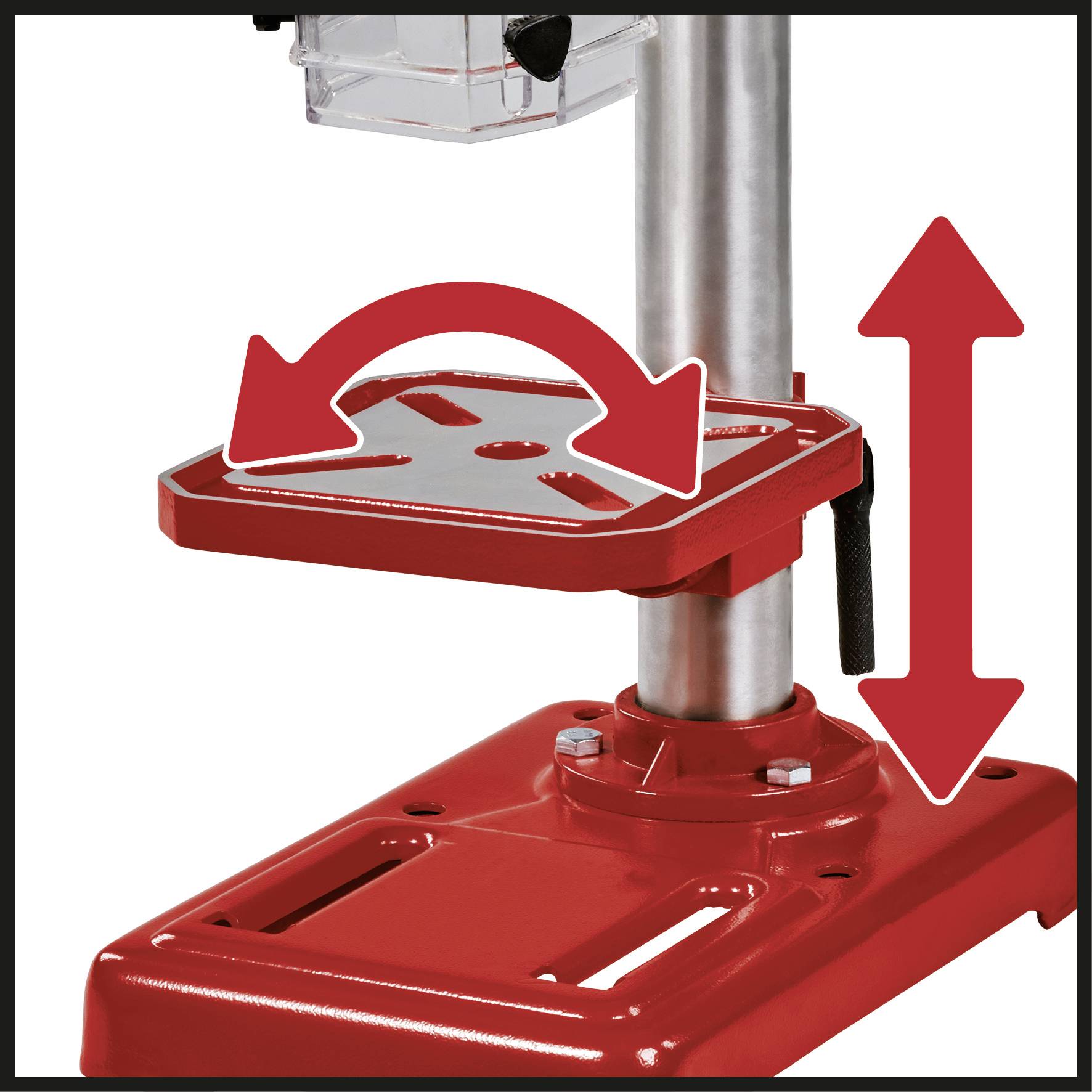

'Red Height and Tilt Adjustable Drilling Table' shows movement arrows.

1/6

12 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 121.84 / piece)

€

Report legal concerns

Highlights & Details

Einhell TC-BD 450 Box column drill press 450 W Total height 592 mm

450 W
Max. drill bit Ø 13 mm;Max. drilling depth 50 mm

Technical specifications

Product type: Box column drill press

: 450 W

Rotational speed range: 600 - 2650 U/min

Nosing: 104 mm

Max. drilling depth: 50 mm

Max. drill diameter: 13 mm

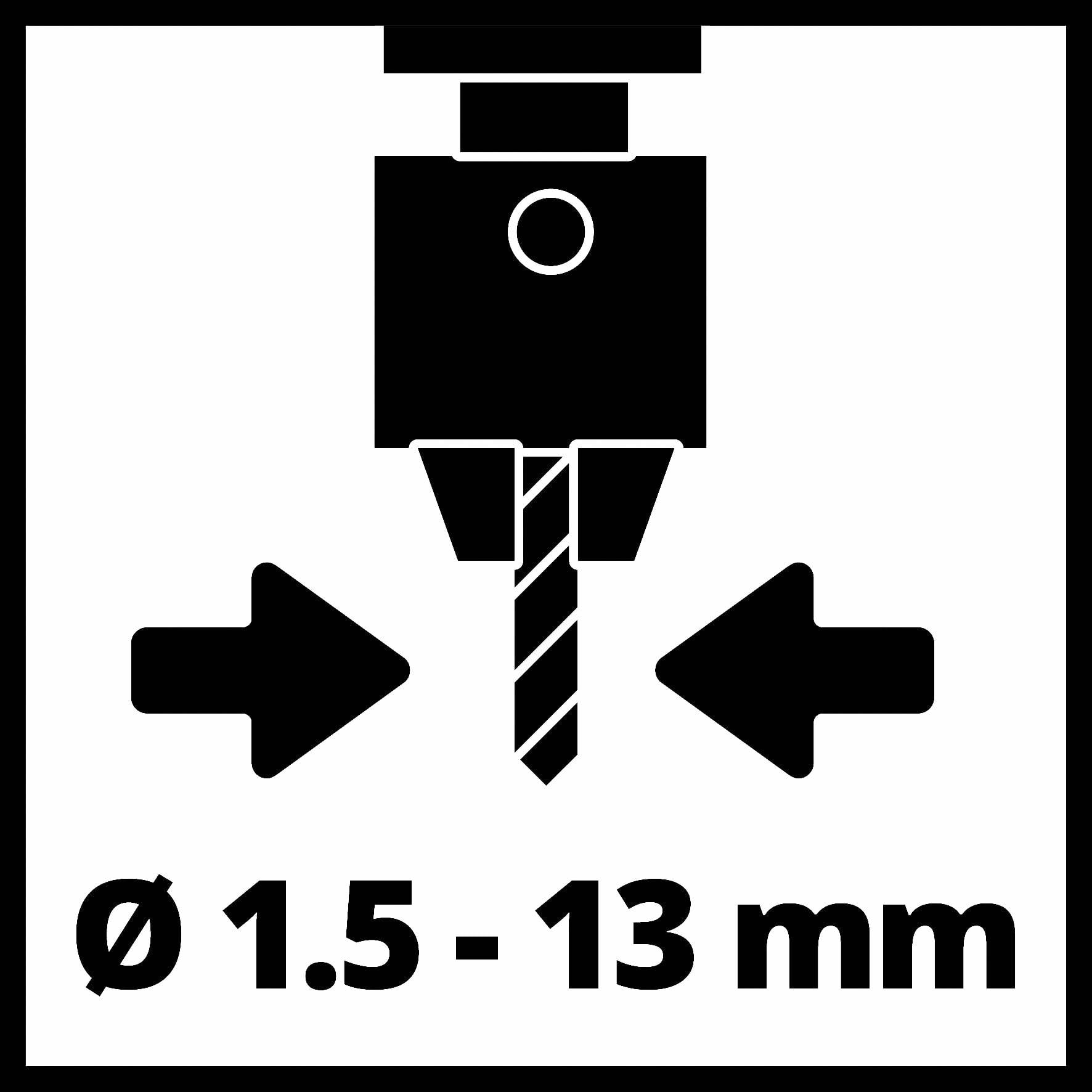

Drill chuck clamping range: 1,5 - 13 mm

Table length: 160 mm

Table width: 160 mm

Total height: 592 mm

Column width: 46 mm

Weight: 12.99 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2533525 Einhell TC-BD 450 Box column drill press 450 W Total height 592 mm

Information

Information 2533525 Einhell TC-BD 450 Box column drill press 450 W Total height 592 mm

Warranty Terms

Warranty Terms 2533525 Einhell TC-BD 450 Box column drill press 450 W Total height 592 mm

Description

The TC-BD 450 column drill machine is a precision tool for special requirements: Workpieces made of wood or metal can be reliably provided with precise holes using a column drill. With 450 watt power and 5x speed gradation suitable for each material, precise drilling is possible. Precise and fast drilling is possible through the adjustable depth stop. The maximum drilling depth is 50 mm. The column drill machine has a robust toothed rim chuck in which the most common drill sizes can be used. The ball-bearing drill spindle ensures long-life and easy operation. The column drill can be adjusted variably by continuously adjusting the height of the drilling table. In addition, the drill table can be rotated and tilted. The rubber-coated, three-arm turnstile has proven its worth with the exact pressure. For safety in use, the folding chip protection, which prevents the machine from starting up again unintentionally after a power failure, is provided by the on/off switch with a zero-voltage tripping operation.

This text is machine translated.

Features

5x speed gradation suitable for any materialFor the most common drill sizes thanks to robust toothed rim chuckExact and fast drilling by adjustable depth stopVariable through continuous height adjustment of the drilling tableDrill table can also be rotated and tiltedRubberized, three-arm turnstile for an exact pressureSafe working by folding chip protectionOn/off switch with zero potential releaseBall-bearing drill spindle for long-life and easy operation

What kind of Bench Drills are you looking for?

Box column drill press
