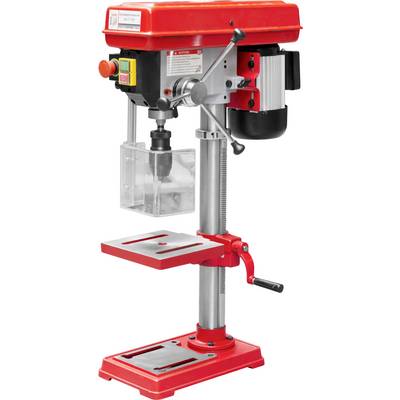

Holzmann Maschinen SB 4115N Box column drill press 400 W 230 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 217.65 / piece)
€ 217.65
plus VAT.
Only 8 Piece(s) available
Highlights & Details
Stand drills SB4115 N
- 400 W
- 12-speed
- max. Boring Ø (steel) 16 mm
- Max. drilling depth 60 mm
Technical specifications
- Power: (S1/S6) 400/600 W
- Product type
Box column drill press
400 W
- Rotational speed range
210 - 2580 U/min
- Transmission type
12-speed
- Nosing
127 mm
- Max. drilling depth
60 mm
- Max. drill diameter
(Steel) 16 mm
- Tool holder
Keyless drill chuck
MK2
- Drill chuck clamping range
1 - 16 mm
- Operating voltage
230 V
- Table length
200 mm
- Table width
200 mm
- Stand area
170 x 160 mm
- Type
SB4115 N
Documents & Downloads
Datasheet
Datasheet 1385515 Holzmann Maschinen SB 4115N Box column drill press 400 W 230 V
User & Safety Instructions
User & Safety Instructions 1385515 Holzmann Maschinen SB 4115N Box column drill press 400 W 230 V
Description
Features
- Aluminum motor manufactured according to IP54
- Bending Rigid Drill column with ground surface
- swivelling drilling table via rack-and-pinion any height adjustable
- Practical Dreiarmhebel with depth scale
- Adjustable Quick-action chuck cover made of Plexiglas
- Depth stop.
Scope of delivery
- Quick-action chuck 1 - 16 mm, B 16.
Hints
This text is machine translated.
