elo Touch Solution 1517L AccuTouch Touchscreen EEC: E (A - G) 38.1 cm (15 inch) 1024 x 768 p 4:3 23 ms VGA, USB, RS232
EAN:
Part number:
Item no:
Number
Total (€ 654.62 / piece)
€ 654.62
plus VAT.

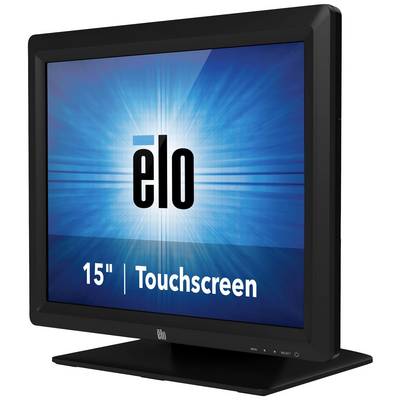

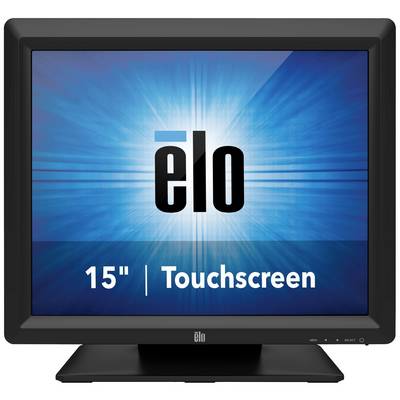

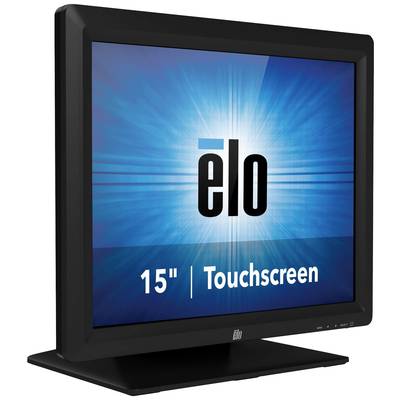

ELO Touch Solution 1517L 15 inch touch screen monitor
Highlights & Details
- Screen size 38.1 cm (15 inch)
- Energy efficiency rating (calc): E (A - G)
- Interfaces: VGA, USB, RS232;Response time: 23 ms;Touchscreen
Technical specifications
- MTBF : 50000 hours
- Product type
Touchscreen
- Image format
4:3
- Response time
23 ms
- Static contrast ratio
800 : 1
- Brightness
240 cd/m²
- Hor. viewing angle
160°
- Vertical viewing angle
150°
- Wall mounting option
75 x 75mm VESA standard
- Factory colour
Black
- Features
Touchscreen
- No. of USB ports
1 x
- No. of VGA ports
1 x
- Interfaces
VGA
USB
RS232
- Width
358 mm
- Height
319 mm
- Depth
197 mm
- Dim
(W x H x D) 358 x 319 x 197 mm
- Weight
4.3 kg
- Power consumption (standby)
1.2 W
- Display type
TFT
- Display size
- 23 inch
E (A - G)
- Display
38.1 cm (15 inch)
- HDR support
No
- OSB languages
English
French
Italian
German
Spanish
Japanese
Chinese (trad.)
Chinese (simplified)
- Power supply (details)
100-240VAC, 50/60Hz
- Touchscreen (display)
Yes
- Resolution (max.)
1024 x 768 p
- Display (cm)
38.1 cm
- Screen size diagonal (cm)
38.1 cm
- Screen size diagonal (inches)
15 inch
- Power consumption (off)
0.4 W
- Power consumption (ON)
10.5 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2581450 elo Touch Solution 1517L AccuTouch Touchscreen EEC: E (A - G) 38.1 cm (15 inch) 1024 x 768 p 4:3 23 ms VGA, USB, RS232
Description
The Elo 1517L standard format touch screen is best equipped for the high demands in public space thanks to its robust, touch-designed design. With its retail-focused features and sleek, modern design, it presents itself as an attractive solution for commercial touch-screen applications. The 1517L is ideal for POS, POI tasks, service switches, interactive presentation of media content and customer loyalty systems. This touch monitor is light and consumes less power thanks to its groundbreaking LED-background lighting in the display, which makes it also considered environmentally friendly.Integrated touch sensorsFour sensor technologies are available for this 15-inch touch screen monitor. AccuTouch® with 5-wire resistance sensors - widely used in the retail and hospitality industries - is characterized by resistance to liquids, food and fat. AccuTouch® (5-wire resistance sensors) and IntelliTouch® (SAW sensors) as well as the IntelliTouch SAW sensor variant in the zero-bezel borderless display achieve excellent optical quality in dry retail and hospitality environments.Compatible with magnetic stripe readerA three-track magnetic stripe reader (MSR) is offered as an option for the 1517L, which can be programd either on HID or keyboard emulation (only via USB). It can be easily installed by the operator. Since no external brackets or attachments are necessary, an elegant, integrated system results.Flexible mountingThe Elo 1517L offers various mounting options for maximum installation flexibility: Wall and stand mounting using standard VESA mounting brackets and table stands for installation on counters and tables. Capped mounting holes in the base plate of the touch monitor ensure theft protection in table installations.
This text is machine translated.
This text is machine translated.
Features
- Slim design with high load design for touch useFlexible and space-saving60% energy saving through LED technologyTouch screen protected against dirt, dust and liquids by sealingDetachable stand and mounting option including VESA, wall and stand mountingSerial USB and RS232 portsTypical power consumption: 12W, internal and optional external power supply
Scope of delivery
- Cable
- Quick guide.
