ElectromechanicsSwitches & ButtonsTilt & Float Switches

Elobau 20101210

A white float switch with a grey cable, used for monitoring liquid levels. Primarily employed in water tanks.

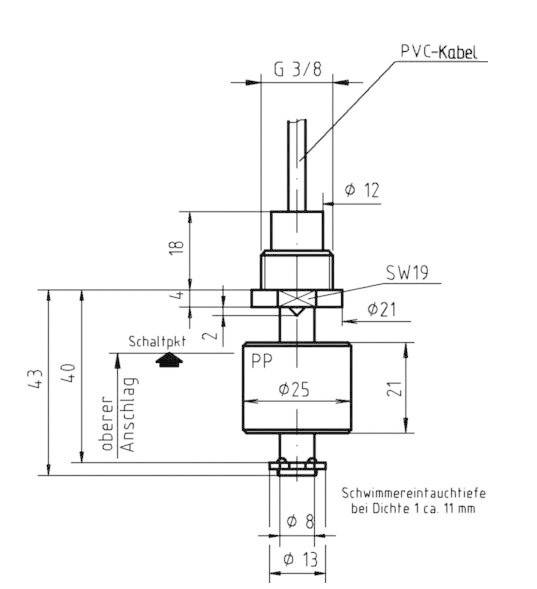

Technical drawing of a float switch with dimensions. Shows connections, switching point, and installation depth at 11 mm density. PVC cable on top.
1/2
Image similar
Product type
Float switch
Contact type
1 maker
Material
Polypropylene
Switching voltage
230 V AC
Switching current (max.)
1 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
26 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 23.18 / piece)
€ 23.18
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Elobau 20101210

Our service for you

Technical specifications

Product type

Float switch

Contact type

1 maker

Material

Polypropylene

Connection

Open end cable

Cable length

1.00 m

Switching voltage

230 V AC

Switching current (max.)

1 A

20 W

20 VA

Min. temperature

-10 °C

Max. temperature

+100 °C

Thread size

G3/8"

Recess diameter

16.7 mm

IP67

RoHS-compliant

Yes

Type

20101210

Documents & Downloads

Datasheet

Datasheet 709970 Elobau 20101210

Description

Resistant to weak inorganic acids, alkalis, alcohol or oils. Switching function can be changed by turning the float.

This text is machine translated.
