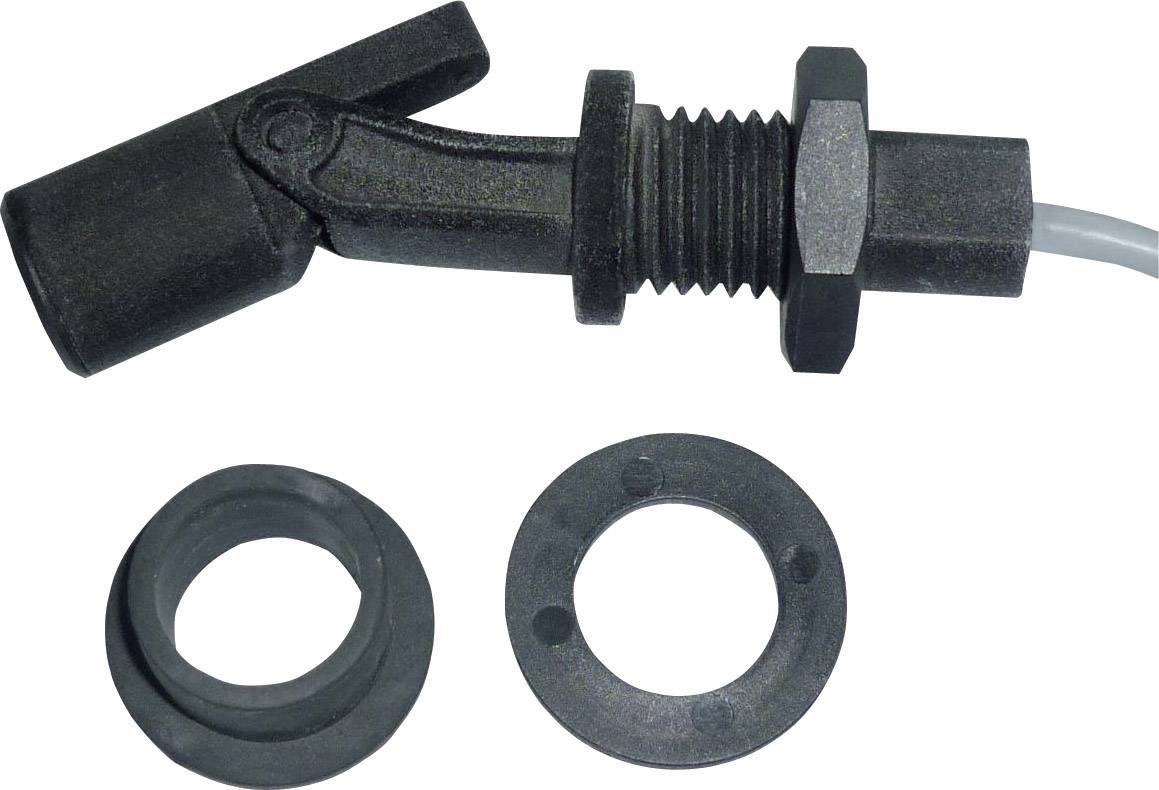

Elobau 204KS14DT1H Float switch 250 V AC 1 A 1 maker, 1 breaker IP67 1 pc(s)
EAN:
Part number:
Item no:
Product type
Float switch
Contact type
1 maker
1 breaker
Material
Polyamide
Switching voltage
250 V AC
Switching current (max.)
1 A
Datasheet (PDF)
80 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 22.87
3
4% = € 1.00
€ 21.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 22.87 / piece)
€
Technical specifications
- Movement range: 40°
- Lever length 62 mm
- Product type
Float switch
- Factory colour
Black
- Contact type
1 maker
1 breaker
- Material
Polyamide
- Connection
Open end cable
- Cable length
1.00 m
- Switching voltage
250 V AC
- Switching current (max.)
1 A
50 W
- Min. temperature
-25 °C
- Max. temperature
+105 °C
- Thread size
M16
- Recess diameter
22 mm
IP67
- Dim
- RoHS-compliant
Yes
- Type
204KS14DT1H
Documents & Downloads
Datasheet
Datasheet 701368 Elobau 204KS14DT1H Float switch 250 V AC 1 A 1 maker, 1 breaker IP67 1 pc(s)
Description
Compact float switch for horizontal installation from the outside through sealing sleeve. Resistant to weak inorganic acids, alkalis, alcohol or oils. Normally open or normally closed function through 180° rotation can be selected freely.
