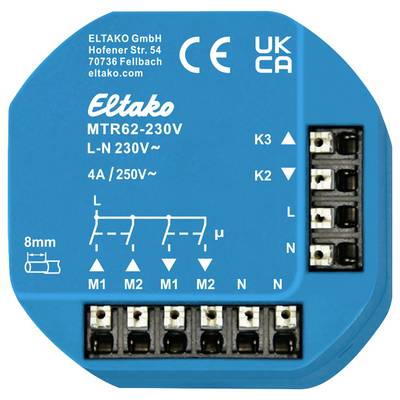

Eltako MTR62-230V Isolation relay Nominal voltage: 230 V Switching current (max.): 4 A 4 makers Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Isolation relay
Contact type
4 makers
Nominal voltage
230 V
Switching voltage (max.)
250 V AC
Datasheet (PDF)
Number
Total (€ 63.86 / piece)
€ 63.86
plus VAT.
Technical specifications
- Packaging type
Piece
- Product type
Isolation relay
- Type
MTR62-230V
- Connection
Jack connector
- Factory colour
Multicolour
- Max. pick-up voltage
230 V AC
- Contact type
4 makers
- Nominal voltage
230 V
- Switching voltage (max.)
250 V AC
- Switching current (max.)
4 A
- Max. switching capacity
1000 VA
- Length
20 mm
- Content
1 pc(s)
- Weight
370 g
- Series
Eltako
- Power supply (LOV)
mains-powered
- Mounting type
Flush mount
230 V
Flush mounted (plaster)
4 A
50-50 Hz
2
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2637493 Eltako MTR62-230V Isolation relay Nominal voltage: 230 V Switching current (max.): 4 A 4 makers Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2637493 Eltako MTR62-230V Isolation relay Nominal voltage: 230 V Switching current (max.): 4 A 4 makers Piece 1 pc(s)
Description
Motor isolator relay, 2+2 NO contact not isolated 4A/250V AC, for two 230V motors. No standby loss. For panel mounting. 49x51mm, 20mm deep. The terminals are plug-in terminals for conductor cross-sections from 0.2mm² to 2.5mm². The MTR is a control relay for controlling one or two shutter and shutter motors with mechanical or electronic limit switches. The tubular motors of shading elements and roller shutters must not be connected directly in parallel under any circumstances, as this will result in reverse voltages and ultimately in the destruction of the motors via the limit switches. Several MTR can be connected in parallel at the inputs. They are suitable for control, for example EGS12Z, EGS61Z, FSB14, FSB61NP AND FJ62NP. Control and switching voltage 230V. Caution! The switching time between the start and stop command must be ≥ 500ms, otherwise it is possible to damage the motor or the cut-off relay (technical Observe the motor data).
