Name: Emko ESD-9950-N.2.20.0.1/02.00/0.0.0.0 Temperature controller Pt100, S, R, K, J 0 up to 50 °C 7 A relay (L x W x H) 110
Brand: Emko
SKU: 1890134
Availability: InStock

Electronic device with digital display '125.0', control knob at the bottom, symbols for temperature intervals and presets.

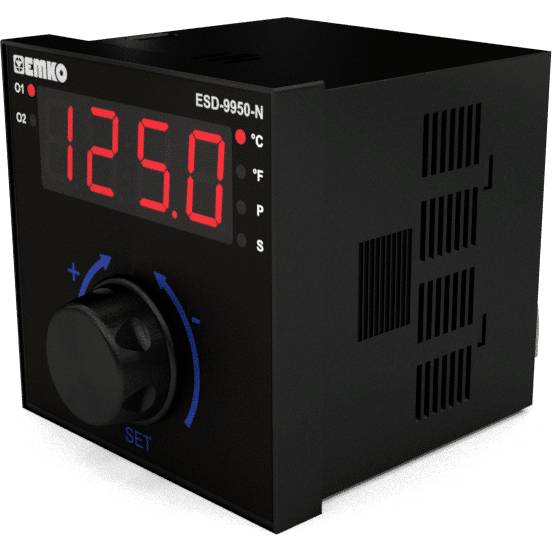

A black digital temperature controller device displays '125.0' in red digits. To the right are symbols for degrees Celsius and Fahrenheit.

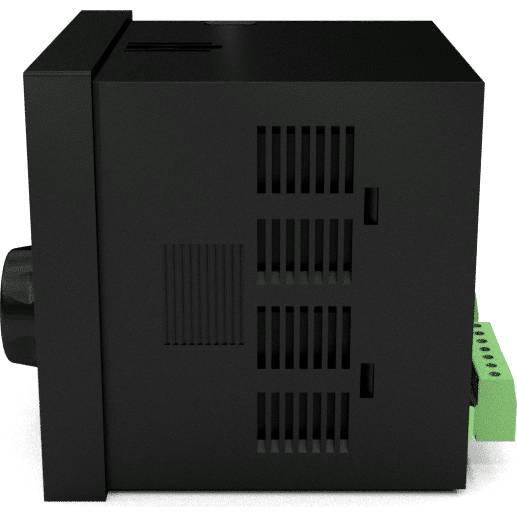

A black, rectangular electric oven with ventilation slots on the sides and green connection terminals.

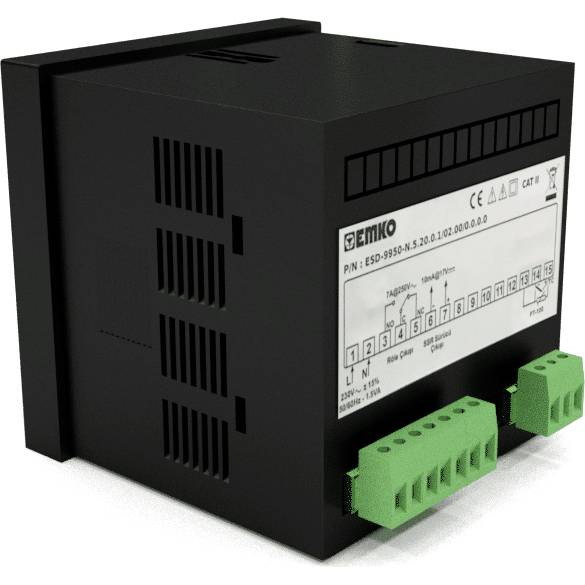

A black electrical control cabinet with green connection terminals. Labelled at the top with technical specifications and logos.

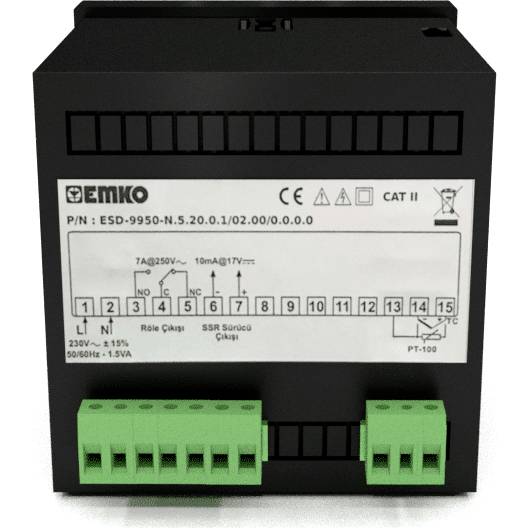

Electronic device with multiple terminal blocks, model number 'ESD-9950'. Displays circuit diagram with technical voltage specifications.

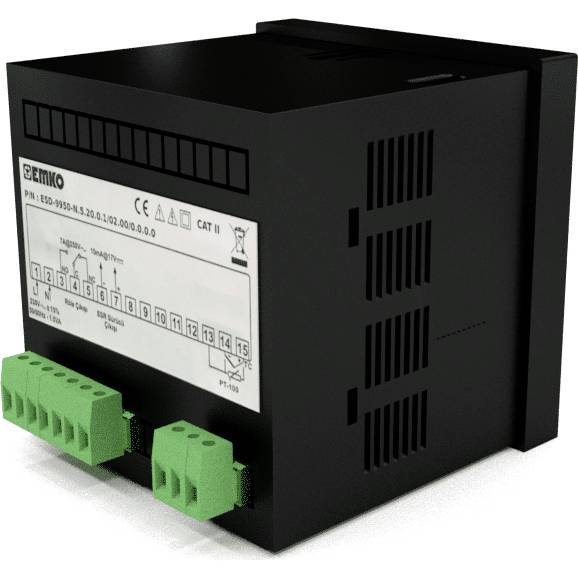

A black electrical device with multiple green ports and a label with technical specifications and symbols on the front.

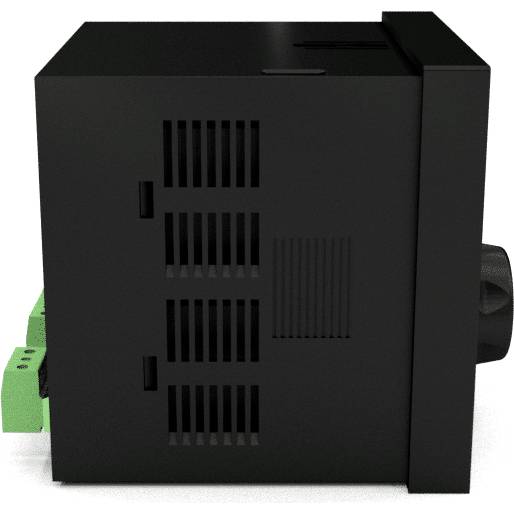

A black, square electronic device with ventilation slots on the side, with green connections partially visible at the back.

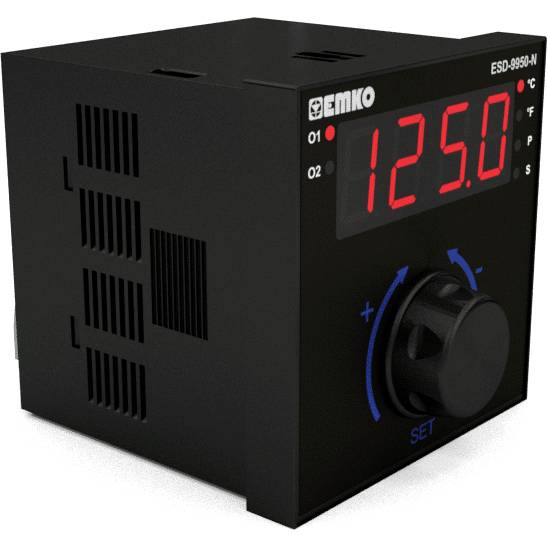

A digital temperature measuring device displaying '125.0' in red digits. Beneath it, a rotary knob with arrow buttons for settings.

1/8

Product type

Temperature controller

Operating voltage

24 V AC

24 V DC

Max. temperature reading

50 °C

Outputs (thermostats)

7 A relay

No. of relay outputs

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 144.99 / piece)

€ 144.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

EMKO ESD-9950-N. 2.20. 0.1/02. 00/0.0.0.0 temperature controller with a dial 24VAC/DC universal sensor input

Rotary knob for temperature and menu settings; universal sensor input for thermocouples and resistance thermometers
Tax Direction 2-point, P, PI, PD and PID
Hysteresis
Setpoint offset
Password protection

Technical specifications

4-digit LED display
Digit height: 16mm
Accuracy ± 0.25%
Switching Outputs: 1 x relay output 7 A/250 VAC and 1x SSR control output 10 mA/17 VDC
Operating temperature 0 °C to +50 °C
Control panel cut-out: 92 x 92 mm.

Product type: Temperature controller

Type: ESD-9950-N.2.20.0.1/02.00/0.0.0.0

Operating voltage: 24 V AC
24 V DC

Reading range: 0 up to 50 °C

Max. temperature reading: 50 °C

Min. temperature reading: 0 °C

Outputs (thermostats): 7 A relay

No. of relay outputs: 1

Dim: (L x W x H) 110 x 96 x 96 mm

Height: 96 mm

Length: 110 mm

Width: 96 mm

: Front: IP65 / connection: IP20

Sensor type: Pt100
S
R
K
J

Manufacturer part #: ESD-9950-N.2.20.0.1/02.00/0.0.0.0

Mounting type: Panel-fit

Weight: 350

Documents & Downloads

Datasheet

Datasheet 1890134 Emko ESD-9950-N.2.20.0.1/02.00/0.0.0.0 Temperature controller Pt100, S, R, K, J 0 up to 50 °C 7 A relay (L x W x H) 110

User & Safety Instructions

User & Safety Instructions 1890134 Emko ESD-9950-N.2.20.0.1/02.00/0.0.0.0 Temperature controller Pt100, S, R, K, J 0 up to 50 °C 7 A relay (L x W x H) 110

Description

EMKO ESD-9950-N. 2.20. 0.1/02. 00/0.0.0.0 is a temperature controller with a dial, which by simple operation and good readability of the temperature display. The dial is used in addition to adjusting the temperature set point can also be used as control center to the settings. By pressing the rotary control is the menu opens and the settings. With the universal sensor input for thermocouples and resistance thermometers can almost all popular types of sensors can be connected. The connected sensor type is simply placed in the settings selected.
