Name: Emko ESM-9920.5.20.0.1/01.02/0.0.0.0 Bang-bang, P, PI, PD, PID Temperature controller Pt100, J, K, R, S, T -200 up to 17
Brand: Emko
SKU: 2352518
Availability: InStock

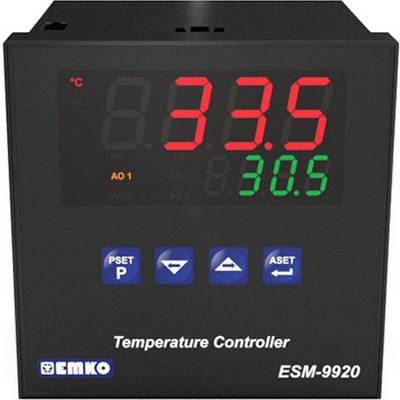

Temperature controller 'EMKO ESM-9920' displays 33.5°C in red digits. Three blue buttons below: 'PSET P', 'Up arrow', 'ASET'.

Temperature Controller ESM-9920 with digital display. Showing 33.5°C and 30.5°C. Settings and navigation buttons on the front panel.

Black electronic enclosure with ventilation slots and green circuit board connector on the rear.

Black electronic temperature switch with green connection terminals and technical specifications displayed on the front.

Temperature controller with digital display showing 33.5°C and 30.5°C. 'PSET' and 'ASET' buttons visible. Model ESM-9920.

A black electric control unit with green connection terminals on the front. The manufacturer name 'Emko' is visible.

A black electronic device with green ports. Text on the front: 'P/N: ESM-9920, CE, CAT II'.

1/7

Product type

Temperature controller

Thermostat type

Bang-bang, P, PI, PD, PID

Operating voltage

230 V AC

Max. temperature reading

1700 °C

Outputs (thermostats)

5 A relay

SSR

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

12 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 144.99 / piece)

€ 144.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Emko ESM-9920.5.20.0.1/01.02/0.0.0.0 Bang-bang, P, PI, PD, PID Temperature controller

4-digit process display
4-digit setpoint display
Universal sensor input for Pt100, J, K, R, S, T
2-point, P, PI, PD or PID control
Heating or cooling function can be selected
Control output relay 5 A.
Control output SSR
Alarm output relay 5 A.
PID self-optimization function
Password protection for program settings
Adjustable temperature offset values
Hysteresis

Technical specifications

Product type: Temperature controller

Type: ESM-9920.5.20.0.1/01.02/0.0.0.0

Thermostat type: Bang-bang, P, PI, PD, PID

Operating voltage: 230 V AC

Reading range: -200 up to 1700 °C

Max. temperature reading: 1700 °C

Min. temperature reading: -200 °C

Outputs (thermostats): 5 A relay
SSR

No. of relay outputs: 3

Dim: (L x W x H) 96 x 96 x 96 mm

Factory colour: Black

Height: 96 mm

Length: 96 mm

Width: 96 mm

: Front: IP65 / connection: IP20

Sensor type: Pt100
J
K
R
S
T

Manufacturer part #: ESM-9920.5.20.0.1/01.02/0.0.0.0

Recess depth: 84 mm

Mounting type: Recess-mount

Sensor type: PT00||J||K||R||S||T

Weight: 340 g

Documents & Downloads

Datasheet

Datasheet 2352518 Emko ESM-9920.5.20.0.1/01.02/0.0.0.0 Bang-bang, P, PI, PD, PID Temperature controller Pt100, J, K, R, S, T -200 up to 17

User & Safety Instructions

User & Safety Instructions 2352518 Emko ESM-9920.5.20.0.1/01.02/0.0.0.0 Bang-bang, P, PI, PD, PID Temperature controller Pt100, J, K, R, S, T -200 up to 17

Description

The PID temperature controller ESM-9920 can be used with the universal process control input, control outputs and selectable alarm functions for many applications. The control type can be set to ON-OFF, P, PI, PD or PID. The PID temperature controller also has a PID self-optimization function Self Tune (step feedback). The control outputs can be programd for heating, cooling and alarm functions.
